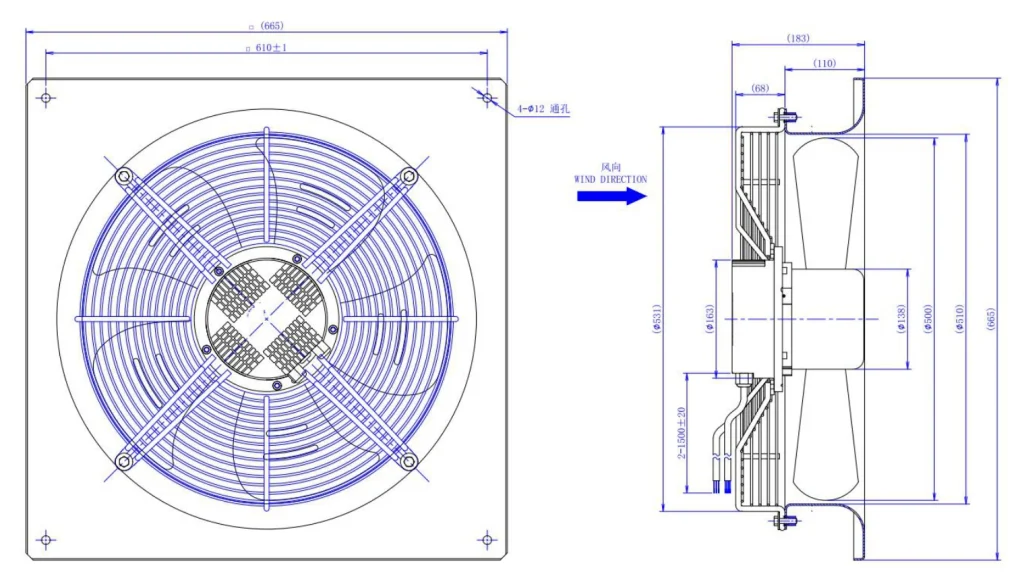

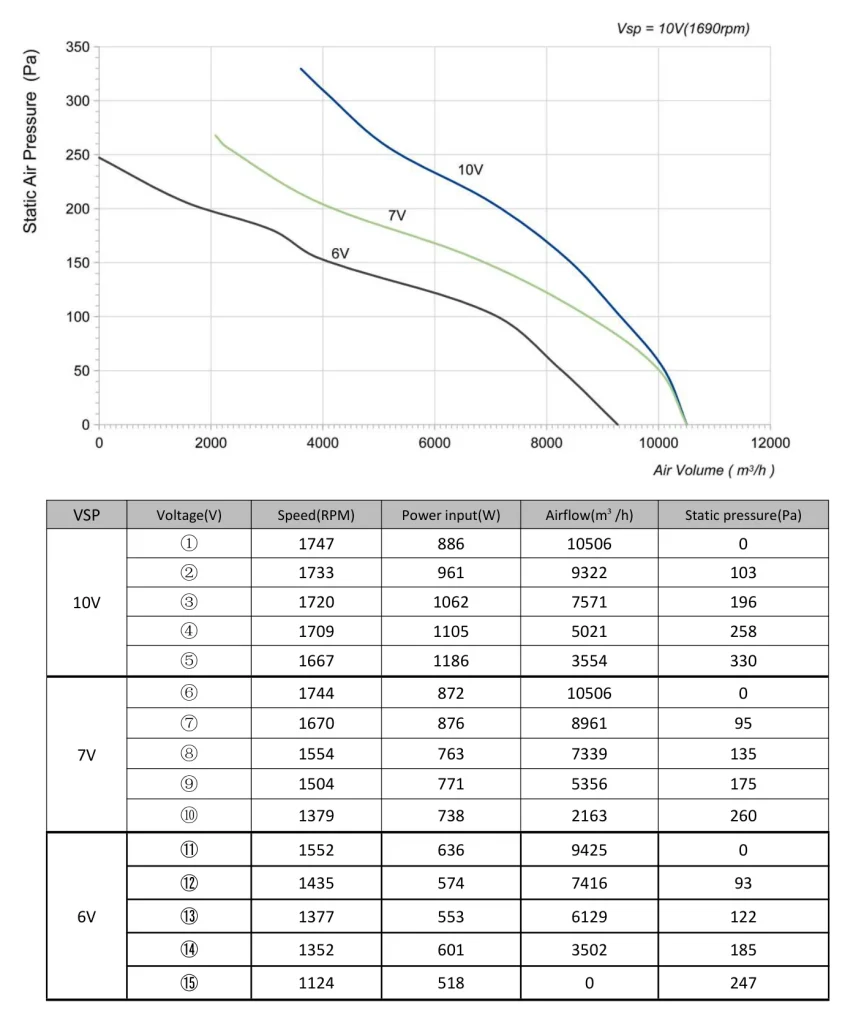

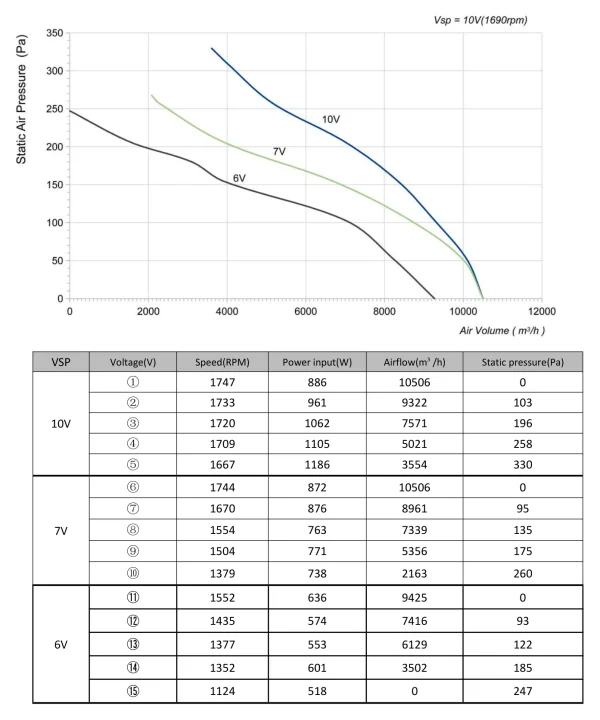

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ500 mm19.7 in
- Max airflow10,506 m³/h6,184 CFM
- Max static pressure330 Pa1.32 in. wg
- Voltage380 V
- Speed1,690 rpm
- Input power850 W1.14 hp
- Noise78 dB(A)

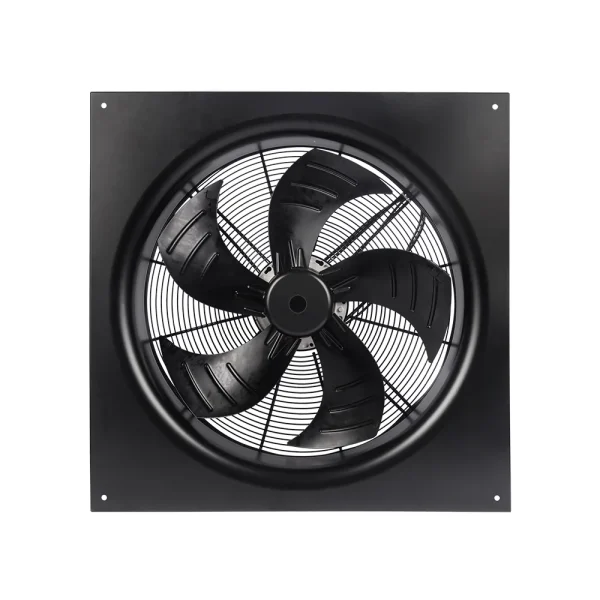

LWAE3G500TT-5MKW-06 EC Axial Fan Ø500 mm
Ø500 mm | EC | Max airflow 10,506 m³/h | Max static pressure 330 Pa | 78 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWAE3G500TT-5MKW-06 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø500 mm, rated 380 V EC, maximum airflow 10,506 m³/h, maximum static pressure 330 Pa, noise 78 dB(A), input power 850 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G500TT-5MKW-06 |
|---|---|
| Series | LWAE3G500 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 304 ~ 456 V |
| Frequency | 50/60 Hz |
| Current | 1.5 A |
| Input power | 850 W |
| Speed | 1,690 rpm |
| Max. airflow | 10,506 m³/h |
| Max. airflow (CFM) | 6,254 CFM |
| Max. static pressure | 330 Pa |
| Noise | 78 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 30 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø500 mm |
| Impeller material | Sheet steel ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |

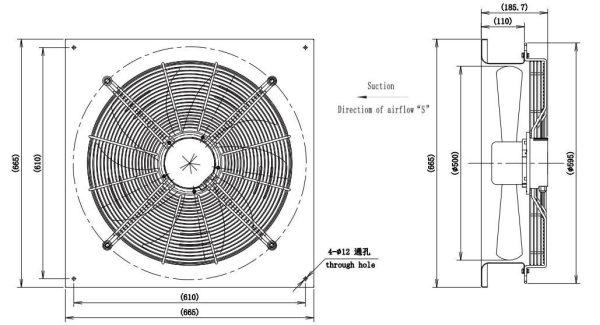

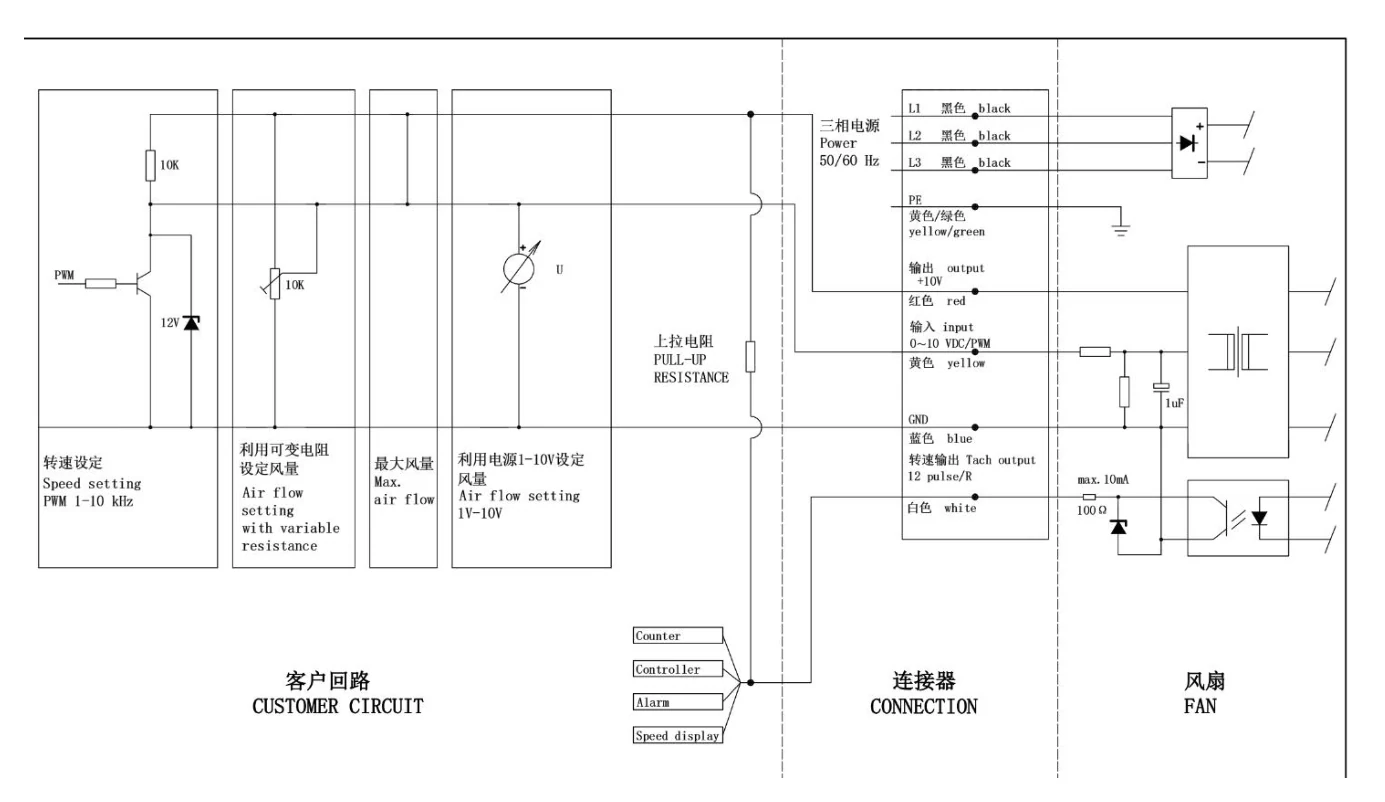

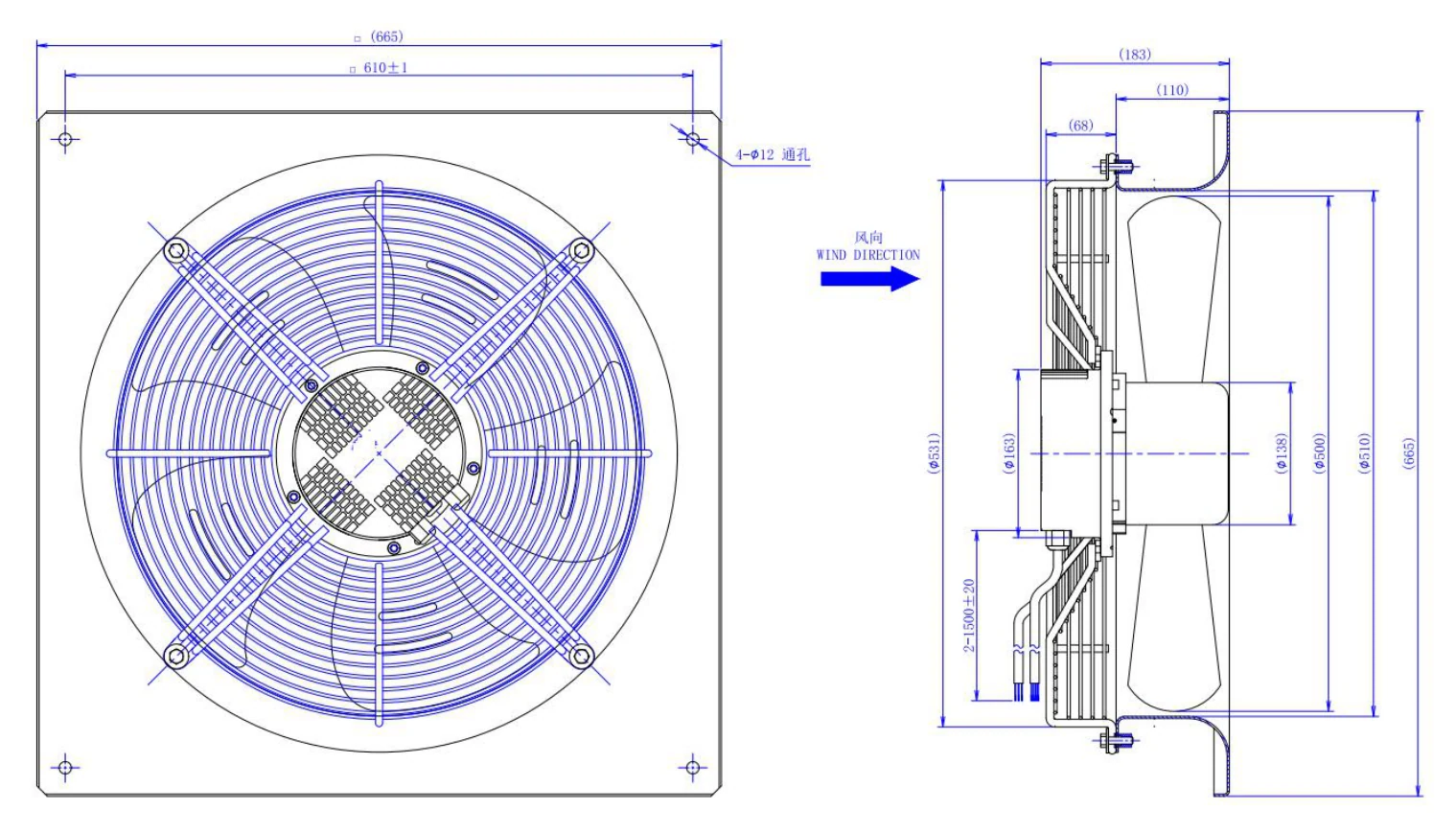

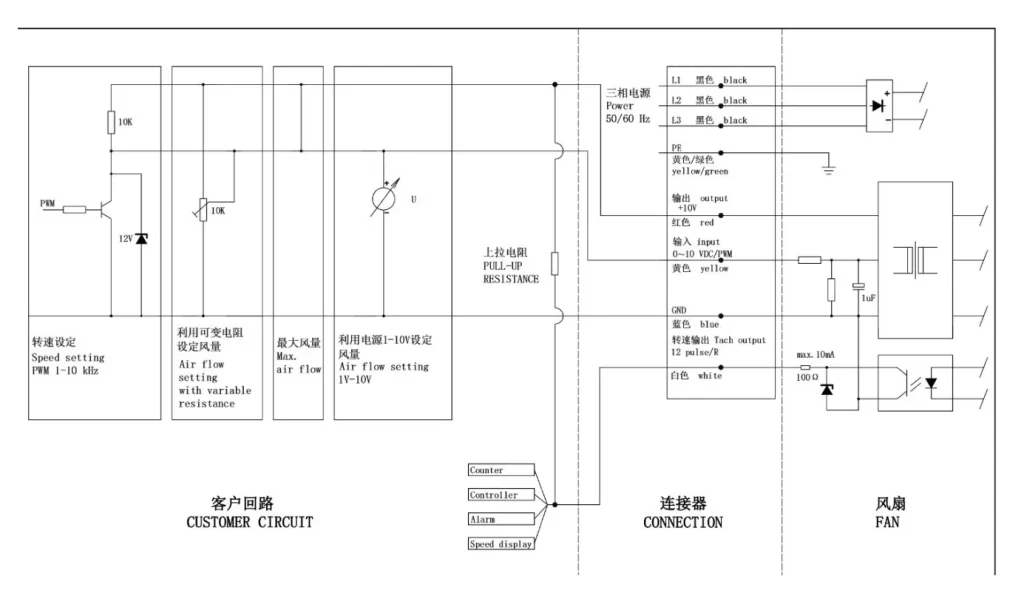

| Speed control | RS485 |
| Speed feedback | Tach output: 12 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V. |
| Auxiliary output | Output 10VDC, Max Current 10 mA |
| Communication | LWRS485-01 2.0 |
| Protection functions | Over-temperature protection, Over-current protection, Locked-rotor protection’ |
| Soft start | Delay time <30 seconds to full speed |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø500 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G500TT-5MKW-06 this model | 10,506 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | |
| LWAE3G500SS-5PKW-15 | 5,900 m³/h | see curve | 900 rpm | 200 W | 56 dB(A) | 230 V | View |
| LWBE3G500-138PT-08 | 8,137 m³/h | 464 Pa | 1,100 rpm | 870 W | 71 dB(A) | 400 V | View |
| LWBE3G500-138NT-13 | 8,137 m³/h | 464 Pa | 1,100 rpm | 870 W | 71 dB(A) | 400 V | View |
| LWBE3G500-188PT-07 | 10,305 m³/h | 903 Pa | 1,705 rpm | 1,900 W | — | 400 V | View |
| LWBE3G500-188NT-14 | 10,305 m³/h | 903 Pa | 1,705 rpm | 1,900 W | 72 dB(A) | 400 V | View |
| LWAE3G500TT-5MNW-02 | 10,506 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G500TT-5MEW-04 | 10,506 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G500TS-5MNW-01 | 10,506 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWBE3G500-188PT-02 | 12,243 m³/h | 1,265 Pa | 2,000 rpm | 3,160 W | — | 400 V | View |
| LWBE3G500-188NT-09 | 12,243 m³/h | 1,265 Pa | 2,000 rpm | 3,160 W | 78 dB(A) | 400 V | View |
| LWBE3G500-188PT-05 | 13,472 m³/h | 1,541 Pa | 2,200 rpm | 4,200 W | 88 dB(A) | 400 V | View |
| LWBE3G500-188NT-10 | 13,472 m³/h | 1,541 Pa | 2,200 rpm | 4,200 W | 66 dB(A) | 400 V | View |
| LWBE3G500-188PT-04 | 14,214 m³/h | 886 Pa | 1,800 rpm | 3,000 W | 89 dB(A) | 400 V | View |
| LWBE3G500-188NT-08 | 14,214 m³/h | 886 Pa | 1,800 rpm | 3,000 W | 89 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
