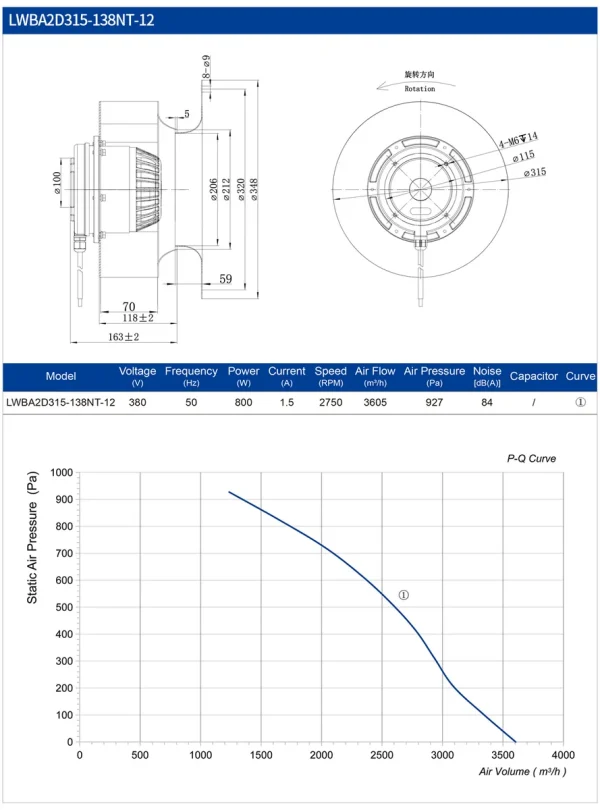

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ315 mm
- Max airflow3,605 m³/h
- Max static pressure927 Pa
- Voltage380 V
- Speed2,750 rpm
- Input power800 W
- Noise84 dB(A)

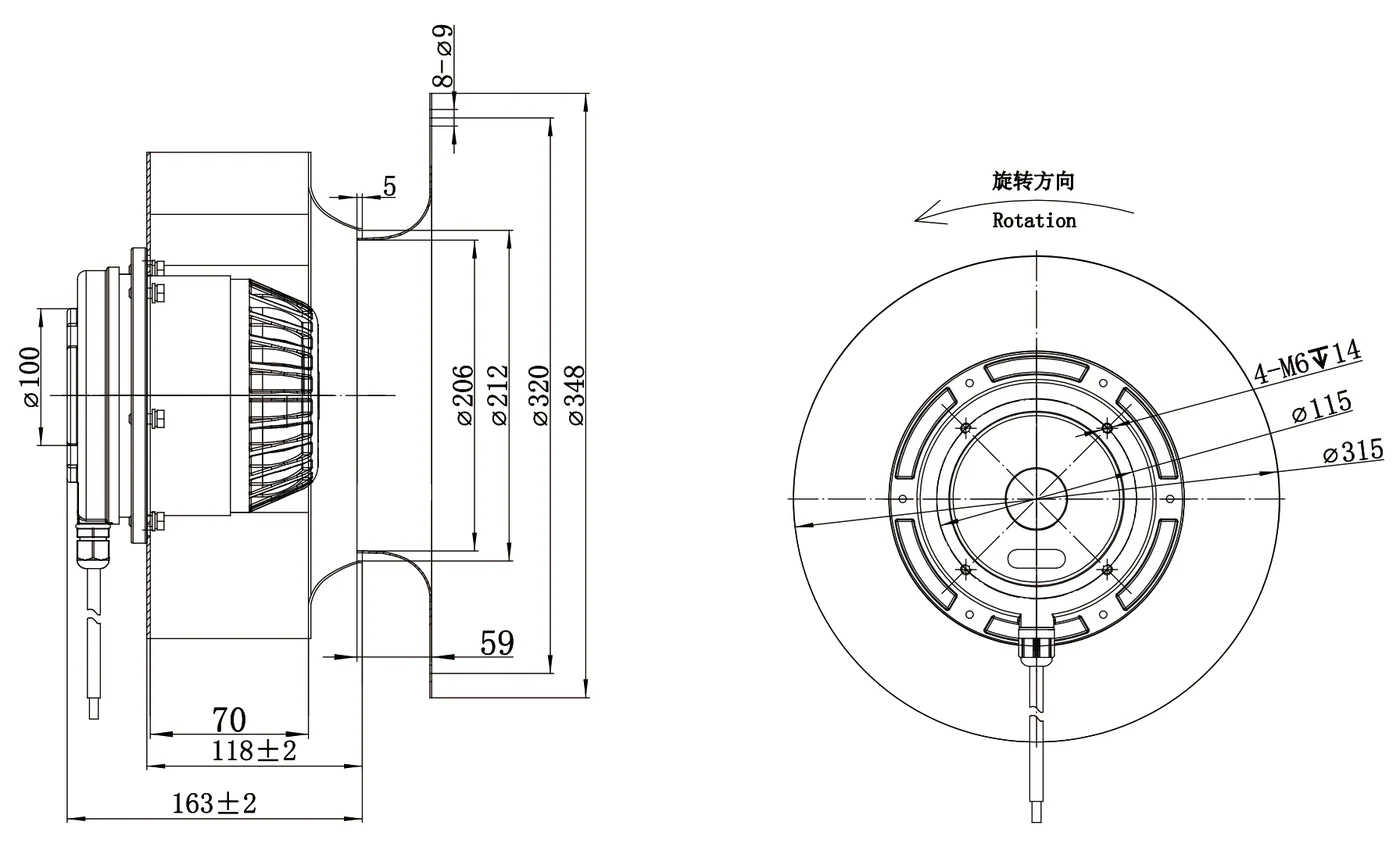

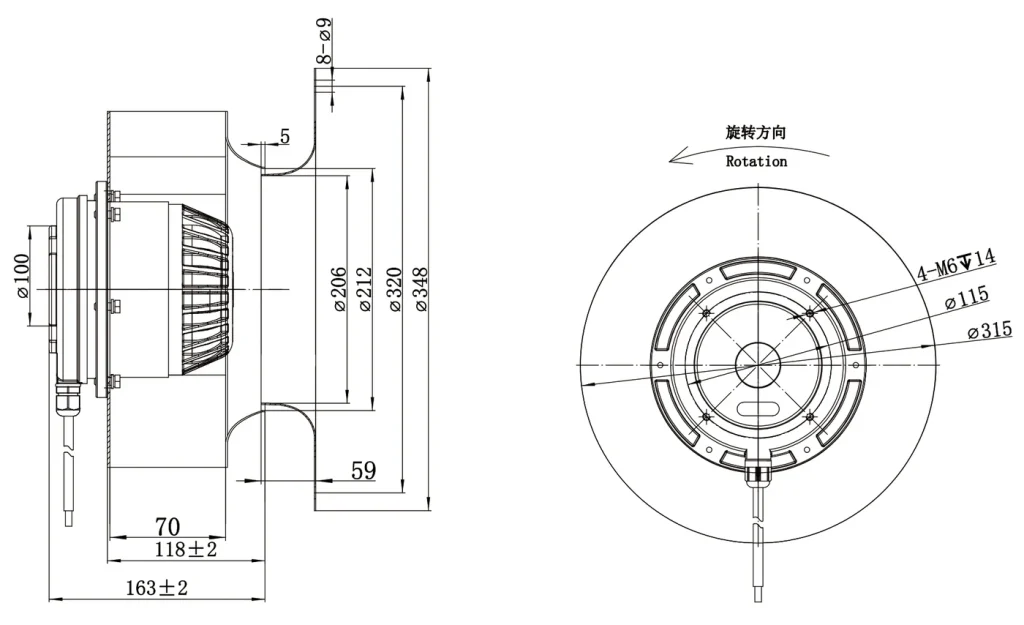

LWBA2D315-138NT-12 AC Backward Curved Centrifugal Fan Ø315 mm
Ø315 mm | AC | Max airflow 3,605 m³/h | Max static pressure 927 Pa | 84 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBA2D315-138NT-12
PDFDatasheet · 2 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA2D315-138NT-12 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø315 mm, rated 380 V AC, maximum airflow 3,605 m³/h, maximum static pressure 927 Pa, noise 84 dB(A), input power 800 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA2D315-138NT-12 |
|---|---|
| Series | LWBA2D315 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 1.5 A |
| Input power | 800 W |
| Speed | 2,750 rpm |
| Max. airflow | 3,605 m³/h |
| Max. static pressure | 927 Pa |
| Noise | 84 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø315 mm |
| Rotor diameter | 138 |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2D315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø315 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA2D315-138NT-12 this model | 3,605 m³/h | 927 Pa | 2,750 rpm | 800 W | 84 dB(A) | 380 V | |
| LWDA-315S-MBN-02 | 1,680 m³/h | 593 Pa | 2,520 rpm | 220 W | 80 dB(A) | 230 V | View |
| LWBA4E315-102NS-19 | 1,859 m³/h | 294 Pa | 1,390 rpm | 116 W | 67.4 dB(A) | 230 V | View |
| LWBA4E315-102NS-18 | 2,079 m³/h | 399 Pa | 1,550 rpm | 153 W | 69.6 dB(A) | 230 V | View |
| LWEA315S(T)M-157E | 2,273 m³/h | 74 Pa | 1,450 rpm | 250 W | — | 220 V | View |
| LWBA4D315-138NT-15 | 2,318 m³/h | 371 Pa | 1,450 rpm | 220 W | 64 dB(A) | 380 V | View |
| LWDA-315(12.6'')S-PWN-05 | 2,500 m³/h | 450 Pa | 2,500 rpm | 320 W | 55 dB(A) | 230 V | View |
| LWBA4D315-138NT-16 | 2,781 m³/h | 515 Pa | 1,650 rpm | 300 W | 68 dB(A) | 380 V | View |
| LWFA6D315-138NT-03 | 2,987 m³/h | 249.26 Pa | 940 rpm | 780 W | 68 dB(A) | 380 V | View |
| LWMFAF315-01 | 3,300 m³/h | 1,050 Pa | — | — | 87 dB(A) | 380 V | View |
| LWFA6E315-138NS-04 | 3,605 m³/h | 249.26 Pa | 870 rpm | 720 W | 68 dB(A) | 220 V | View |
| LWBA2D315-188NT-17 | 4,120 m³/h | 1,082 Pa | 2,650 rpm | 1,300 W | 85 dB(A) | 380 V | View |
| LWFA4D315-188NT-01 | 4,328 m³/h | 576.8 Pa | 1,360 rpm | 2,200 W | 80 dB(A) | 380 V | View |
| LWFA4E315-188NS-02 | 4,429 m³/h | 618 Pa | 1,360 rpm | 2,300 W | 80 dB(A) | 220 V | View |
| LWEA315S(T)M-158E | 4,545 m³/h | 373 Pa | 2,900 rpm | 370 W | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
