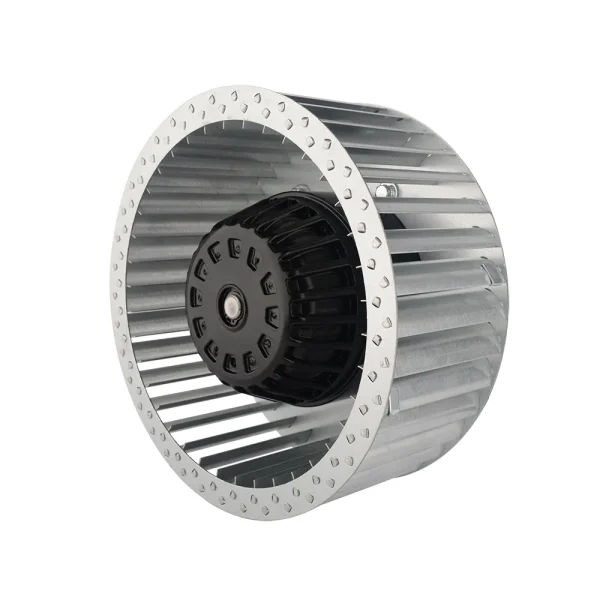

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ315 mm12.4 in
- Max airflow4,328 m³/h2,547 CFM
- Max static pressure576.8 Pa2.32 in. wg
- Voltage380 V
- Speed1,360 rpm
- Input power2,200 W2.95 hp
- Noise80 dB(A)
LWFA4D315-188NT-01 AC Forward Curved Centrifugal Fan Ø315 mm
Ø315 mm | AC | Max airflow 4,328 m³/h | Max static pressure 576.8 Pa | 80 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

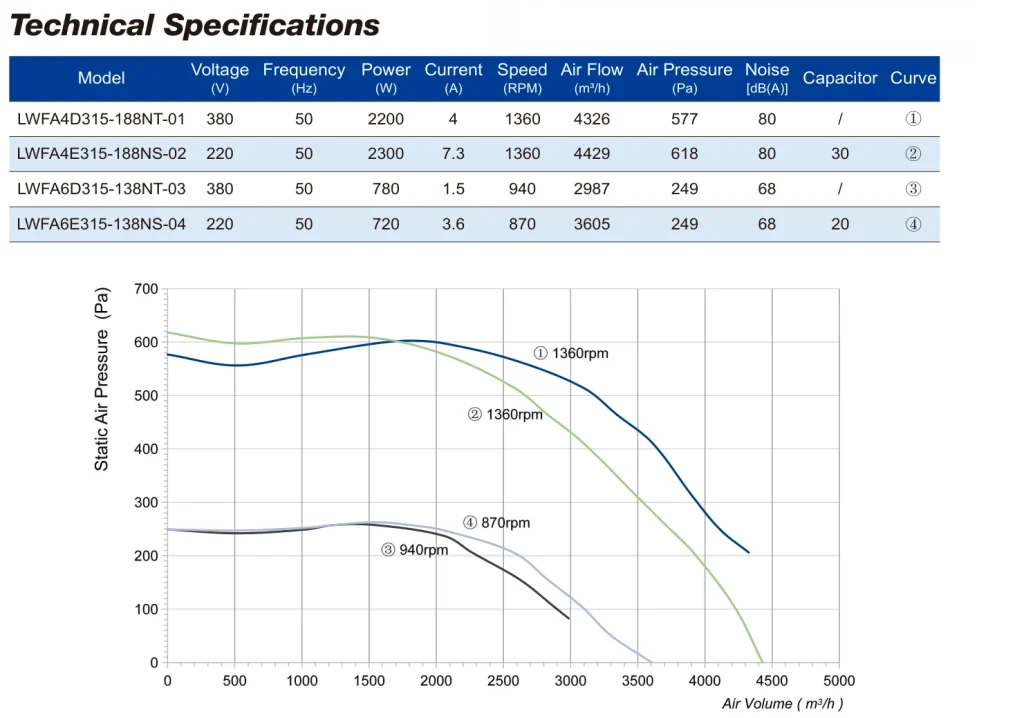

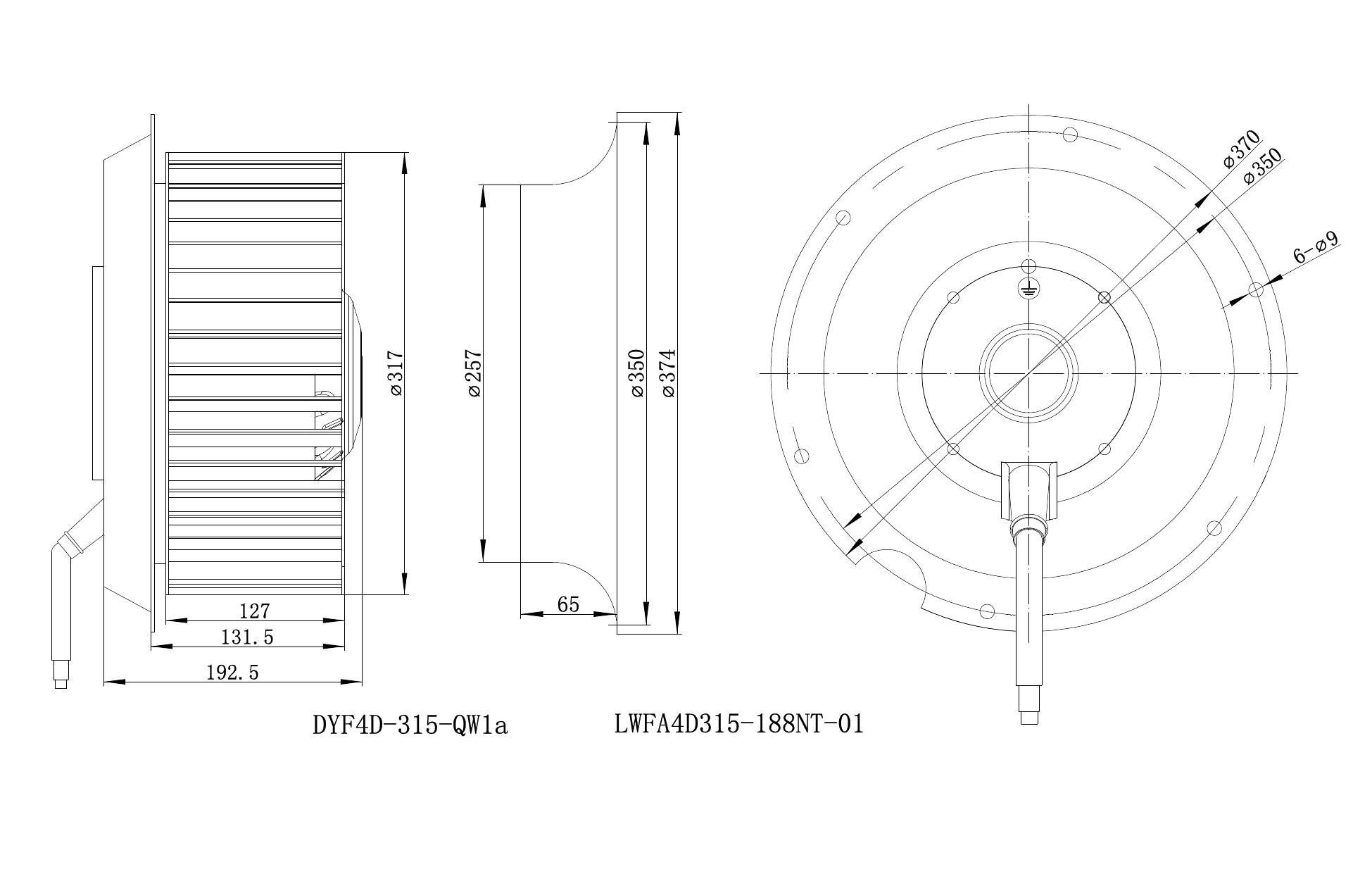

Drawing & Curve LWFA4D315-188NT-01
Files for LWFA4D315-188NT-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA4D315-188NT-01
LWFA4D315-188NT-01 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø315 mm, rated 380 V AC, maximum airflow 4,328 m³/h, maximum static pressure 576.8 Pa, noise 80 dB(A), input power 2,200 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA4D315-188NT-01 |
|---|---|
| Series | LWFA4D315 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 4 A |
| Input power | 2,200 W |
| Speed | 1,360 rpm |
| Max. airflow | 4,328 m³/h |
| Max. static pressure | 576.8 Pa |
| Noise | 80 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Impeller diameter | Ø315 mm |
| Rotor diameter | 188 mm |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA4D315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
