ImpellerØ180 mm7.1 in
Max airflow762 m³/h448 CFM
Max static pressure700 Pa2.81 in. wg
Voltage310 V
Speed1,600 rpm
Input power180 W
Noise65 dB(A)

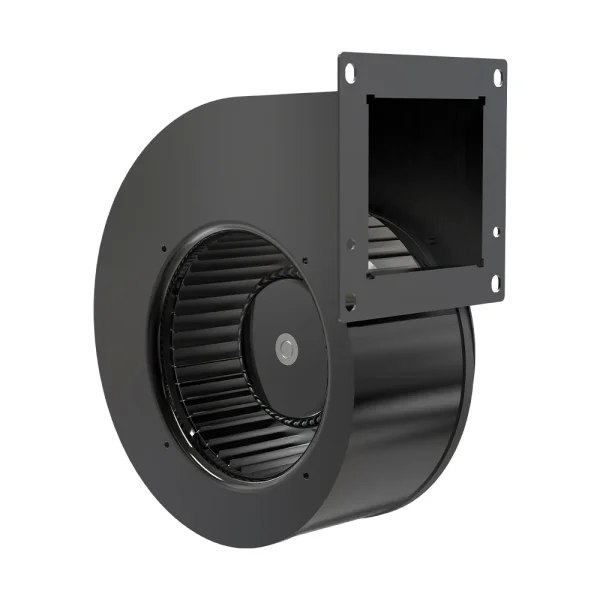

LWFD3G180-092SZ-01 DC Single Inlet Forward Centrifugal Blower Ø180 mm

Ø180 mm | DC | Max airflow 762 m³/h | Max static pressure 700 Pa | 65 dB(A)

SKU: LWFD3G180-092SZ-01 Categories: Centrifugal Fans, Impeller Ø160–315 mm, Single Inlet Forward Curved Blowers

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWFD3G180-092SZ-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWFD3G180-092SZ-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

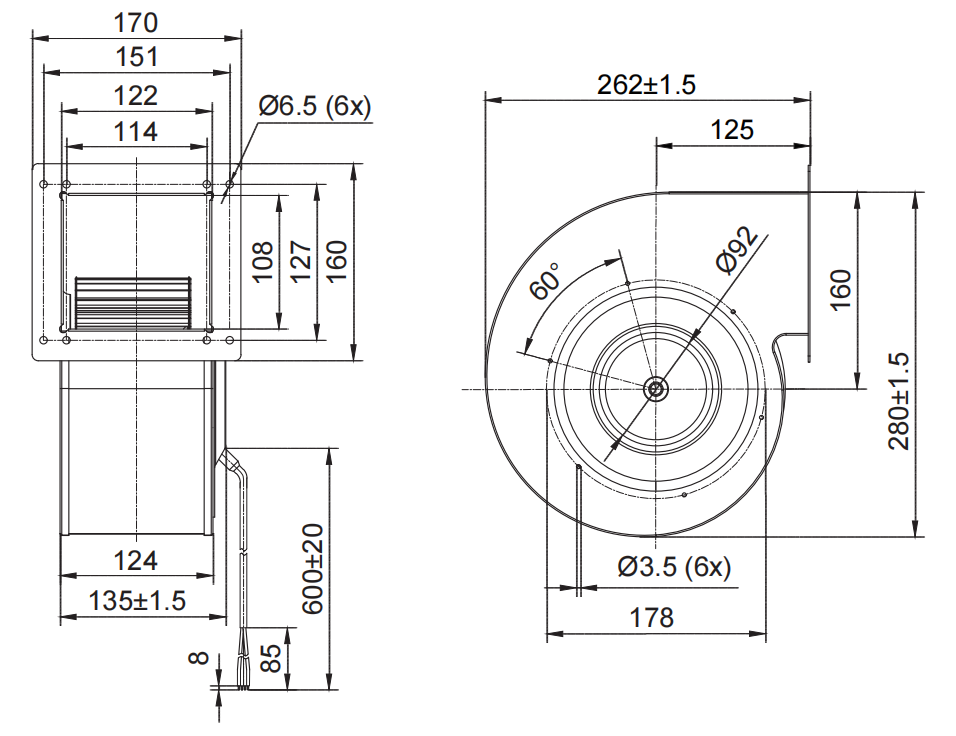

LWFD3G180-092SZ-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

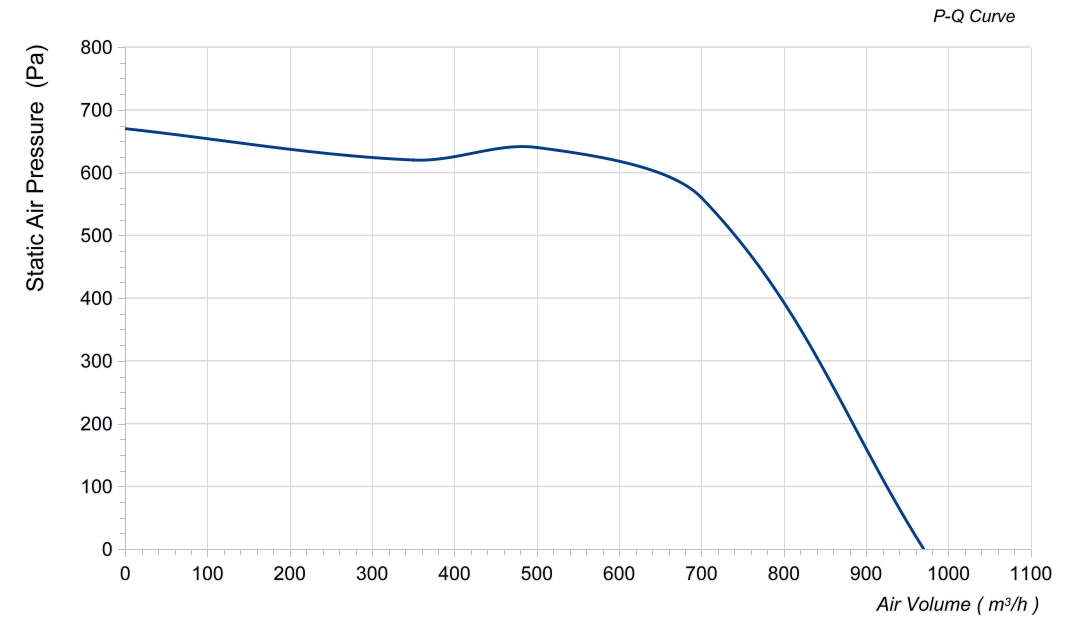

LWFD3G180-092SZ-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Downloads for LWFD3G180-092SZ-01

PDFDatasheet DOCXDatasheet · 487 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFD3G180-092SZ-01 is a LONGWELL DC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø180 mm, rated 310 V DC, maximum airflow 762 m³/h, maximum static pressure 700 Pa, noise 65 dB(A), input power 180 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD3G180-092SZ-01
Series	LWFD3G180
Motor type	DC
Rated voltage	310 V
Current	0.58 A
Input power	180 W
Speed	1,600 rpm
Max. airflow	762 m³/h
Max. airflow (CFM)	454 CFM
Max. static pressure	700 Pa
Noise	65 dB(A)
Ambient temperature	-20 ~ 60 °C
Impeller diameter	Ø180 mm
Rotor diameter	92
Impeller material	Plastic PA66
Protection class	IP44
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFD3G180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø180 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFD3G180-092SZ-01 this model	762 m³/h	700 Pa	1,600 rpm	180 W	65 dB(A)	310 V
LWFD3G180-092SH-01	618 m³/h	618 Pa	1,250 rpm	90 W	67 dB(A)	48 V	View
LWFD3G180-092SM-01	618 m³/h	618 Pa	1,250 rpm	90 W	67 dB(A)	24 V	View
