ImpellerØ400 mm15.7 in
Max airflow4,032 m³/h2,373 CFM
Voltage110-120 V
Speed2,800 rpm
Input power1,200 W1.61 hp
Noise81 dB(A)

LWDE-400 (16″)U-MWN-01 EC Mixed Flow Fan Ø400 mm

Ø400 mm | EC | Max airflow 4,032 m³/h | 81 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWDE-400 (16")U-MWN-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWDE-400 (16")U-MWN-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

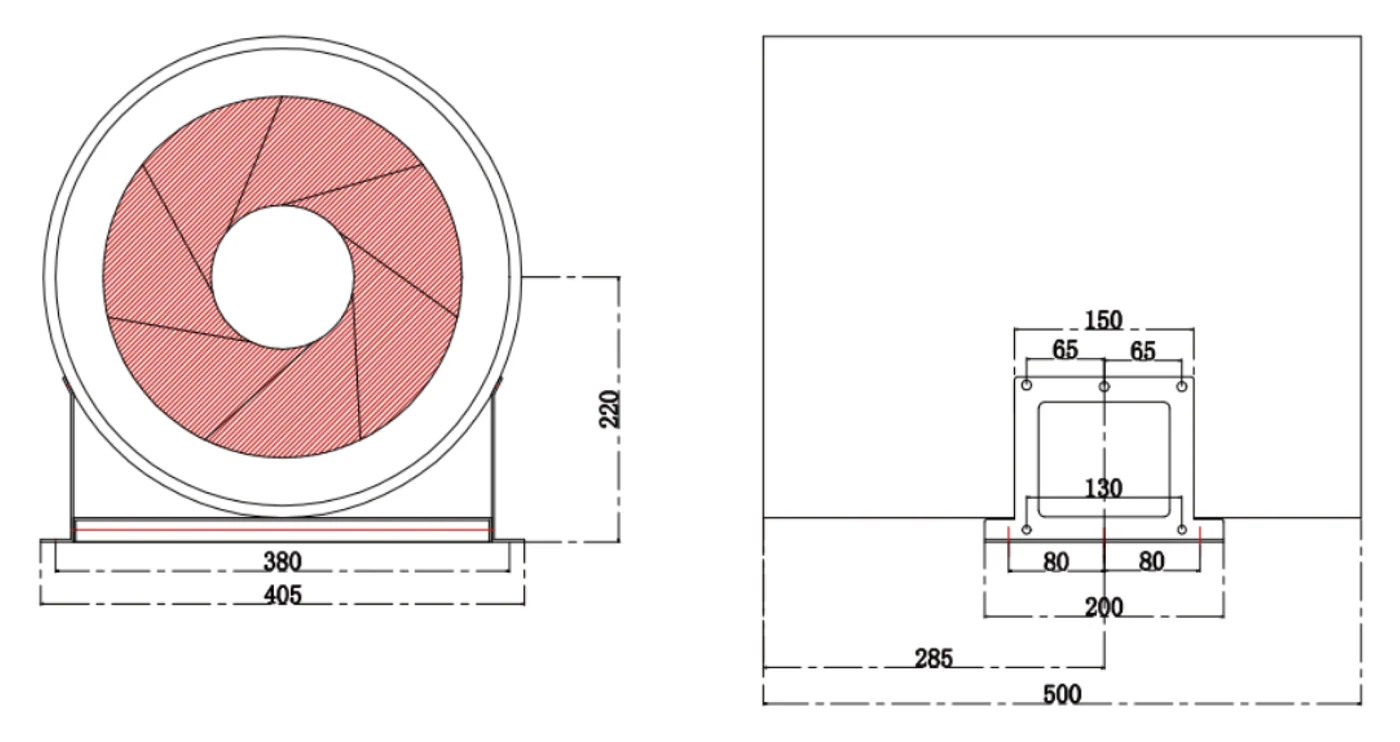

LWDE-400 (16")U-MWN-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDE-400 (16")U-MWN-01 is a LONGWELL EC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø400 mm, rated 110-120 V EC, maximum airflow 4,032 m³/h, noise 81 dB(A), input power 1,200 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE-400 (16")U-MWN-01
Series	LWDE400
Motor type	EC
Phase	1-phase
Rated voltage	110-120 V
Frequency	60 Hz
Input power	1,200 W
Speed	2,800 rpm
Max. airflow	4,032 m³/h
Noise	81 dB(A)
Impeller diameter	Ø400 mm
Inlet diameter	400mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø400 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDE-400 (16")U-MWN-01 this model	4,032 m³/h	see curve	2,800 rpm	1,200 W	81 dB(A)	110-120 V
LWBE3G400-102PS-11	3,554 m³/h	546 Pa	1,460 rpm	300 W	76 dB(A)	230 V	View
LWBE3G400-102NS-16	3,554 m³/h	546 Pa	1,460 rpm	300 W	76 dB(A)	230 V	View
LWBE3G400-102PS-01	3,914 m³/h	556 Pa	1,430 rpm	330 W	70 dB(A)	230 V	View
LWDE-400 (16")U-MWN-03	4,032 m³/h	see curve	2,800 rpm	1,200 W	70 dB(A)	110-120 V	View
LWBE3G400-102PS-09	4,463 m³/h	420 Pa	1,250 rpm	297 W	—	230 V	View
LWBE3G400-102NS-15	5,476 m³/h	600 Pa	1,520 rpm	500 W	68 dB(A)	230 V	View
LWBE3G400-102PS-10	5,615 m³/h	622 Pa	1,520 rpm	500 W	—	230 V	View
LWFE3G400-102PS-02	6,489 m³/h	978.5 Pa	1,800 rpm	700 W	85 dB(A)	230 V	View
LWDE-400 (16")S-MWN-02	6,850 m³/h	see curve	2,800 rpm	1,200 W	81 dB(A)	220-240 V	View
LWDE-400 (16")S-MWN-04	6,850 m³/h	see curve	2,800 rpm	1,200 W	70 dB(A)	220-240 V	View
LWBE3G400-138PT-04	7,459 m³/h	840 Pa	2,060 rpm	1,100 W	77 dB(A)	400 V	View
LWBE3G400-138NT-12	7,459 m³/h	840 Pa	1,100 rpm	1,480 W	71 dB(A)	400 V	View
LWBE3G400-188PT-07	9,682 m³/h	1,627 Pa	2,650 rpm	2,060 W	84 dB(A)	400 V	View
LWBE3G400-188NT-17	9,682 m³/h	1,627 Pa	2,650 rpm	2,060 W	84 dB(A)	400 V	View
