Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ315 mm12.4 in
- Max airflow1,133 m³/h667 CFM
- Max static pressure185 Pa0.74 in. wg
- Voltage230 V
- Speed1,050 rpm
- Input power85 W
- Noise60 dB(A)
LWBA6E315-102NS-08 AC Backward Curved Centrifugal Fan Ø315 mm
Ø315 mm | AC | Max airflow 1,133 m³/h | Max static pressure 185 Pa | 60 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Performance curve (P-Q) LWBA6E315-102NS-08
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

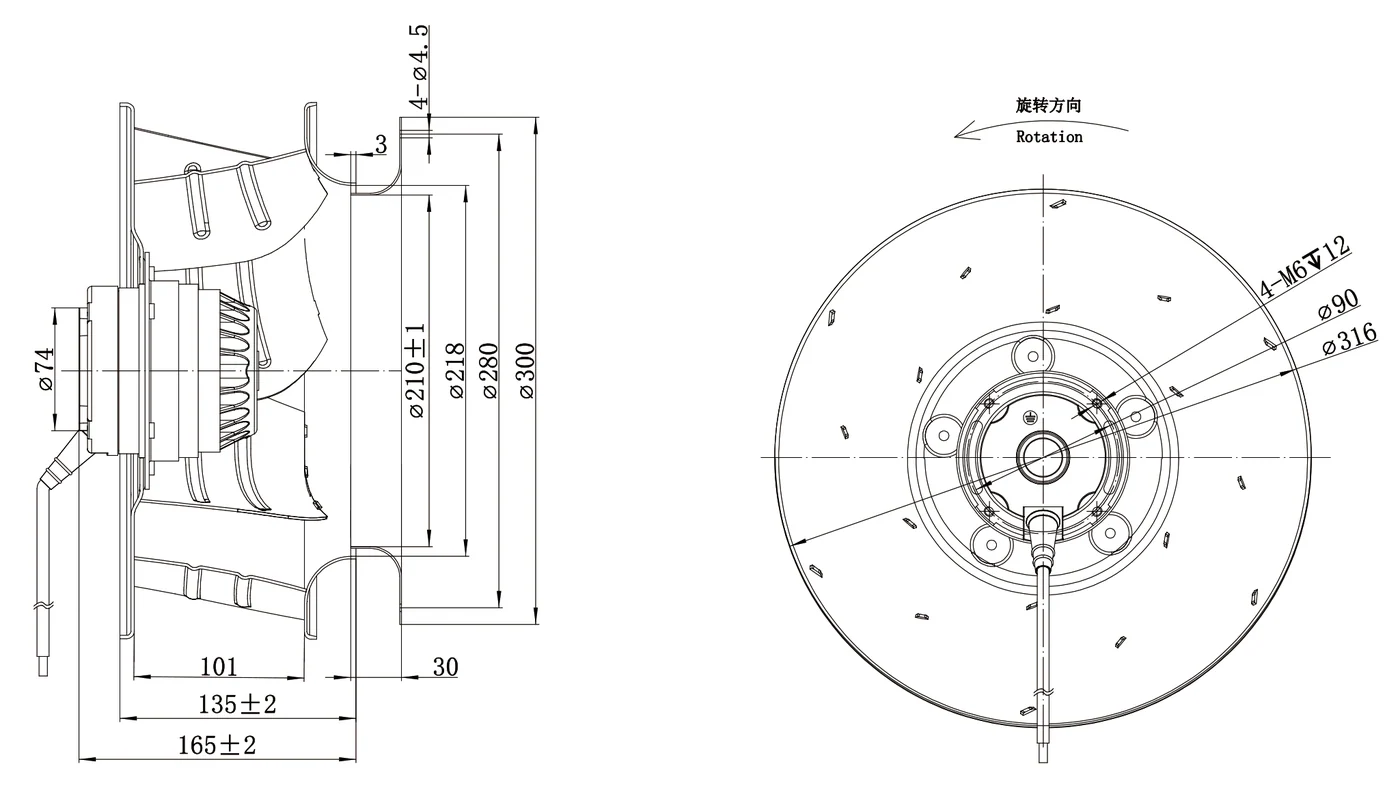

Dimensional drawing LWBA6E315-102NS-08
Files for LWBA6E315-102NS-08: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBA6E315-102NS-08
LWBA6E315-102NS-08 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø315 mm, rated 230 V AC, maximum airflow 1,133 m³/h, maximum static pressure 185 Pa, noise 60 dB(A), input power 85 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA6E315-102NS-08 |
|---|---|
| Series | LWBA6E315 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 60 Hz |
| Current | 0.42 A |
| Input power | 85 W |
| Speed | 1,050 rpm |
| Max. airflow | 1,133 m³/h |
| Max. static pressure | 185 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø315 mm |
| Rotor diameter | 102 mm |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA6E315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWBA6E315-102NS-08
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø315 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA6E315-102NS-08 this model | 1,133 m³/h | 185 Pa | 1,050 rpm | 85 W | 60 dB(A) | 230 V | |
| LWBA4E315-102NS-19 | 1,859 m³/h | 294 Pa | 1,390 rpm | 116 W | 67.4 dB(A) | 230 V | View |
| LWBA4E315-102NS-11 | 1,957 m³/h | 319 Pa | 1,350 rpm | 115 W | 63 dB(A) | 230 V | View |
| LWBA4E315-102NS-18 | 2,079 m³/h | 399 Pa | 1,550 rpm | 153 W | 69.6 dB(A) | 230 V | View |
| LWBA4D315-102NT-10 | 2,163 m³/h | 412 Pa | 1,560 rpm | 175 W | 65 dB(A) | 380 V | View |
| LWBA4D315-138NT-15 | 2,318 m³/h | 371 Pa | 1,450 rpm | 220 W | 64 dB(A) | 380 V | View |
| LWBA4E315-138NS-13 | 2,318 m³/h | 371 Pa | 1,450 rpm | 220 W | 64 dB(A) | 230 V | View |
| LWBA4D315-138NT-16 | 2,781 m³/h | 515 Pa | 1,650 rpm | 300 W | 68 dB(A) | 380 V | View |
| LWBA4E315-138NS-14 | 2,781 m³/h | 515 Pa | 1,650 rpm | 300 W | 68 dB(A) | 230 V | View |
| LWFA6D315-138NT-03 | 2,987 m³/h | 249.26 Pa | 940 rpm | 780 W | 68 dB(A) | 380 V | View |
| LWFA6E315-138NS-04 | 3,605 m³/h | 249.26 Pa | 870 rpm | 720 W | 68 dB(A) | 220 V | View |
| LWBA2D315-138NT-12 | 3,605 m³/h | 927 Pa | 2,750 rpm | 800 W | 84 dB(A) | 380 V | View |
| LWBA2D315-188NT-17 | 4,120 m³/h | 1,082 Pa | 2,650 rpm | 1,300 W | 85 dB(A) | 380 V | View |
| LWFA4D315-188NT-01 | 4,328 m³/h | 576.8 Pa | 1,360 rpm | 2,200 W | 80 dB(A) | 380 V | View |
| LWFA4E315-188NS-02 | 4,429 m³/h | 618 Pa | 1,360 rpm | 2,300 W | 80 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
