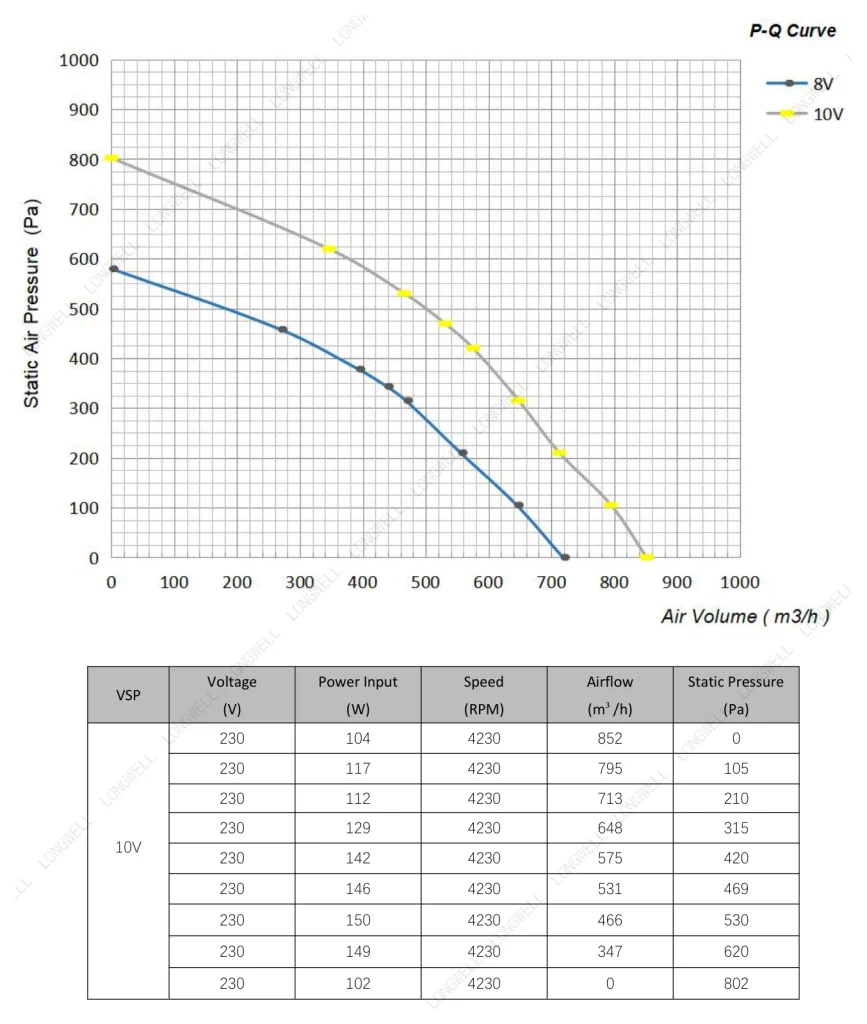

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ190 mm7.5 in
- Max airflow851 m³/h501 CFM
- Max static pressure798 Pa3.20 in. wg
- Voltage230 V
- Speed4,230 rpm
- Input power104 W
- Noise70 dB(A)
LWBE3G190-072NS-16 EC Backward Curved Centrifugal Fan Ø190 mm
Ø190 mm | EC | Max airflow 851 m³/h | Max static pressure 798 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

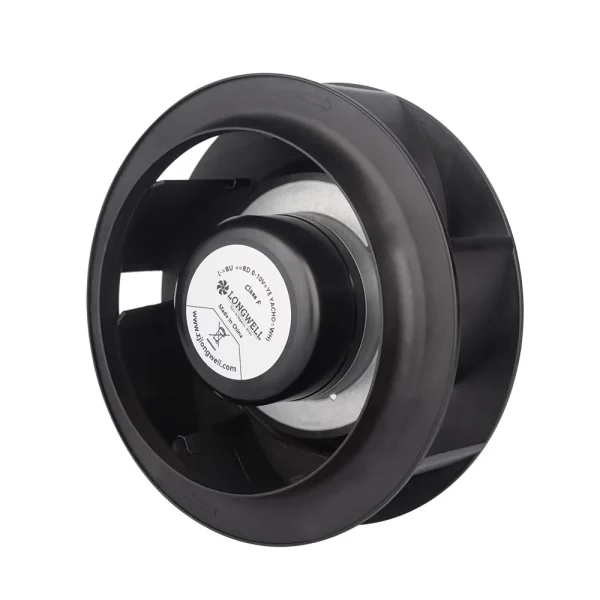

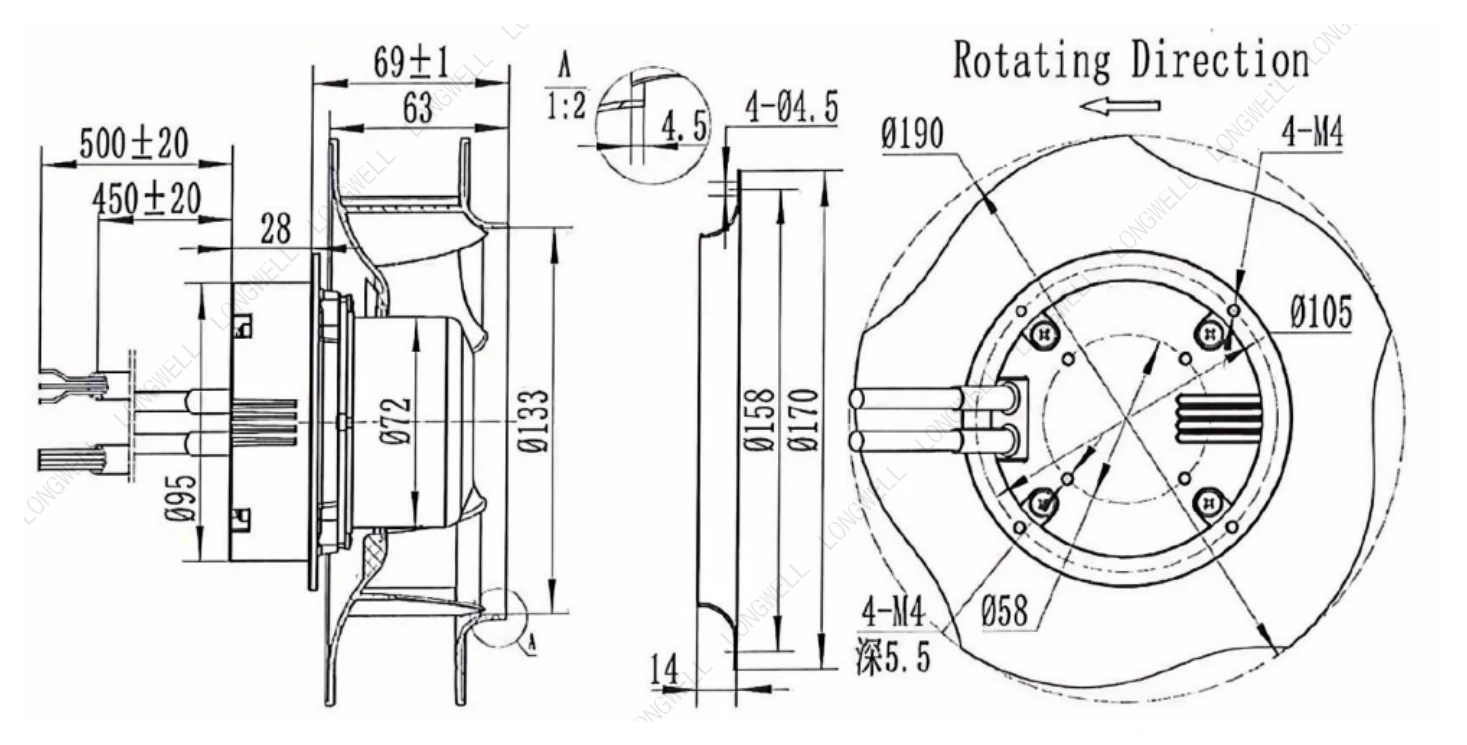

LWBE3G190-072NS-16 — construction, airflow path and running condition.
LWBE3G190-072NS-16 EC Backward Curved Centrifugal Fan | Product Overview · open in video library
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G190-072NS-16 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø190 mm, rated 230 V EC, maximum airflow 851 m³/h, maximum static pressure 798 Pa, noise 70 dB(A), input power 104 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data

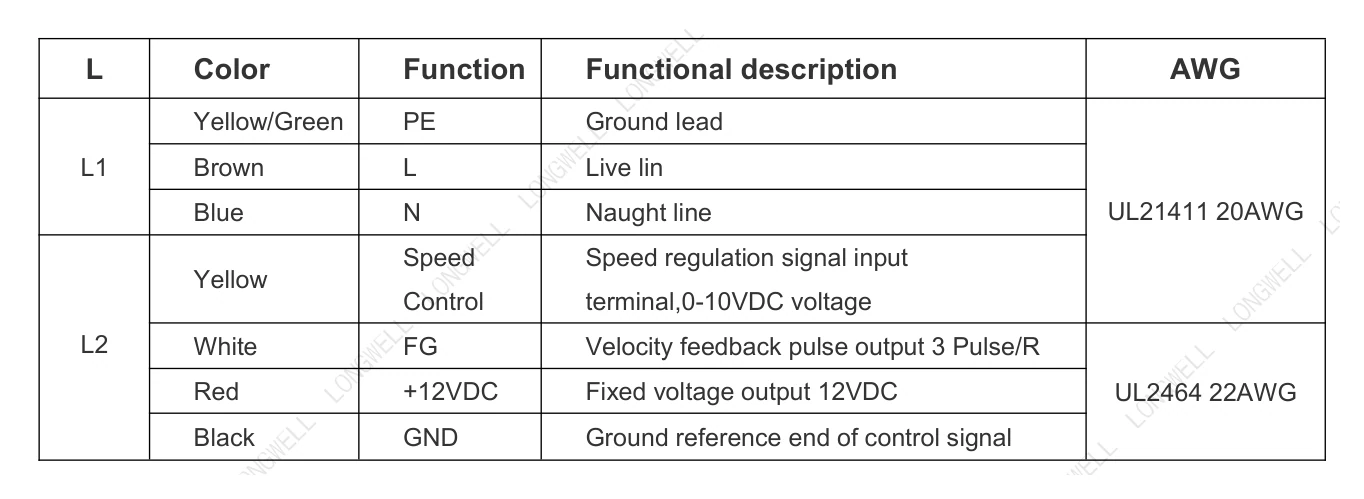

| Model | LWBE3G190-072NS-16 |
|---|---|
| Series | LWBE3G190 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.16 A |
| Input power | 104 W |
| Speed | 4,230 rpm |
| Max. airflow | 851 m³/h |
| Max. airflow (CFM) | 501 CFM |
| Max. static pressure | 798 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø190 mm |
| Rotor diameter | 72 |
| Impeller material | PA6+GF (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Speed control | Control input 0~10VDC |
| Control signal | Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode) |
| Speed feedback | Tach output: 3 Pulse/R; FG internal open circuit output, external pull-up resistor 10K, pull-up voltage V+ |
| Auxiliary output | Output 12±0.3VDC, Max Current: 22mA |
| Protection functions | Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, |
| Soft start | Delay time <30 seconds to full speed |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø190 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G190-072NS-16 this model | 851 m³/h | 798 Pa | 4,230 rpm | 104 W | 70 dB(A) | 230 V | |
| LWFE3G190-072PS-06 | 638.6 m³/h | 453.2 Pa | 2,940 rpm | 64 W | 65 dB(A) | 230 V | View |
| LWBE3G190-072NU-18 | 638.6 m³/h | 453.2 Pa | 2,940 rpm | 64 W | 65 dB(A) | 115 V | View |
| LWBE3G190-072NS-14 | 638.6 m³/h | 453.2 Pa | 2,940 rpm | 64 W | 65 dB(A) | 230 V | View |
| LWFE3G190-072PS-01 | 813.7 m³/h | 587.1 Pa | 3,300 rpm | 87 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072NS-13 | 813.7 m³/h | 587.1 Pa | 3,300 rpm | 87 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072PS-12 | 851 m³/h | 798 Pa | 4,230 rpm | 104 W | 70 dB(A) | 230 V | View |
| LWFE3G190-072PS-07 | 854.9 m³/h | 803.4 Pa | 3,700 rpm | 135 W | 70 dB(A) | 230 V | View |
| LWFE3G190-072PS-02 | 854.9 m³/h | 875.5 Pa | 3,800 rpm | 115 W | 71 dB(A) | 230 V | View |
| LWBE3G190-072NU-19 | 854.9 m³/h | 875.5 Pa | 3,800 rpm | 115 W | 71 dB(A) | 115 V | View |
| LWBE3G190-072NS-15 | 854.9 m³/h | 803.4 Pa | 3,700 rpm | 135 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072NS-12 | 854.9 m³/h | 875.5 Pa | 3,800 rpm | 115 W | 71 dB(A) | 230 V | View |
| LWFE3G190-072PS-03 | 973.35 m³/h | 1,009.4 Pa | 4,100 rpm | 170 W | 72 dB(A) | 230 V | View |
| LWBE3G190-072NS-06 | 973.35 m³/h | 1,009.4 Pa | 4,100 rpm | 170 W | 72 dB(A) | 230 V | View |
| LWBE3G190-072NU-20 | 973.35 m³/h | 1,009.4 Pa | 4,100 rpm | 170 W | 72 dB(A) | 115 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
