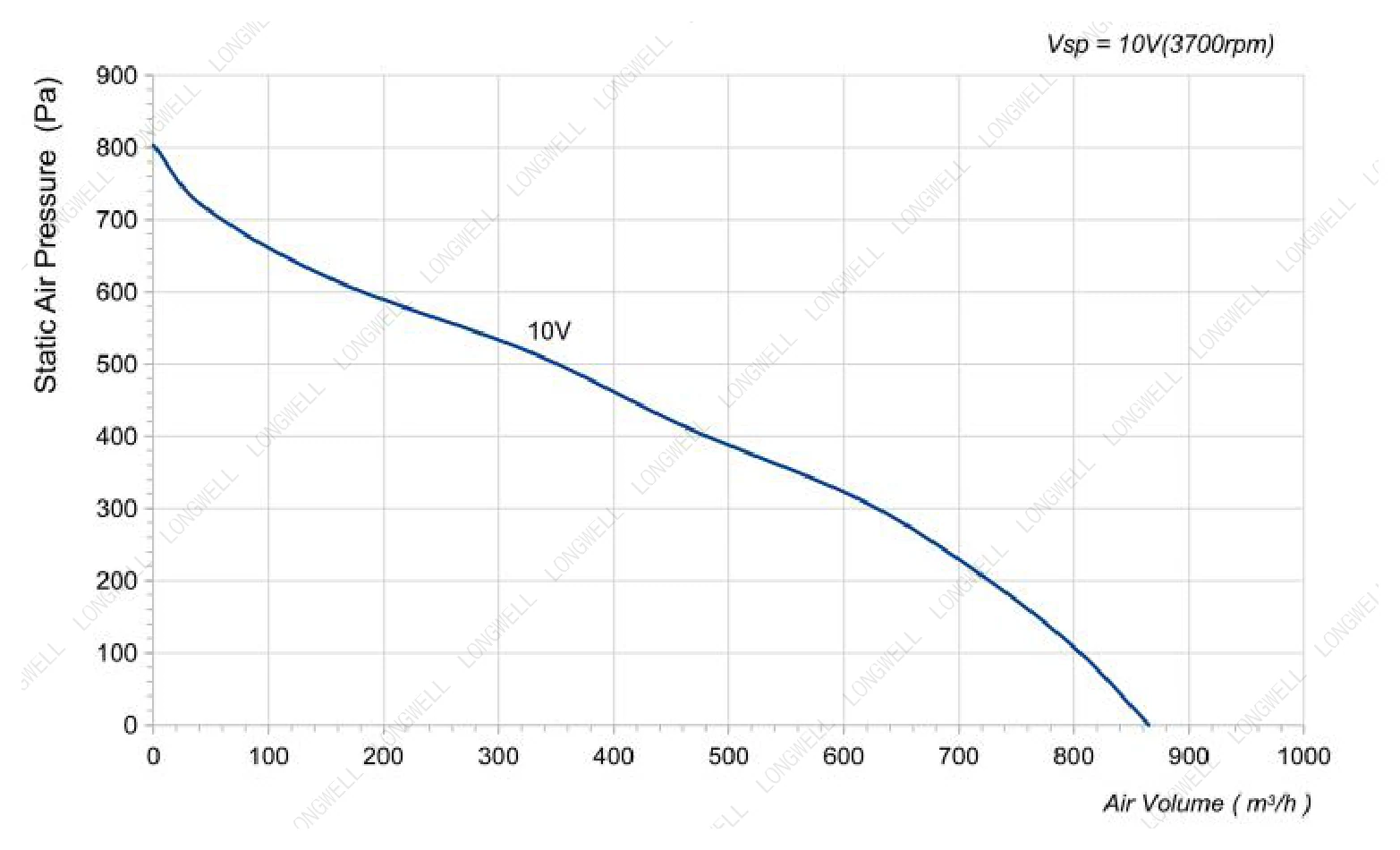

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (10 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

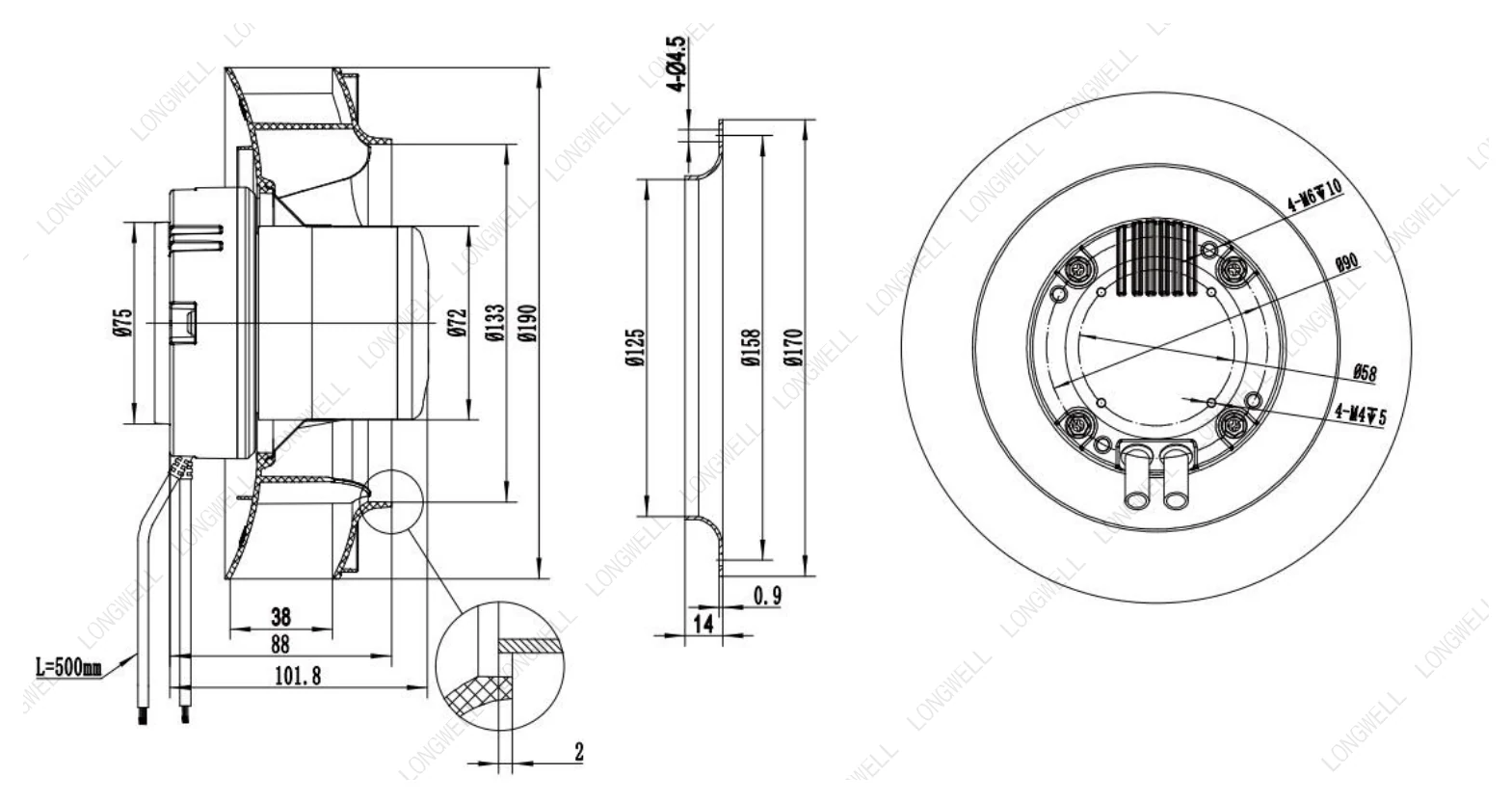

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ190 mm7.5 in
- Max airflow854.9 m³/h503 CFM
- Max static pressure803.4 Pa3.23 in. wg
- Voltage230 V
- Speed3,700 rpm
- Input power135 W
- Noise70 dB(A)
LWBE3G190-072NS-15 EC Backward Curved Centrifugal Fan Ø190 mm
Ø190 mm | EC | Max airflow 854.9 m³/h | Max static pressure 803.4 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Backward centrifugal fans #2 · SKU on PDF p. 12
All files for LWBE3G190-072NS-156 files · direct download

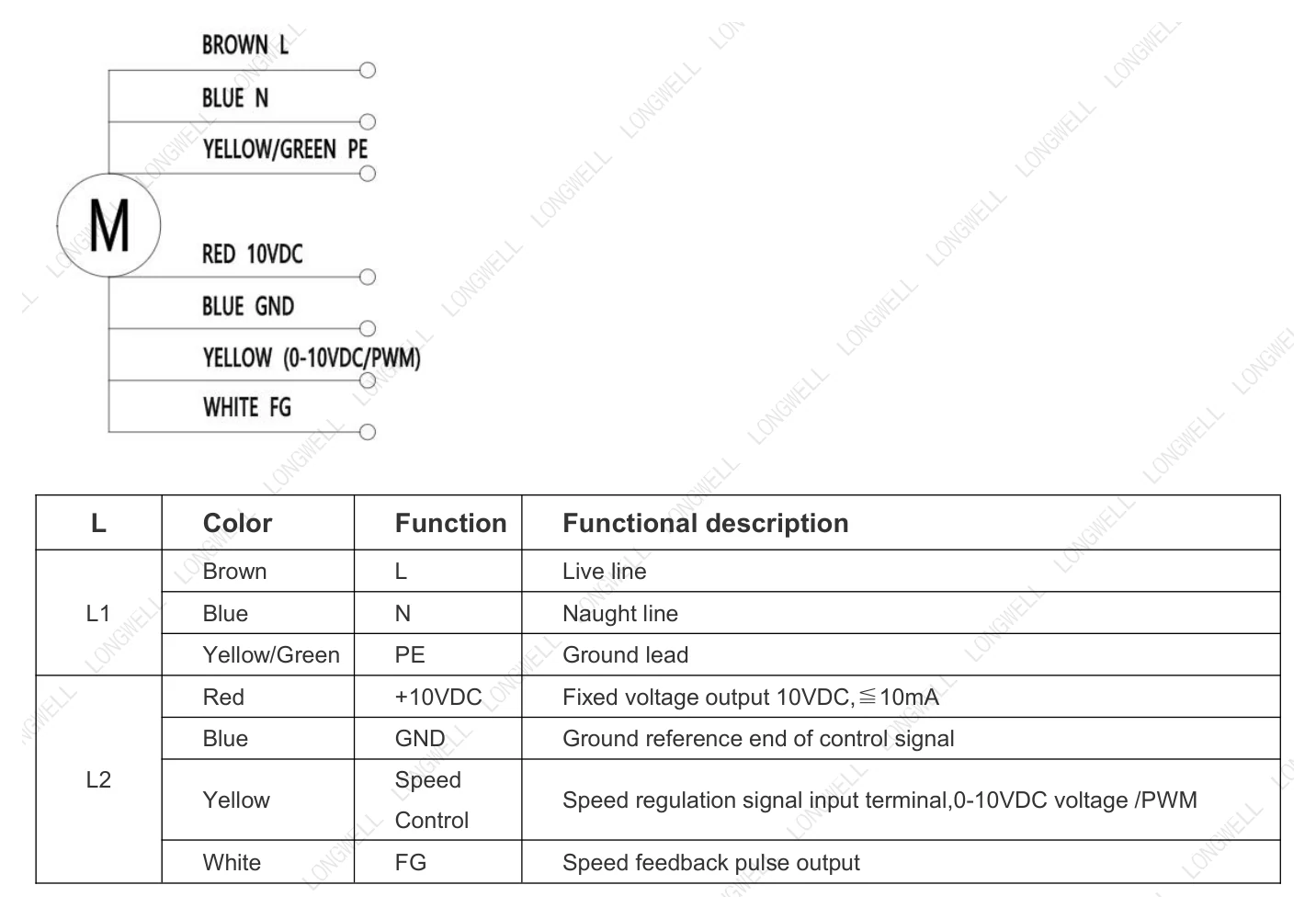

PDFFull product catalogue · model on PDF p. 12WEBPDimensional drawingWEBPPerformance curveWEBPWiring diagramMP4Product video
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com
Cross-reference: same impeller size class as ebm-papst K3G190, ebm-papst R3G190 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
Typical applications: Air conditioning · Air handling units · FanGrid arrays · FFU / EFU — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

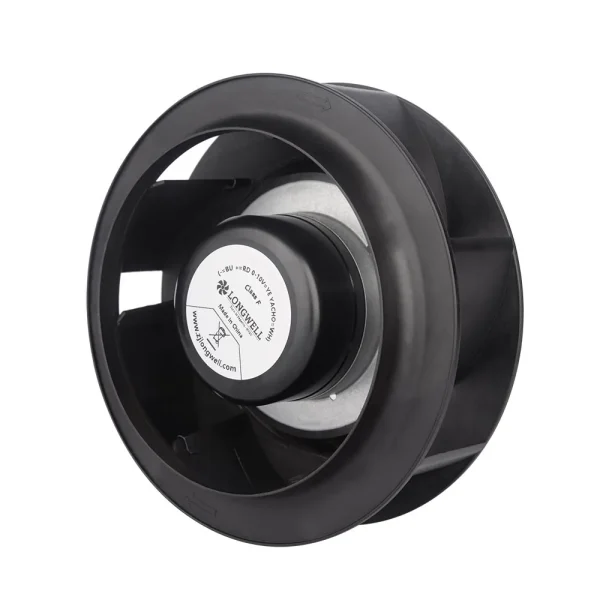

LWBE3G190-072NS-15 — construction, airflow path and running condition.
Longwell 190mm EC Backward Curved Centrifugal Fan – High Efficiency & Low Noise HVAC | LWBE3G190-072NS-15 · open in video library
朗伟离心风机——高效动力，静享品质 | LWBE3G190-072NS-15 · open in video library
Downloads for LWBE3G190-072NS-15
PDFFull product catalogue · EC ( ) EC Backward centrifugal fans #2 · model on PDF p. 12 · 27 MBPDFDatasheet · 702 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G190-072NS-15 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø190 mm, rated 230 V EC, maximum airflow 854.9 m³/h, maximum static pressure 803.4 Pa, noise 70 dB(A), input power 135 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G190-072NS-15 |
|---|---|
| Series | LWBE3G190 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.05 A |
| Input power | 135 W |
| Speed | 3,700 rpm |
| Max. airflow | 854.9 m³/h |
| Max. airflow (CFM) | 503 CFM |
| Max. static pressure | 803.4 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø190 mm |
| Rotor diameter | 72 mm |
| Impeller material | PA6+GF30% ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø190 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G190-072NS-15 this model | 854.9 m³/h | 803.4 Pa | 3,700 rpm | 135 W | 70 dB(A) | 230 V | |
| LWBE3G190-072NU-18 | 638.6 m³/h | 453.2 Pa | 2,940 rpm | 64 W | 65 dB(A) | 115 V | View |
| LWBE3G190-072NS-14 | 638.6 m³/h | 453.2 Pa | 2,940 rpm | 64 W | 65 dB(A) | 230 V | View |
| LWBE3G190-072NS-13 | 813.7 m³/h | 587.1 Pa | 3,300 rpm | 87 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072PS-12 | 851 m³/h | 798 Pa | 4,230 rpm | 104 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072NS-16 | 851 m³/h | 798 Pa | 4,230 rpm | 104 W | 70 dB(A) | 230 V | View |
| LWBE3G190-072NU-19 | 854.9 m³/h | 875.5 Pa | 3,800 rpm | 115 W | 71 dB(A) | 115 V | View |
| LWBE3G190-072NS-12 | 854.9 m³/h | 875.5 Pa | 3,800 rpm | 115 W | 71 dB(A) | 230 V | View |
| LWBE3G190-072NS-06 | 973.35 m³/h | 1,009.4 Pa | 4,100 rpm | 170 W | 72 dB(A) | 230 V | View |
| LWBE3G190-072NU-20 | 973.35 m³/h | 1,009.4 Pa | 4,100 rpm | 170 W | 72 dB(A) | 115 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
