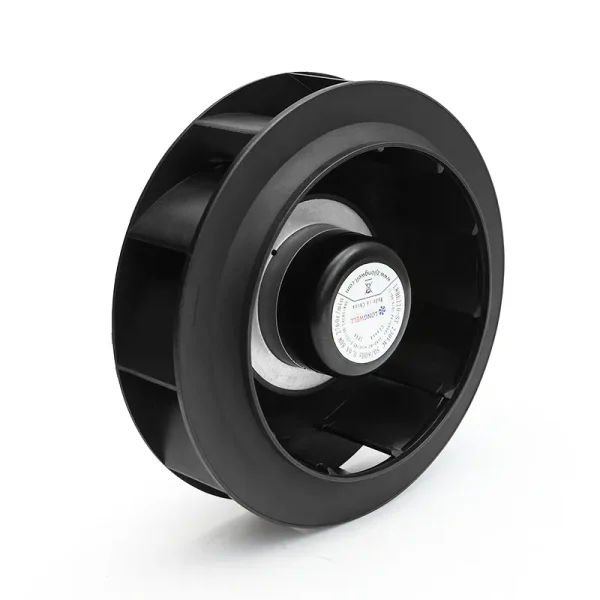

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ220 mm8.7 in
Max airflow1,019.7 m³/h600 CFM
Max static pressure597.4 Pa2.40 in. wg
Voltage230 V
Speed2,800 rpm
Input power115 W
Noise69 dB(A)

LWBE3G220-072NS-09 EC Backward Curved Centrifugal Fan Ø220 mm

Ø220 mm | EC | Max airflow 1,019.7 m³/h | Max static pressure 597.4 Pa | 69 dB(A)

SKU: LWBE3G220-072NS-09 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø133–225 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Backward centrifugal fans #2 · SKU on PDF p. 13

All files for LWBE3G220-072NS-095 files · direct download

PDFFull product catalogue · model on PDF p. 13 WEBPDimensional drawing WEBPPerformance curve PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as ebm-papst K3G220, ebm-papst R3G220 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G220-072NS-09

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G220-072NS-09datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBE3G220-072NS-09

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWBE3G220-072NS-09

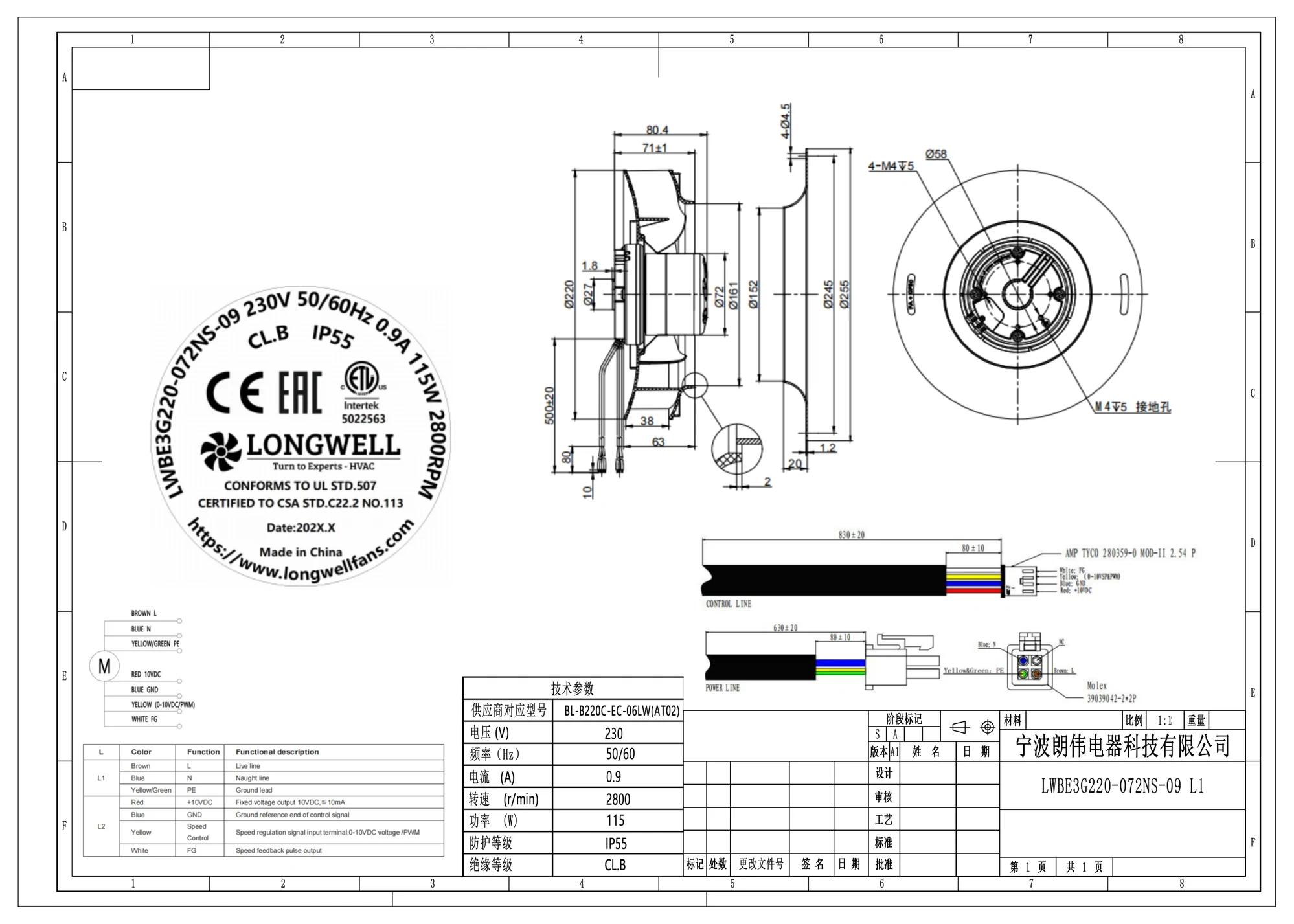

LWBE3G220-072NS-09 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

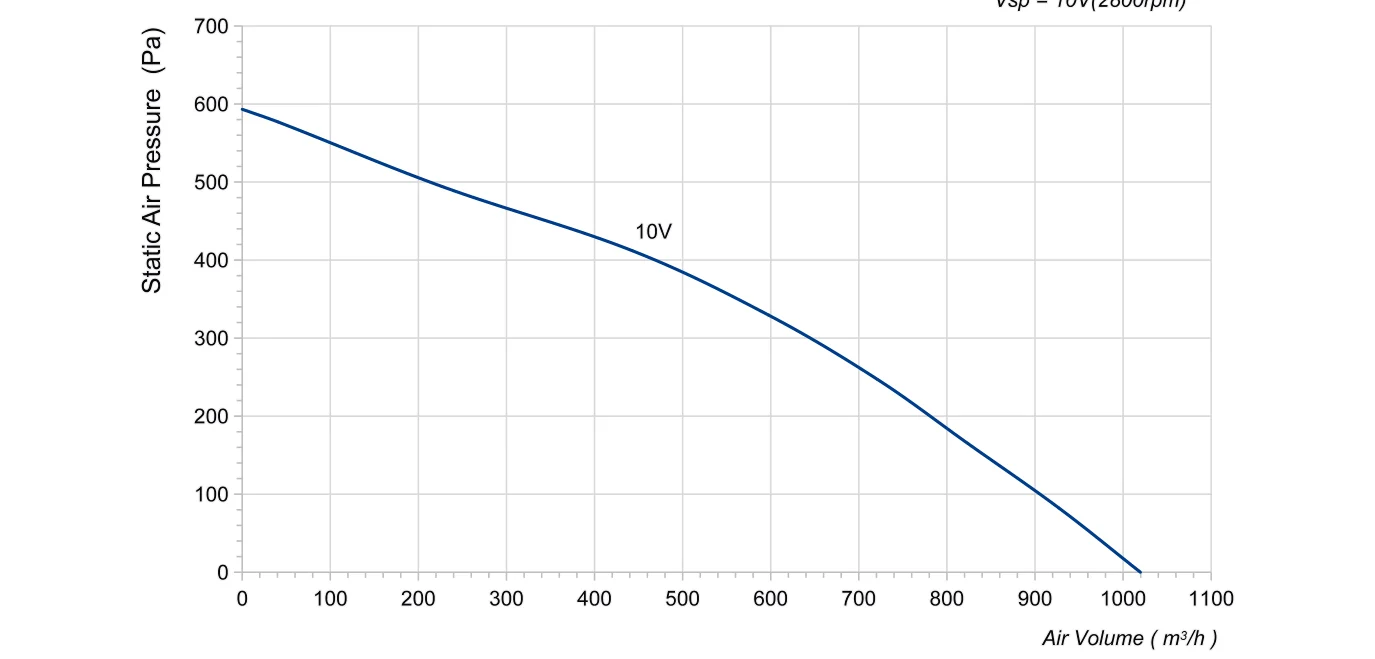

LWBE3G220-072NS-09 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWBE3G220-072NS-09: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBE3G220-072NS-09

LWBE3G220-072NS-09 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø220 mm, rated 230 V EC, maximum airflow 1,019.7 m³/h, maximum static pressure 597.4 Pa, noise 69 dB(A), input power 115 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G220-072NS-09
Series	LWBE3G220
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.9 A
Input power	115 W
Speed	2,800 rpm
Max. airflow	1,019.7 m³/h
Max. airflow (CFM)	600 CFM
Max. static pressure	597.4 Pa
Noise	69 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø220 mm
Rotor diameter	72 mm
Impeller material	Plastic PA66
Protection class	IP55
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
