ImpellerØ220 mm8.7 in
Max airflow886 m³/h521 CFM
Max static pressure433 Pa1.74 in. wg
Voltage230 V
Speed2,600 rpm
Input power75 W
Noise71 dB(A)

LWBE3G220-072PS-10 EC Plug Fan Ø220 mm

Ø220 mm | EC | Max airflow 886 m³/h | Max static pressure 433 Pa | 71 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G220-072PS-10

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWBE3G220-072PS-10drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

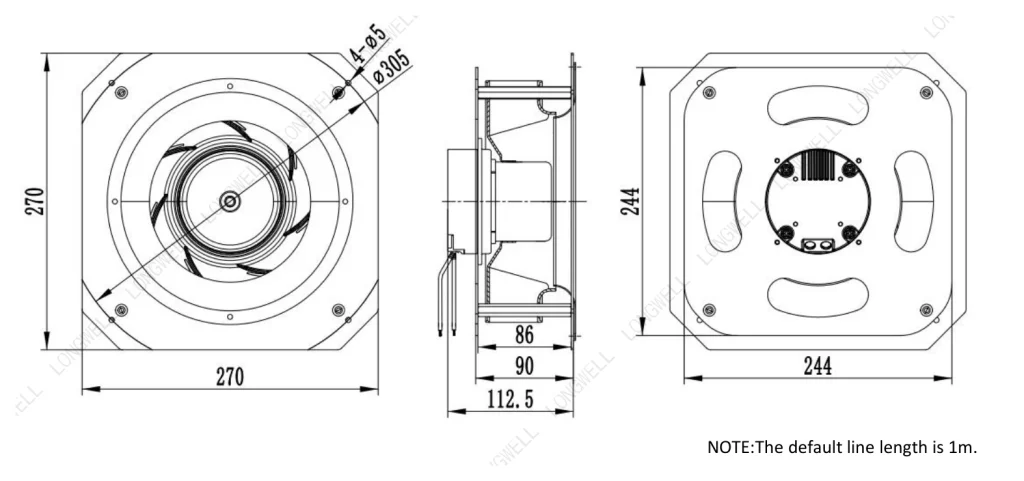

LWBE3G220-072PS-10 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

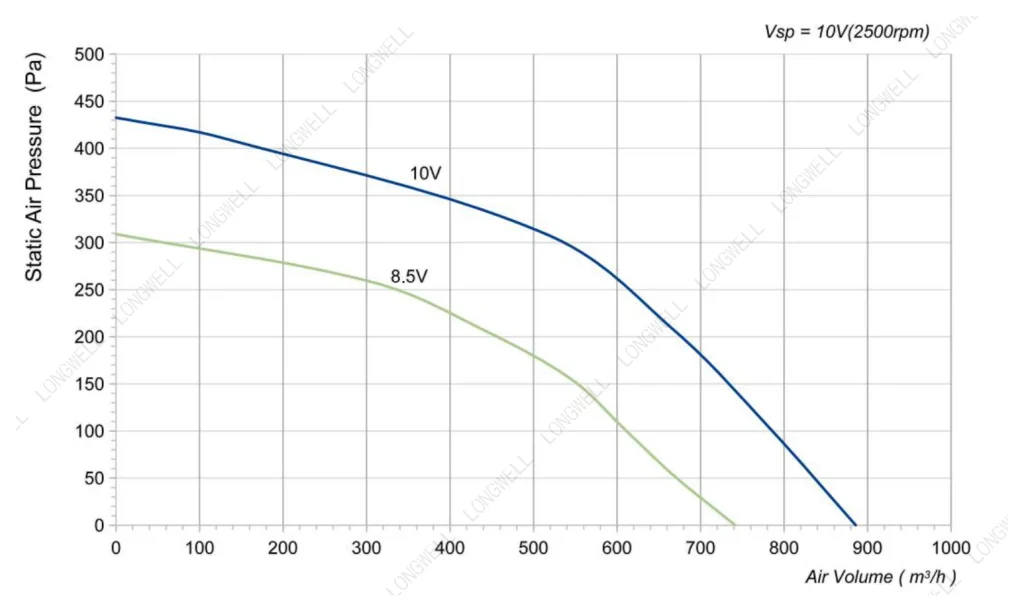

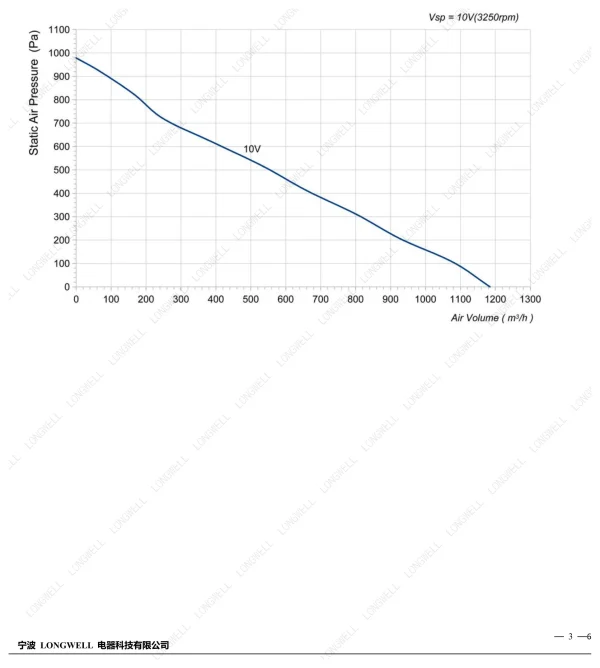

LWBE3G220-072PS-10 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

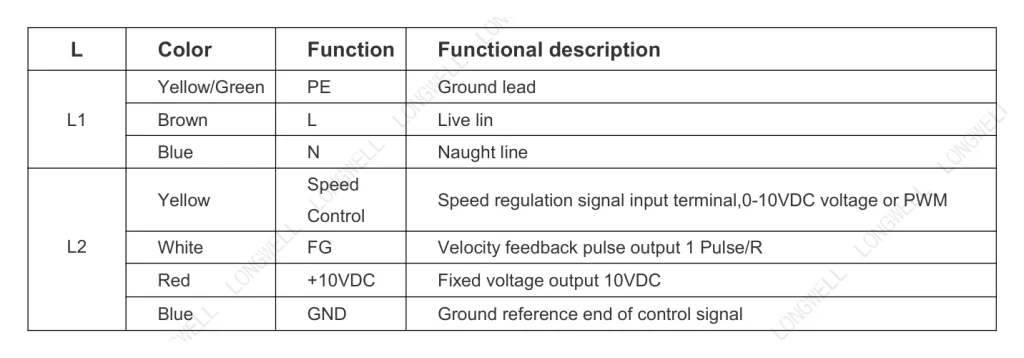

LWBE3G220-072PS-10 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWBE3G220-072PS-10

PDFDatasheet DOCXDatasheet · 493 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBE3G220-072PS-10 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø220 mm, rated 230 V EC, maximum airflow 886 m³/h, maximum static pressure 433 Pa, noise 71 dB(A), input power 75 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G220-072PS-10
Series	LWBE3G220
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.6 A
Input power	75 W
Speed	2,600 rpm
Max. airflow	886 m³/h
Max. airflow (CFM)	521 CFM
Max. static pressure	433 Pa
Noise	71 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø220 mm
Rotor diameter	72
Impeller material	PA6+GF ( Impeller )
Protection class	IP44
Insulation class	B
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Speed control	Control input 0~10VDC / PWM
Control signal	Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.1VDC, the motor switches from operating mode to standby mode)
PWM input	PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% .
Speed feedback	Tach output: 1 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Over-temperature protection, Over-current protection, Locked-rotor protection’
Soft start	Delay time <20 seconds to full speed

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø220 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWBE3G220-072PS-10 this model	886 m³/h	433 Pa	2,600 rpm	75 W	71 dB(A)	230 V
LWBE3G220-072NS-11	886 m³/h	433 Pa	2,600 rpm	75 W	71 dB(A)	230 V	View
LWFE3G220-072PS-01	937.3 m³/h	721 Pa	2,470 rpm	86 W	68 dB(A)	230 V	View
LWBE3G220-072NU-13	937.3 m³/h	721 Pa	2,470 rpm	86 W	68 dB(A)	115 V	View
LWBE3G220-072NS-07	937.3 m³/h	721 Pa	2,470 rpm	86 W	68 dB(A)	230 V	View
LWBE3G220-092PS-11	989 m³/h	711 Pa	3,310 rpm	145 W	75 dB(A)	230 V	View
LWBE3G220-092NS-10	989 m³/h	711 Pa	3,310 rpm	145 W	75 dB(A)	230 V	View
LWFE3G220-072PS-02	1,019.7 m³/h	597.4 Pa	2,800 rpm	115 W	69 dB(A)	230 V	View
LWBE3G220-072NU-14	1,019.7 m³/h	597.4 Pa	2,800 rpm	115 W	69 dB(A)	115 V	View
LWBE3G220-072NS-09	1,019.7 m³/h	597.4 Pa	2,800 rpm	115 W	69 dB(A)	230 V	View
LWFE3G220-072PS-03	1,184.5 m³/h	978.5 Pa	3,250 rpm	168 W	70 dB(A)	230 V	View
LWBE3G220-072NU-12	1,184.5 m³/h	978.5 Pa	3,250 rpm	168 W	70 dB(A)	115 V	View
LWBE3G220-072NS-08	1,184.5 m³/h	978.5 Pa	3,250 rpm	168 W	70 dB(A)	230 V	View
