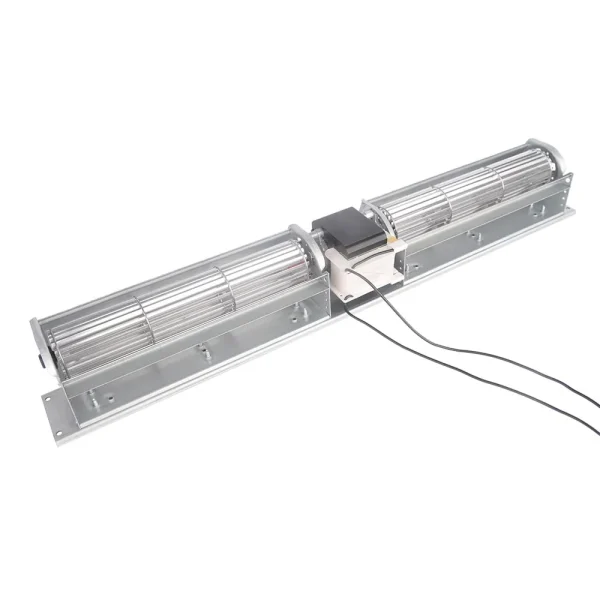

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ45 mm1.8 in
- Max airflow307 m³/h181 CFM
- Max static pressure27 Pa0.11 in. wg
- Voltage230 V
- Speed1,600 rpm
- Input power36 W
- Noise41 dB(A)
LWCA-45300SN-07 AC Cross Flow Fan Ø45 mm
Ø45 mm | AC | Max airflow 307 m³/h | Max static pressure 27 Pa | 41 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

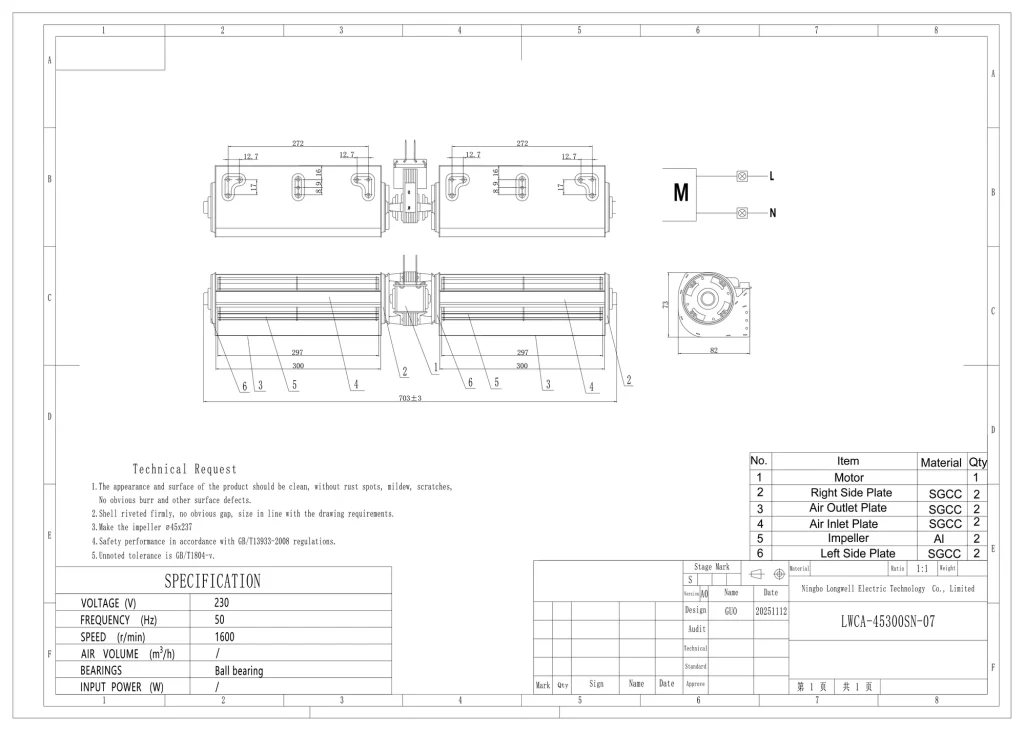

Dimensional drawing LWCA-45300SN-07
Files for LWCA-45300SN-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCA-45300SN-07
LWCA-45300SN-07 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø45 mm, rated 230 V AC, maximum airflow 307 m³/h, maximum static pressure 27 Pa, noise 41 dB(A), input power 36 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-45300SN-07 |
|---|---|
| Series | LWCA45300 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Dual inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 36 W |
| Speed | 1,600 rpm |
| Max. airflow | 307 m³/h |
| Max. static pressure | 27 Pa |
| Noise | 41 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø45 mm |
| Outlet length | 300mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA45300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
