DC Axial Cooling Fan performance curve (shared by several models)

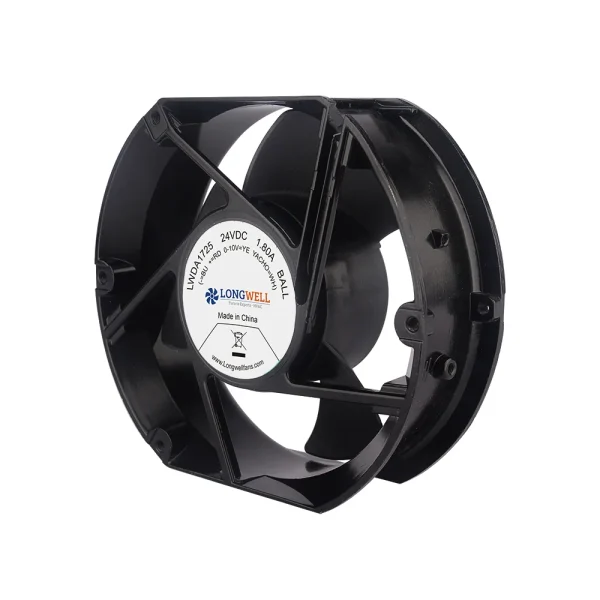

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size172 mm6.8 in
Max airflow774.6 m³/h456 CFM
Max static pressure558 Pa2.24 in. wg
Voltage48 V
Speed6,000 rpm
Input power96 W
Noise75 dB(A)

LWAD17251HX-06 DC Axial Cooling Fan 172 mm

172 mm | DC | Max airflow 774.6 m³/h | Max static pressure 558 Pa | 75 dB(A)

SKU: LWAD17251HX-06 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAD17251HX-062 files · direct download

WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Drive & control cabinets Access control Automation cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAD17251HX-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD17251HX-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing & Curve LWAD17251HX-06

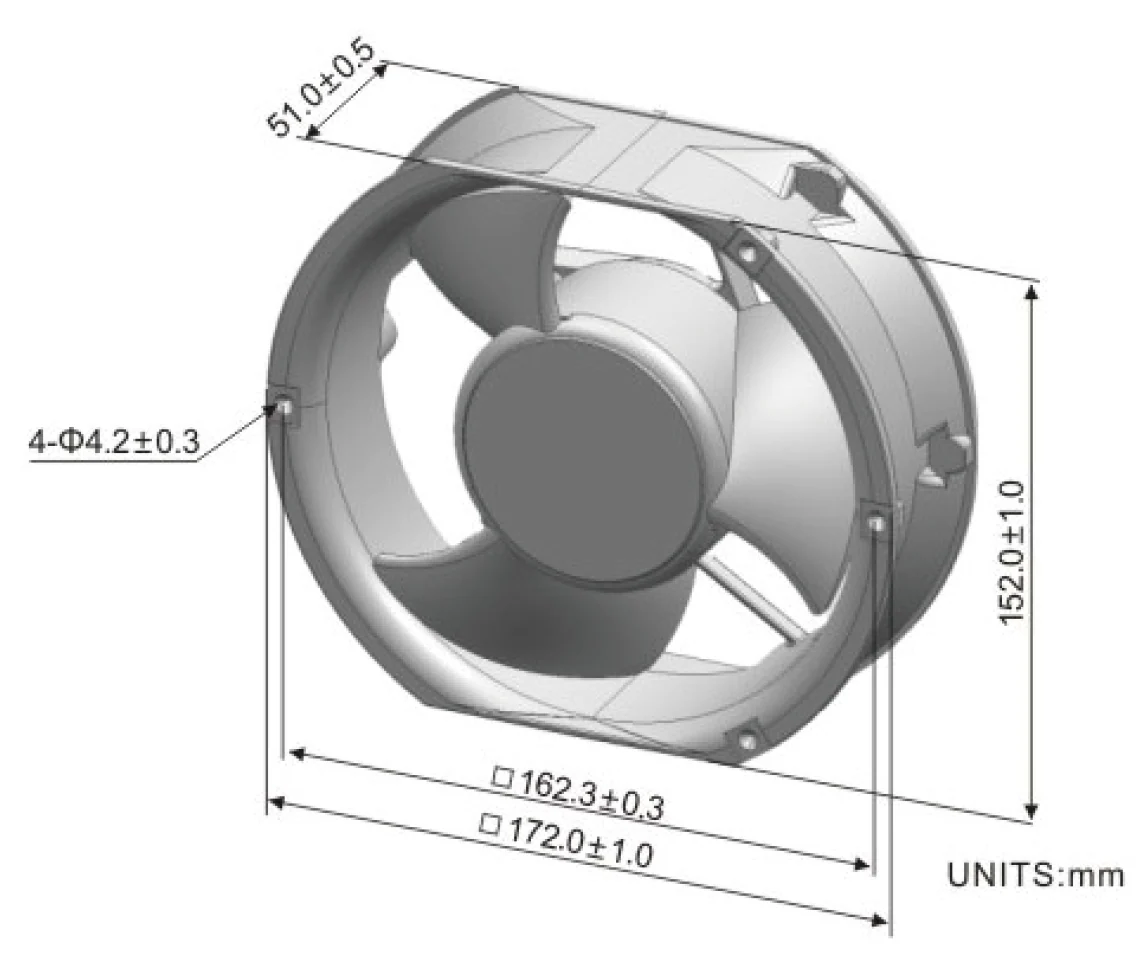

LWAD17251HX-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD17251HX-06 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAD17251HX-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD17251HX-06

LWAD17251HX-06 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 172 mm, rated 48 V DC, maximum airflow 774.6 m³/h, maximum static pressure 558 Pa, noise 75 dB(A), input power 96 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD17251HX-06
Series	LWAD17251
Motor type	DC
Rated voltage	48 V
Current	2 A
Input power	96 W
Speed	6,000 rpm
Max. airflow	774.6 m³/h
Max. static pressure	558 Pa
Noise	75 dB(A)
Frame size	172 mm
Dimensions	172x51mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD17251: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
