LWCD-90520MN-06 DC Cross Flow Fan Ø90 mm
Ø90 mm | DC | Max airflow 876 m³/h | Max static pressure 102 Pa | 56 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-90520MN-06

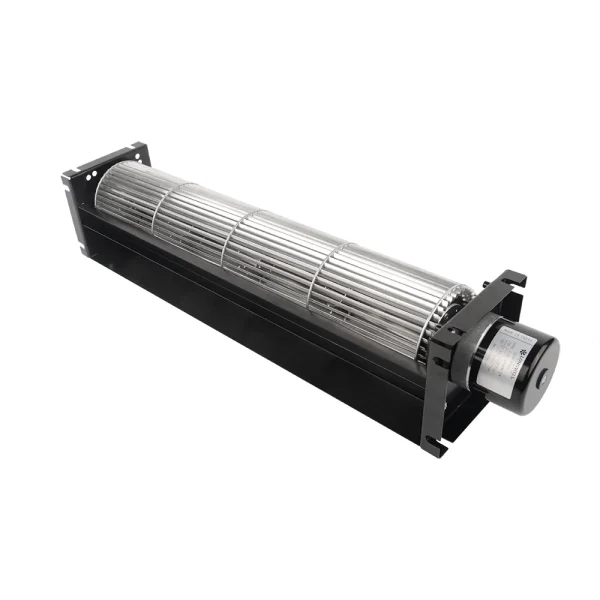

LWCD-90520MN-06 — construction, airflow path and running condition.
LONGWELL LWCD-90 Fan | LWCD-90520MN-06 · open in video library

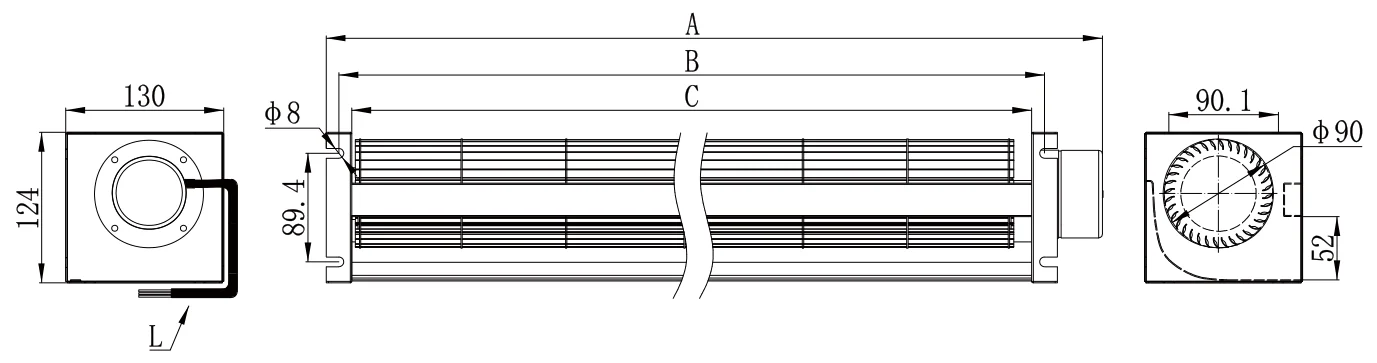

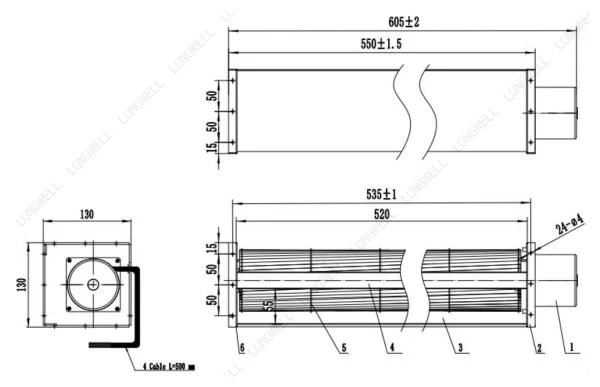

Dimensional drawing LWCD-90520MN-06
Files for LWCD-90520MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

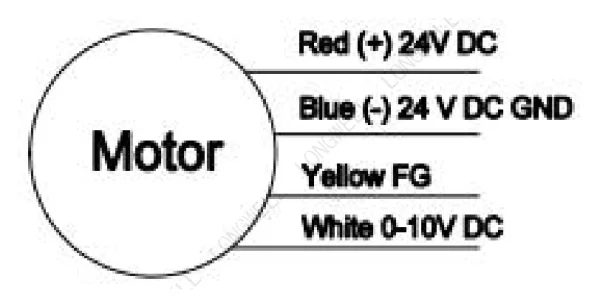

Technical description LWCD-90520MN-06
LWCD-90520MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø90 mm, rated 24 V DC, maximum airflow 876 m³/h, maximum static pressure 102 Pa, noise 56 dB(A), input power 40 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-90520MN-06 |
|---|---|
| Series | LWCD90520 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Input power | 40 W |
| Speed | 1,500 rpm |
| Max. airflow | 876 m³/h |
| Max. static pressure | 102 Pa |
| Noise | 56 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø90 mm |
| Outlet length | 520mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy 20,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment Operating temperature: -20~50 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -25~60 °C |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T8689 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD90520: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
