ImpellerØ45 mm1.8 in
Max airflow105 m³/h62 CFM
Max static pressure22 Pa0.09 in. wg
Voltage24 V
Speed2,000 rpm
Input power6.48 W
Noise37 dB(A)

LWCD-45190MN-06 DC Cross Flow Fan Ø45 mm

Ø45 mm | DC | Max airflow 105 m³/h | Max static pressure 22 Pa | 37 dB(A)

SKU: LWCD-45190MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)121 KBRequest →

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCD-45190MN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWCD-45190MN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

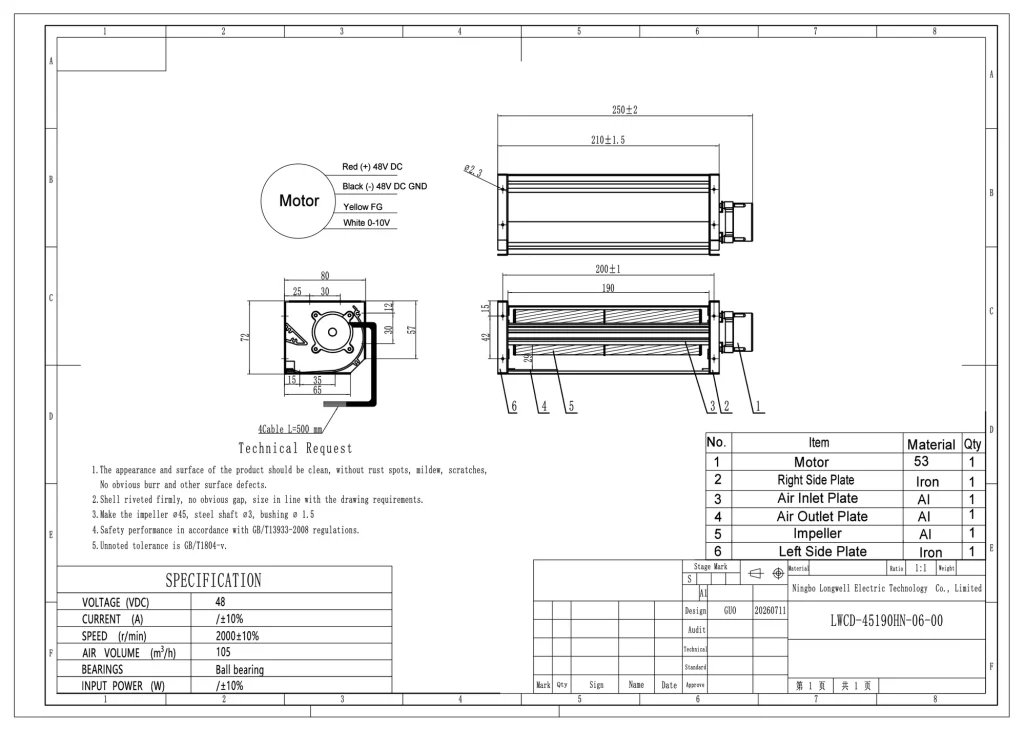

LWCD-45190MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWCD-45190MN-06

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

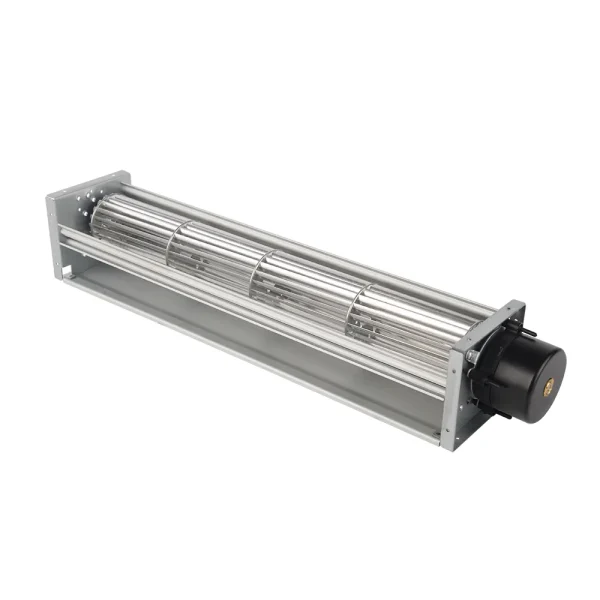

LWCD-45190MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø45 mm, rated 24 V DC, maximum airflow 105 m³/h, maximum static pressure 22 Pa, noise 37 dB(A), input power 6.48 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-45190MN-06
Series	LWCD45190
Motor type	DC
Inlet	Single inlet
Rated voltage	24 V
Current	0.27 A
Input power	6.48 W
Speed	2,000 rpm
Max. airflow	105 m³/h
Max. static pressure	22 Pa
Noise	37 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø45 mm
Outlet length	190mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD45190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø45 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-45190MN-06 this model	105 m³/h	22 Pa	2,000 rpm	6.48 W	37 dB(A)	24 V
LWCD-4590MN-06	50 m³/h	21 Pa	2,000 rpm	4.08 W	37 dB(A)	24 V	View
LWCD-45150MN-06	83 m³/h	22 Pa	2,000 rpm	5.04 W	37 dB(A)	24 V	View
LWCD-45250MN-06	138 m³/h	23 Pa	2,000 rpm	7.2 W	38 dB(A)	24 V	View
LWCD-45310MN-06	172 m³/h	24 Pa	2,000 rpm	8.4 W	41 dB(A)	24 V	View
LWCD-45350MN-06	194 m³/h	24 Pa	2,000 rpm	9.12 W	42 dB(A)	24 V	View
LWCD-45530MN-06	277 m³/h	28 Pa	2,000 rpm	11.76 W	44 dB(A)	24 V	View
LWCD-45630MN-06	329 m³/h	28 Pa	2,000 rpm	16.8 W	45 dB(A)	24 V	View
LWCD-45700MN-06	365 m³/h	28 Pa	2,000 rpm	20.4 W	46 dB(A)	24 V	View
LWCD-45750MN-06	392 m³/h	28 Pa	2,000 rpm	22.56 W	46 dB(A)	24 V	View
LWCD-45870MN-06	454 m³/h	26 Pa	2,000 rpm	19.2 W	47 dB(A)	24 V	View
