ImpellerØ45 mm1.8 in
Max airflow365 m³/h215 CFM
Max static pressure28 Pa0.11 in. wg
Voltage24 V
Speed2,000 rpm
Input power20.4 W
Noise46 dB(A)

LWCD-45700MN-06 DC Cross Flow Fan Ø45 mm

Ø45 mm | DC | Max airflow 365 m³/h | Max static pressure 28 Pa | 46 dB(A)

SKU: LWCD-45700MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 13

All files for LWCD-45700MN-064 files · direct download

PDFFull product catalogue · model on PDF p. 13 WEBPDimensional drawing PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Electric heaters Display cases Air curtains Air purifiers All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCD-45700MN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCD-45700MN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWCD-45700MN-06

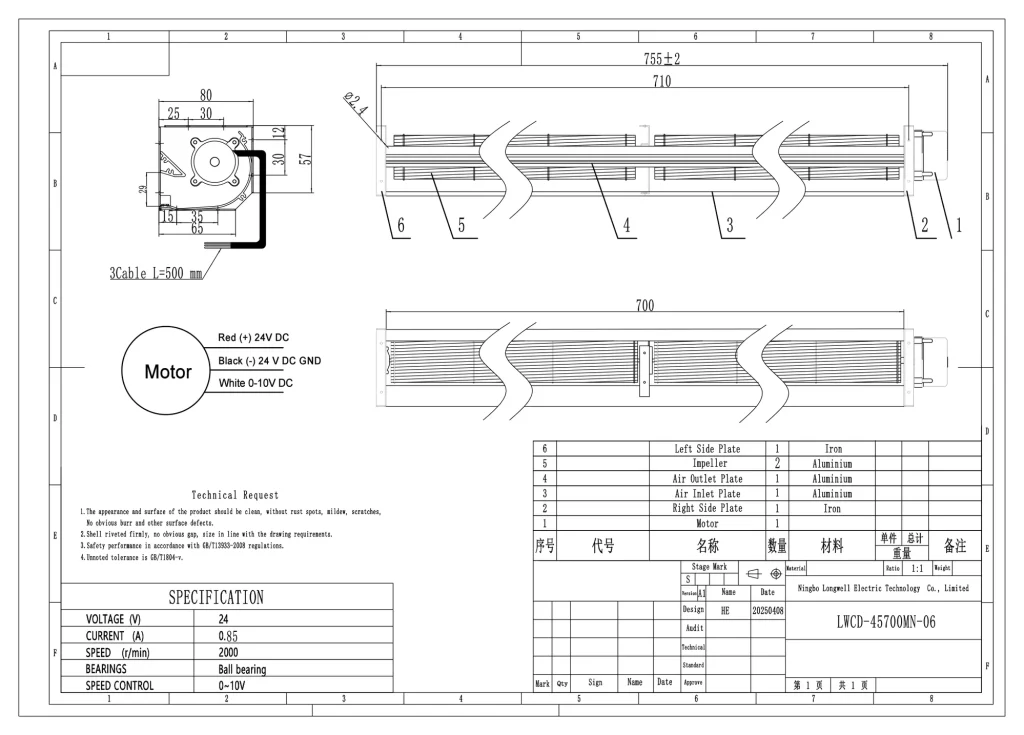

LWCD-45700MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWCD-45700MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCD-45700MN-06

LWCD-45700MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø45 mm, rated 24 V DC, maximum airflow 365 m³/h, maximum static pressure 28 Pa, noise 46 dB(A), input power 20.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-45700MN-06
Series	LWCD45700
Motor type	DC
Inlet	Dual inlet
Rated voltage	24 V
Current	0.85 A
Input power	20.4 W
Speed	2,000 rpm
Max. airflow	365 m³/h
Max. static pressure	28 Pa
Noise	46 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø45 mm
Outlet length	700mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD45700: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
