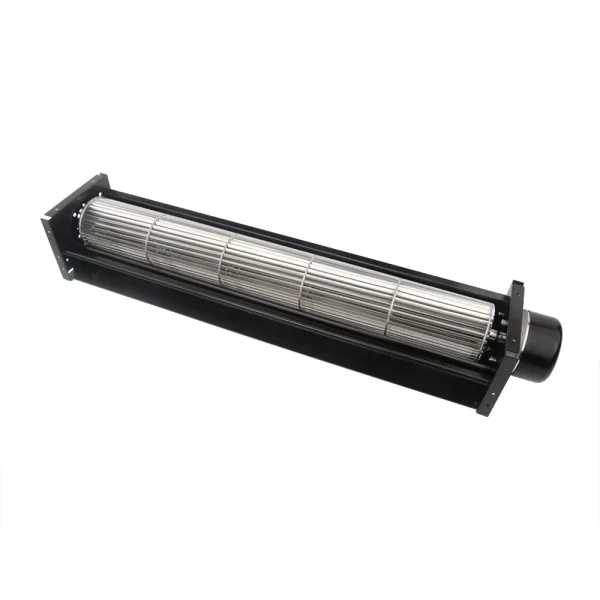

LWCD-60360LN-06 DC Cross Flow Fan Ø60 mm

Ø60 mm | DC | Max airflow 240 m³/h | Max static pressure 34 Pa | 42 dB(A)

SKU: LWCD-60360LN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø60–150 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueCross FLow Fan · SKU on PDF p. 16

All files for LWCD-60360LN-062 files · direct download

PDFFull product catalogue · model on PDF p. 16 WEBPDimensional drawing (series)

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Electric heaters Display cases Air curtains Air purifiers All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Get a quote · LWCD-60360LN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCD-60360LN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWCD-60360LN-06

LWCD-60360LN-06 Dimensional drawing (series) — **Dimensional drawing (series)**Series drawing from the catalogue; dimensions in mm apply to the size of this model as listed in the table.

Files for LWCD-60360LN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCD-60360LN-06

LWCD-60360LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø60 mm, rated 12 V DC, maximum airflow 240 m³/h, maximum static pressure 34 Pa, noise 42 dB(A), input power 11.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-60360LN-06
Series	LWCD60360
Motor type	DC
Inlet	Single inlet
Rated voltage	12 V
Current	0.95 A
Input power	11.4 W
Speed	2,000 rpm
Max. airflow	240 m³/h
Max. static pressure	34 Pa
Noise	42 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø60 mm
Outlet length	368mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD60360: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
