ImpellerØ60 mm2.4 in
Max airflow693 m³/h408 CFM
Max static pressure32 Pa0.13 in. wg
Voltage24 V
Speed1,800 rpm
Input power30 W
Noise50 dB(A)

LWCD-60870MN-06 DC Cross Flow Fan Ø60 mm

Ø60 mm | DC | Max airflow 693 m³/h | Max static pressure 32 Pa | 50 dB(A)

SKU: LWCD-60870MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø60–150 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWCD-60870MN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWCD-60870MN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

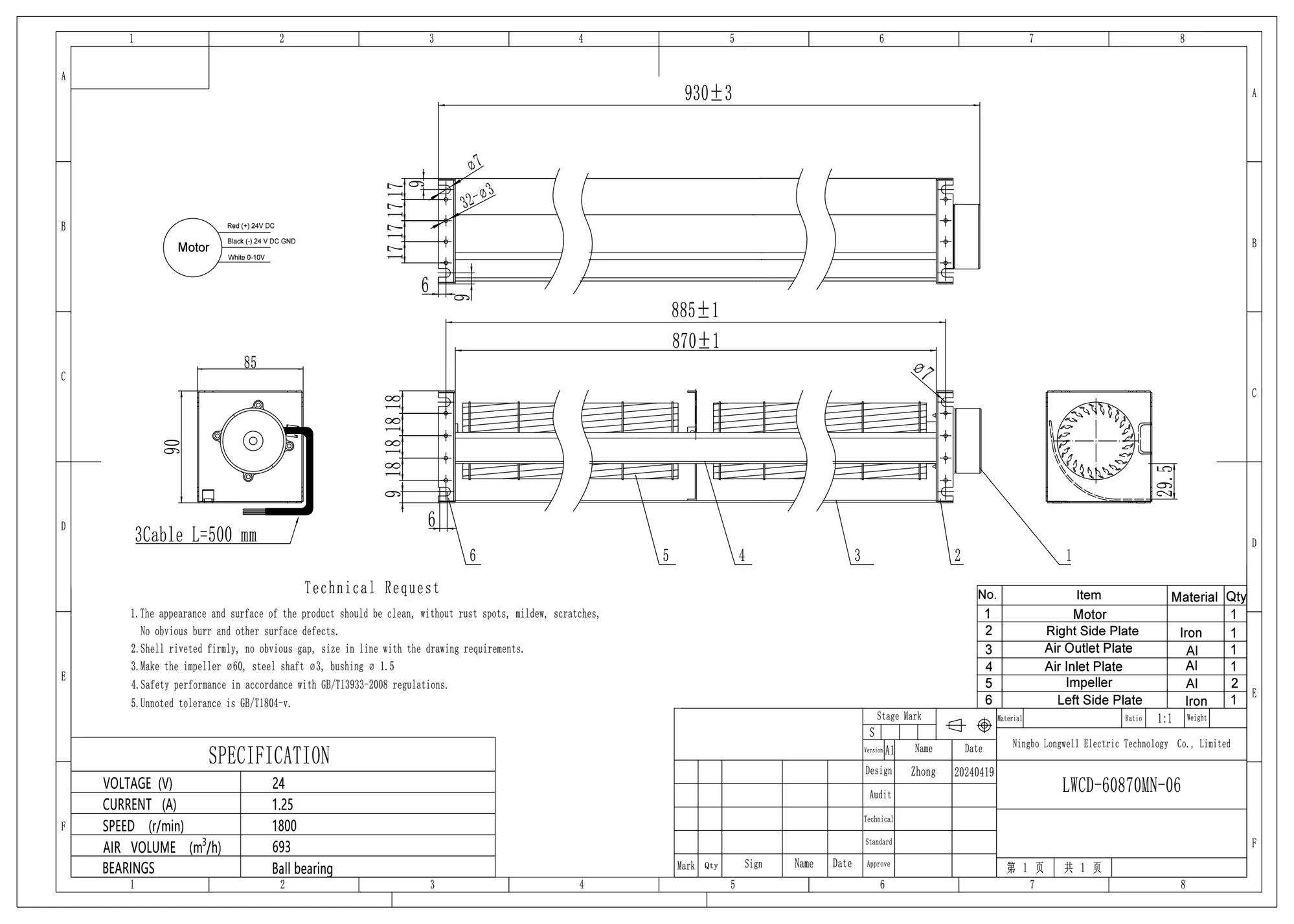

LWCD-60870MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWCD-60870MN-06

PDFDatasheet PDFDrawing · 222 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-60870MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø60 mm, rated 24 V DC, maximum airflow 693 m³/h, maximum static pressure 32 Pa, noise 50 dB(A), input power 30 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-60870MN-06
Series	LWCD60870
Motor type	DC
Inlet	Dual inlet
Rated voltage	24 V
Current	1.25 A
Input power	30 W
Speed	1,800 rpm
Max. airflow	693 m³/h
Max. static pressure	32 Pa
Noise	50 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø60 mm
Outlet length	870mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD60870: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø60 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-60870MN-06 this model	693 m³/h	32 Pa	1,800 rpm	30 W	50 dB(A)	24 V
LWCD-60240MN-07	203 m³/h	32 Pa	2,000 rpm	10.08 W	39 dB(A)	24 V	View
LWCD-60300MN-07	207 m³/h	34 Pa	2,000 rpm	11.04 W	41 dB(A)	24 V	View
LWCD-60300LN-06	207 m³/h	34 Pa	2,000 rpm	9.6 W	41 dB(A)	12 V	View
LWCD-60360MN-07	240 m³/h	34 Pa	2,000 rpm	12.24 W	42 dB(A)	24 V	View
LWCD-60360LN-06	240 m³/h	34 Pa	2,000 rpm	11.4 W	42 dB(A)	12 V	View
LWCD-60420MN-07	355 m³/h	35 Pa	2,000 rpm	12.72 W	43 dB(A)	24 V	View
LWCD-60420LN-06	355 m³/h	35 Pa	2,000 rpm	1.32 W	43 dB(A)	12 V	View
LWCD-60520MN-06	414 m³/h	28 Pa	1,800 rpm	24.9 W	45 dB(A)	24 V	View
LWCD-60610MN-06	486 m³/h	29 Pa	1,800 rpm	26.4 W	46 dB(A)	24 V	View
LWCD-60640MN-06	510 m³/h	29 Pa	1,800 rpm	27.12 W	47 dB(A)	24 V	View
LWCD-60700MN-06	558 m³/h	30 Pa	1,800 rpm	28.08 W	47 dB(A)	24 V	View
LWCD-60750MN-06	597 m³/h	31 Pa	1,800 rpm	28.8 W	48 dB(A)	24 V	View
LWCD-601100MN-06	857 m³/h	34 Pa	1,800 rpm	31.2 W	51 dB(A)	24 V	View
LWCD-601300MN-06	1,012 m³/h	35 Pa	1,800 rpm	32.64 W	52 dB(A)	24 V	View
