  • ImpellerØ60 mm2.4 in
  • Max airflow1,012 m³/h596 CFM
  • Max static pressure35 Pa0.14 in. wg
  • Voltage24 V
  • Speed1,800 rpm
  • Input power32.64 W
  • Noise52 dB(A)

LWCD-601300MN-06 DC Cross Flow Fan Ø60 mm

Ø60 mm | DC | Max airflow 1,012 m³/h | Max static pressure 35 Pa | 52 dB(A)

SKU: LWCD-601300MN-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

LWCD-601300MN-06 — construction, airflow path and running condition.

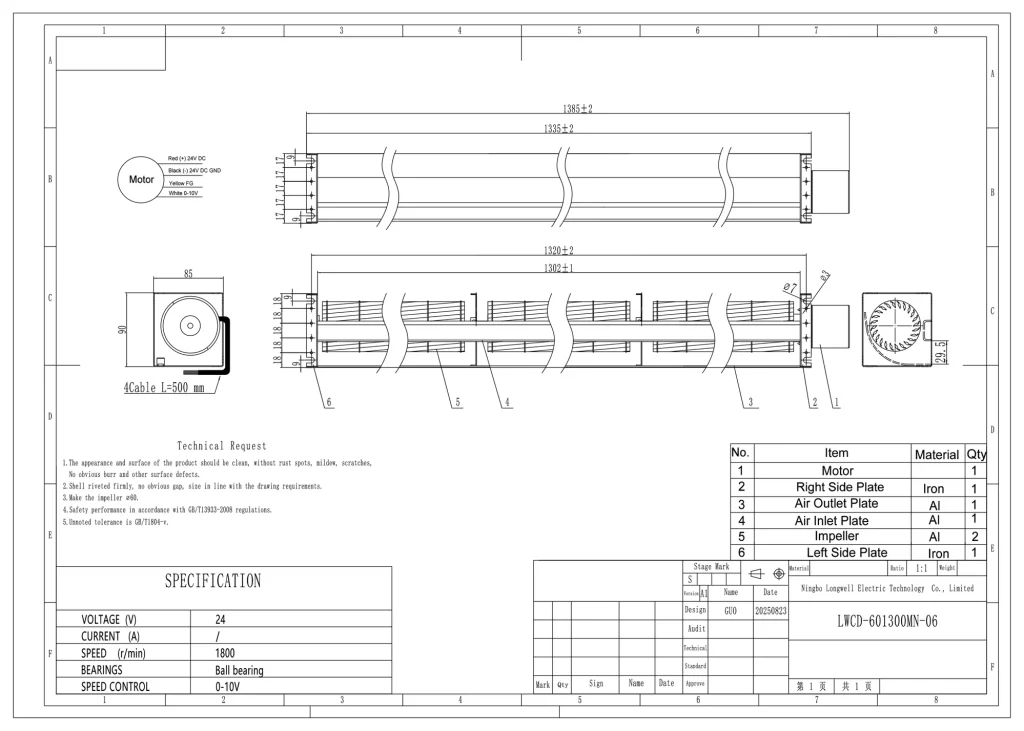

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWCD-601300MN-06 Dimensional drawing

Downloads for LWCD-601300MN-06

PDFDrawing · 210 KBPDFDatasheet · 210 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-601300MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø60 mm, rated 24 V DC, maximum airflow 1,012 m³/h, maximum static pressure 35 Pa, noise 52 dB(A), input power 32.64 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWCD-601300MN-06
Series LWCD60130
Motor type DC
Inlet Triple
Rated voltage 24 V
Current 1.36 A
Input power 32.64 W
Speed 1,800 rpm
Max. airflow 1,012 m³/h
Max. static pressure 35 Pa
Noise 52 dB(A)
Ambient temperature -25 ~ 60 °C
Impeller diameter Ø60 mm
Outlet length 1305mm
Impeller material Aluminum alloy
Insulation class B
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Indoor air-conditioning units
  • Air curtains and door air barriers
  • Elevator and cabinet ventilation
  • Linear air supply in appliances

Series LWCD60130: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø60 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWCD-601300MN-06 this model 1,012 m³/h35 Pa 1,800 rpm32.64 W52 dB(A)24 V
LWCD-60240MN-07 203 m³/h32 Pa 2,000 rpm10.08 W39 dB(A)24 V View
LWCD-60300MN-07 207 m³/h34 Pa 2,000 rpm11.04 W41 dB(A)24 V View
LWCD-60300LN-06 207 m³/h34 Pa 2,000 rpm9.6 W41 dB(A)12 V View
LWCD-60360MN-07 240 m³/h34 Pa 2,000 rpm12.24 W42 dB(A)24 V View
LWCD-60360LN-06 240 m³/h34 Pa 2,000 rpm11.4 W42 dB(A)12 V View
LWCD-60420MN-07 355 m³/h35 Pa 2,000 rpm12.72 W43 dB(A)24 V View
LWCD-60420LN-06 355 m³/h35 Pa 2,000 rpm1.32 W43 dB(A)12 V View
LWCD-60520MN-06 414 m³/h28 Pa 1,800 rpm24.9 W45 dB(A)24 V View
LWCD-60610MN-06 486 m³/h29 Pa 1,800 rpm26.4 W46 dB(A)24 V View
LWCD-60640MN-06 510 m³/h29 Pa 1,800 rpm27.12 W47 dB(A)24 V View
LWCD-60700MN-06 558 m³/h30 Pa 1,800 rpm28.08 W47 dB(A)24 V View
LWCD-60750MN-06 597 m³/h31 Pa 1,800 rpm28.8 W48 dB(A)24 V View
LWCD-60870MN-06 693 m³/h32 Pa 1,800 rpm30 W50 dB(A)24 V View
LWCD-601100MN-06 857 m³/h34 Pa 1,800 rpm31.2 W51 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
