ImpellerØ65 mm2.6 in
Max airflow819 m³/h482 CFM
Max static pressure55 Pa0.22 in. wg
Voltage12 V
Speed1,800 rpm
Input power31.2 W
Noise53 dB(A)

LWCD-65720LN-06 DC Cross Flow Fan Ø65 mm

Ø65 mm | DC | Max airflow 819 m³/h | Max static pressure 55 Pa | 53 dB(A)

SKU: LWCD-65720LN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø60–150 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

Get a quote · LWCD-65720LN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWCD-65720LN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWCD-65720LN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-65720LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø65 mm, rated 12 V DC, maximum airflow 819 m³/h, maximum static pressure 55 Pa, noise 53 dB(A), input power 31.2 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-65720LN-06
Series	LWCD65720
Motor type	DC
Inlet	Dual inlet
Rated voltage	12 V
Current	2.6 A
Input power	31.2 W
Speed	1,800 rpm
Max. airflow	819 m³/h
Max. static pressure	55 Pa
Noise	53 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø65 mm
Outlet length	720mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD65720: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø65 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

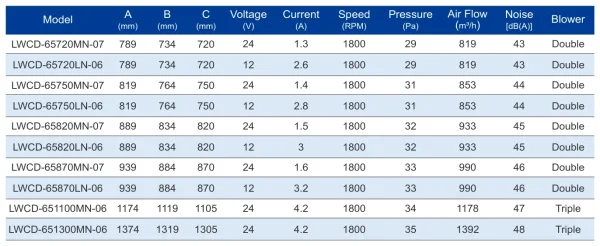

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-65720LN-06 this model	819 m³/h	55 Pa	1,800 rpm	31.2 W	53 dB(A)	12 V
LWCD-65420MN-07	500 m³/h	44 Pa	1,800 rpm	21.6 W	52 dB(A)	24 V	View
LWCD-65520MN-07	606 m³/h	52 Pa	1,800 rpm	28.8 W	53 dB(A)	24 V	View
LWCD-65520LN-06	606 m³/h	52 Pa	1,800 rpm	32.4 W	53 dB(A)	12 V	View
LWCD-65620LN-06	722 m³/h	53 Pa	1,800 rpm	30 W	53 dB(A)	12 V	View
LWCD-65620MN-07	722 m³/h	53 Pa	1,800 rpm	38.4 W	53 dB(A)	24 V	View
LWCD-65720MN-07	819 m³/h	55 Pa	1,800 rpm	31.2 W	53 dB(A)	24 V	View
LWCD-65750LN-06	853 m³/h	56 Pa	1,800 rpm	33.6 W	54 dB(A)	12 V	View
LWCD-65750MN-07	853 m³/h	56 Pa	1,800 rpm	39.6 W	54 dB(A)	24 V	View
LWCD-65820LN-06	933 m³/h	56 Pa	1,800 rpm	36 W	55 dB(A)	12 V	View
LWCD-65820MN-07	933 m³/h	56 Pa	1,800 rpm	36 W	55 dB(A)	24 V	View
LWCD-65870LN-06	990 m³/h	58 Pa	1,800 rpm	38.4 W	55 dB(A)	12 V	View
LWCD-65870MN-07	990 m³/h	58 Pa	1,800 rpm	38.4 W	55 dB(A)	24 V	View
LWCD-651100MN-06	1,178 m³/h	58 Pa	1,800 rpm	100.8 W	55 dB(A)	24 V	View
LWCD-651300MN-06	1,392 m³/h	58 Pa	1,800 rpm	100.8 W	55 dB(A)	24 V	View
