- ImpellerØ65 mm2.6 in
- Max airflow853 m³/h483 CFM
- Max static pressure56 Pa0.22 in. wg
- Voltage24 V
- Speed1,800 rpm
- Input power39.6 W
- Noise54 dB(A)
LWCD-65750MN-07 DC Cross Flow Fan Ø65 mm
Ø65 mm | DC | Max airflow 853 m³/h | Max static pressure 56 Pa | 54 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-65750MN-07
LWCD-65750MN-07 — construction, airflow path and running condition.

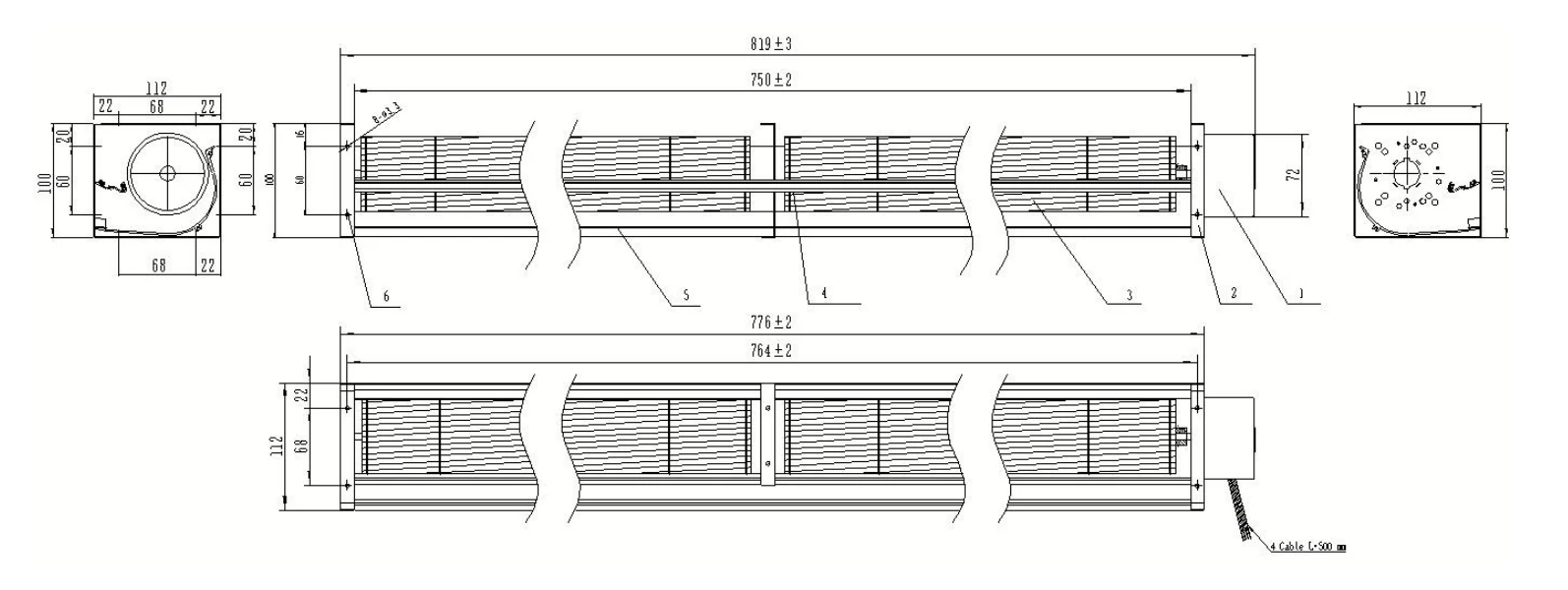

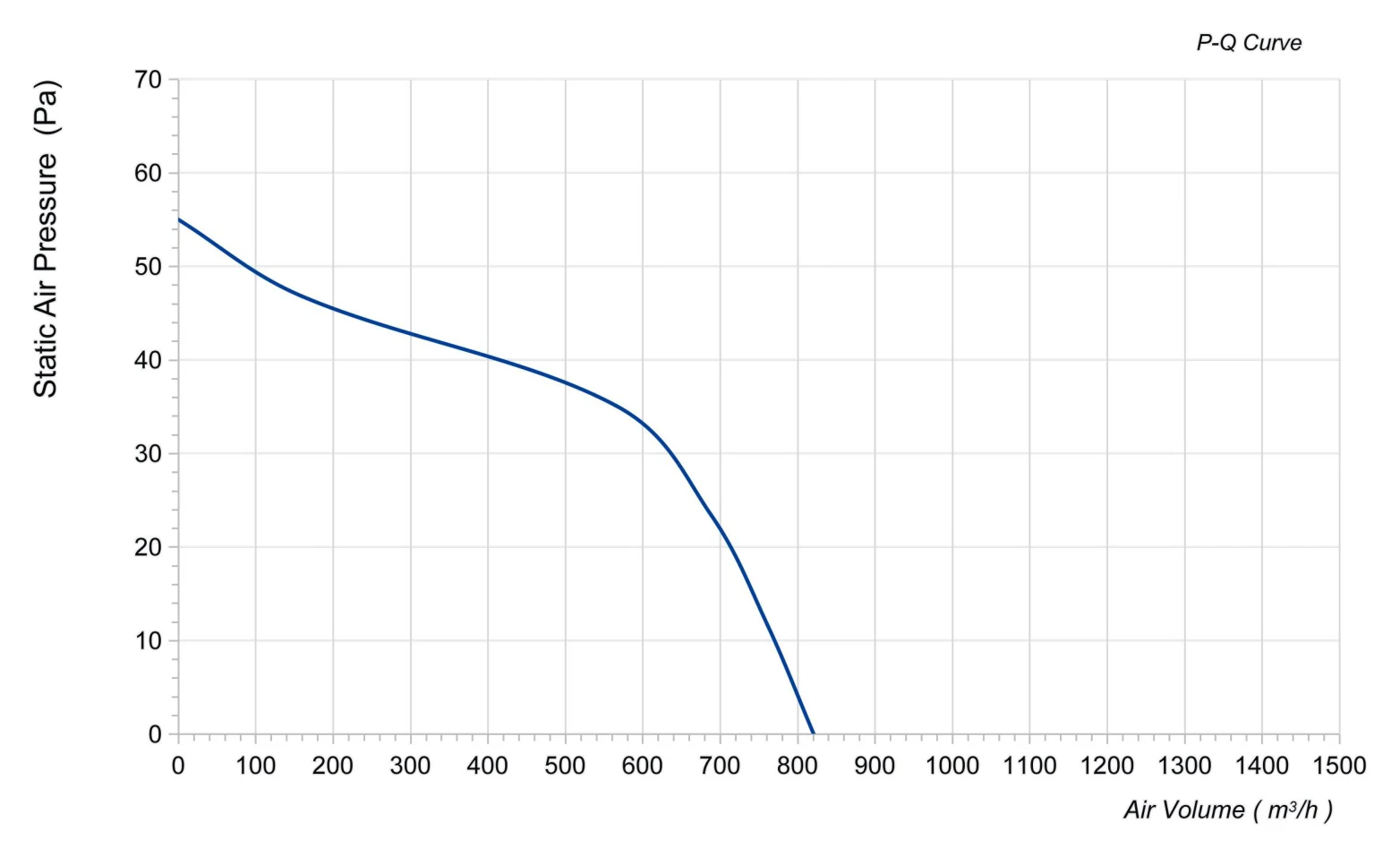

Drawing & Curve LWCD-65750MN-07
Files for LWCD-65750MN-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCD-65750MN-07
LWCD-65750MN-07 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø65 mm, rated 24 V DC, maximum airflow 853 m³/h, maximum static pressure 56 Pa, noise 54 dB(A), input power 39.6 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-65750MN-07 |
|---|---|
| Series | LWCD65750 |
| Motor type | DC |
| Inlet | Dual inlet |
| Rated voltage | 24 V |
| Current | 1.4 A |
| Input power | 39.6 W |
| Speed | 1,800 rpm |
| Max. airflow | 853 m³/h |
| Max. airflow (CFM) | 483 CFM |
| Max. static pressure | 56 Pa |
| Noise | 54 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø65 mm |
| Outlet length | 750mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy 30,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment Operating temperature: -20~50 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -25~60 °C |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T8689 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD65750: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
