- ImpellerØ80 mm3.1 in
- Max airflow450 m³/h265 CFM
- Max static pressure40 Pa0.16 in. wg
- Voltage230 V
- Speed1,500 rpm
- Input power16 W
- Noise51 dB(A)

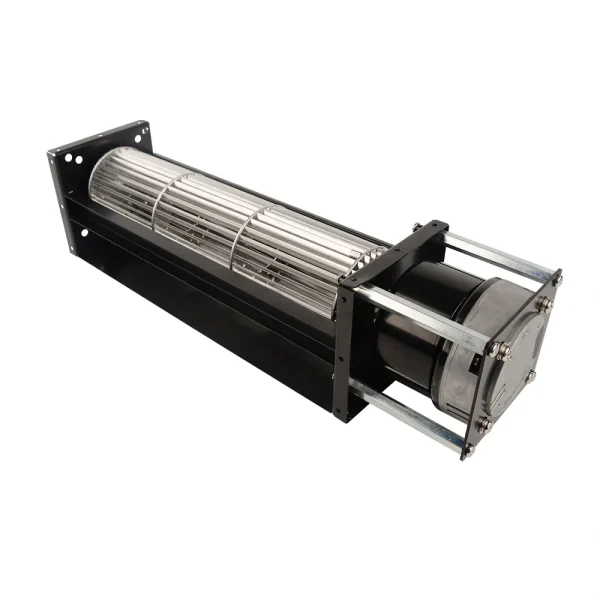

LWCE-80350SN-06 EC Cross Flow Fan Ø80 mm
Ø80 mm | EC | Max airflow 450 m³/h | Max static pressure 40 Pa | 51 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

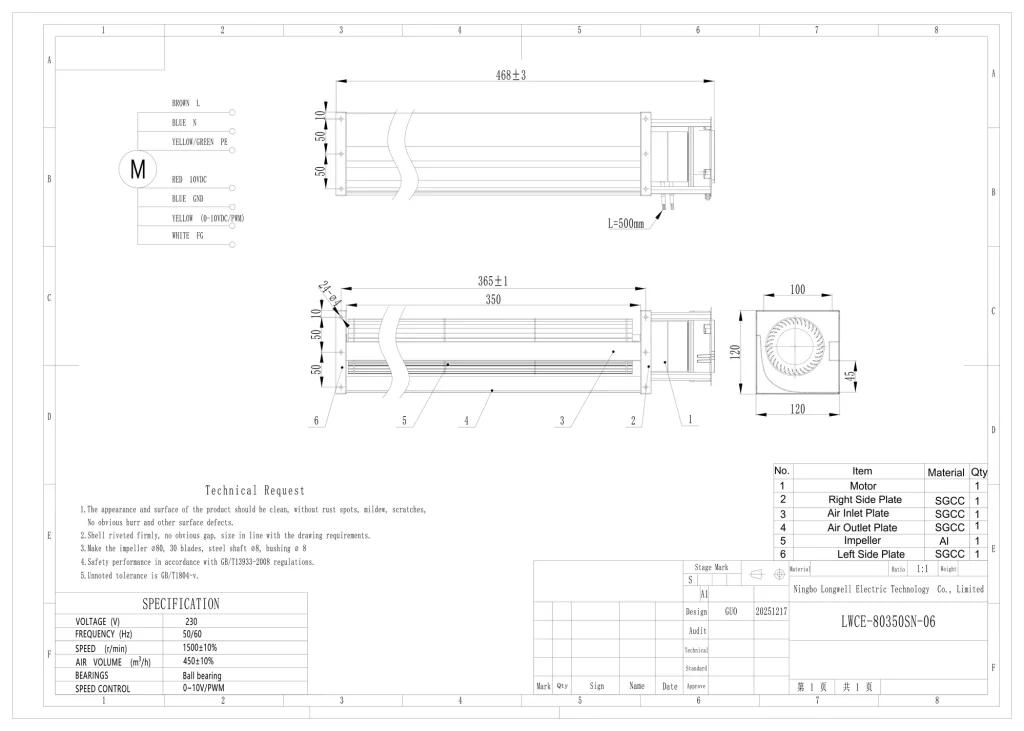

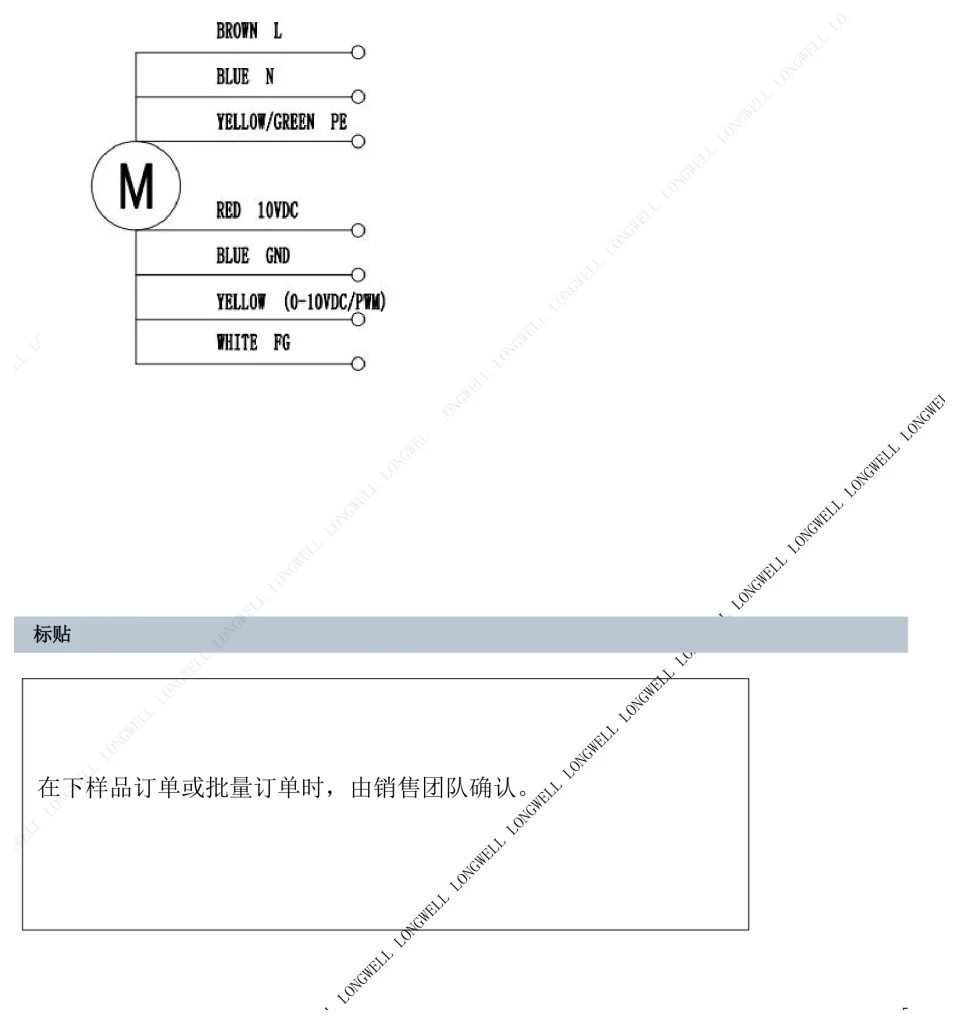

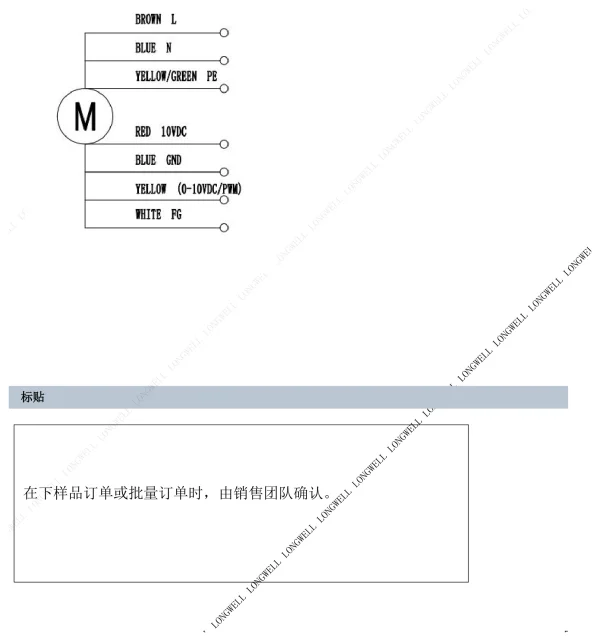

Drawing & Wiring LWCE-80350SN-06
Files for LWCE-80350SN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCE-80350SN-06
LWCE-80350SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø80 mm, rated 230 V EC, maximum airflow 450 m³/h, maximum static pressure 40 Pa, noise 51 dB(A), input power 16 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-80350SN-06 |
|---|---|
| Series | LWCE80350 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 16 W |
| Speed | 1,500 rpm |
| Max. airflow | 450 m³/h |
| Max. static pressure | 40 Pa |
| Noise | 51 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø80 mm |
| Outlet length | 350mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE80350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
