Downloads for LWCE-80720SN-06
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ80 mm
- Max airflow980 m³/h
- Max static pressure81 Pa
- Voltage230 V
- Speed1,500 rpm
- Input power39 W
- Noise55 dB(A)

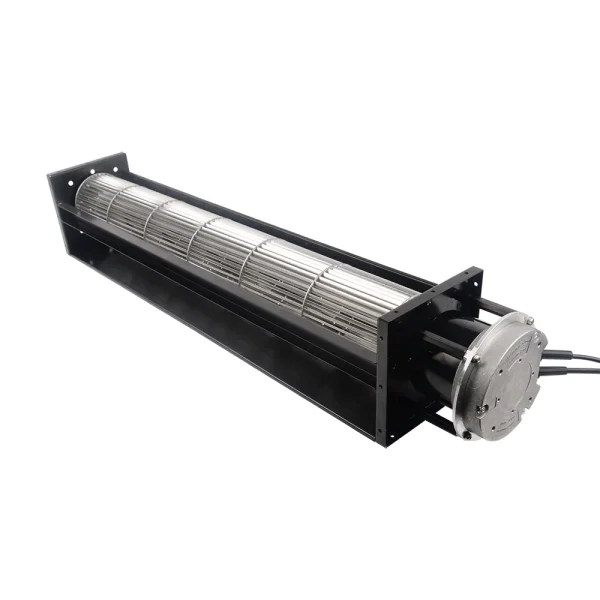

LWCE-80720SN-06 EC Cross Flow Fan Ø80 mm
Ø80 mm | EC | Max airflow 980 m³/h | Max static pressure 81 Pa | 55 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

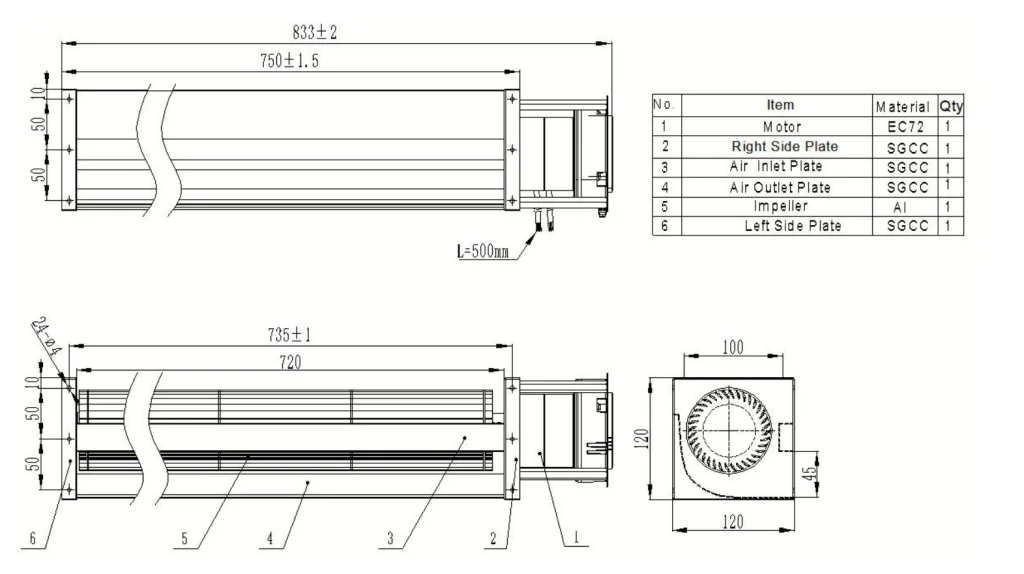

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

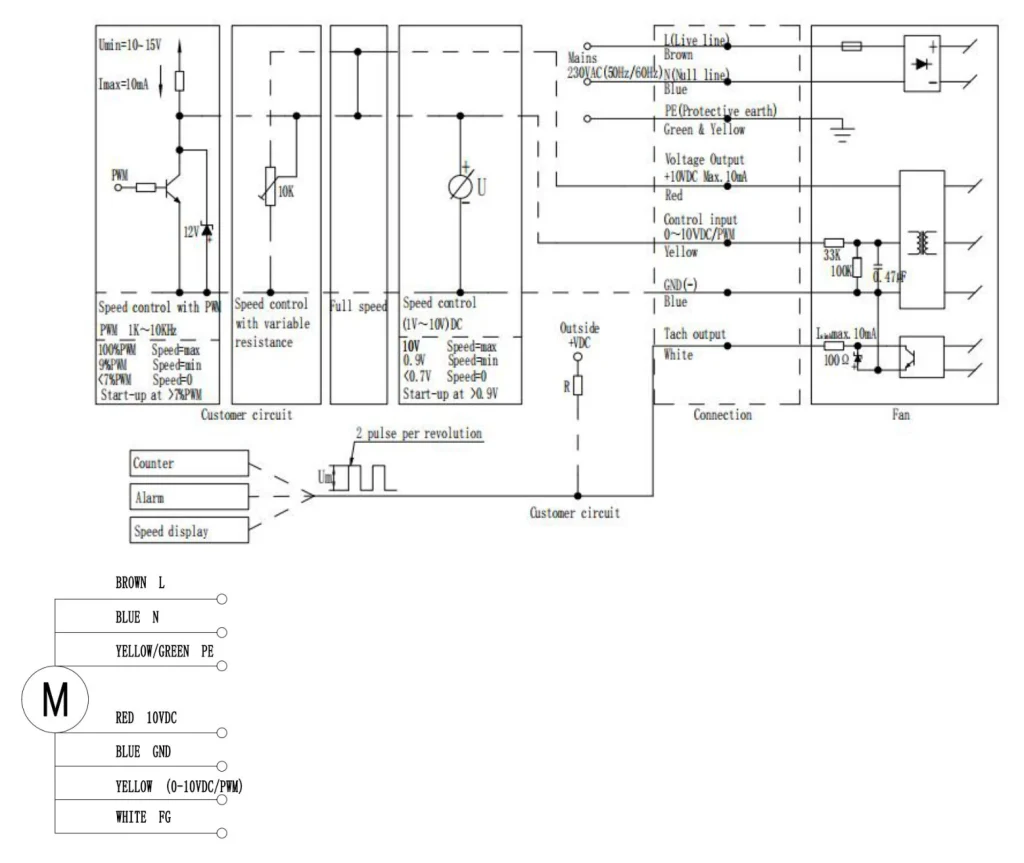

LWCE-80720SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø80 mm, rated 230 V EC, maximum airflow 980 m³/h, maximum static pressure 81 Pa, noise 55 dB(A), input power 39 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-80720SN-06 |
|---|---|
| Series | LWCE80720 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 39 W |
| Speed | 1,500 rpm |
| Max. airflow | 980 m³/h |
| Max. airflow (CFM) | 576 CFM |
| Max. static pressure | 81 Pa |
| Noise | 55 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø80 mm |
| Outlet length | 720mm |
| Impeller material | SGCC ( Impeller ); cold-rolled sheet (frame) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE80720: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø80 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-80720SN-06 this model | 980 m³/h | 81 Pa | 1,500 rpm | 39 W | 55 dB(A) | 230 V | |
| LWAE8025SL-03 | 26.16 m³/h | 32.23 Pa | 3,500 rpm | — | 24 dB(A) | 100-240 V | View |
| LWAE8025SM-02 | 33.06 m³/h | 46.35 Pa | 4,000 rpm | — | 27 dB(A) | 100-240 V | View |
| LWAE8038SL-03 | 34.26 m³/h | 47.65 Pa | 3,000 rpm | — | 24 dB(A) | 100-240 V | View |
| LWAE8038SM-02 | 38.86 m³/h | 67.05 Pa | 3,500 rpm | — | 27 dB(A) | 100-240 V | View |
| LWAE8025SH-01 | 39.84 m³/h | 67.16 Pa | 4,500 rpm | — | 31 dB(A) | 100-240 V | View |
| LWAE8038SH-01 | 41.79 m³/h | 77.18 Pa | 4,000 rpm | — | 31 dB(A) | 100-240 V | View |
| LWCE-80350SN-06 | 450 m³/h | 40 Pa | 1,500 rpm | 16 W | 51 dB(A) | 230 V | View |
| LWCE-80520SN-06 | 650 m³/h | 59 Pa | 1,500 rpm | 23 W | 53 dB(A) | 230 V | View |
| LWCE-80620SN-06 | 800 m³/h | 70 Pa | 1,500 rpm | 31 W | 54 dB(A) | 230 V | View |
| LWCE-80820SN-06 | 1,200 m³/h | 93 Pa | 1,500 rpm | 52 W | 56 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
