ImpellerØ125 mm4.9 in
Max airflow410 m³/h241 CFM
Voltage110-120 V
Speed3,350 rpm
Input power41 W
Noise52 dB(A)

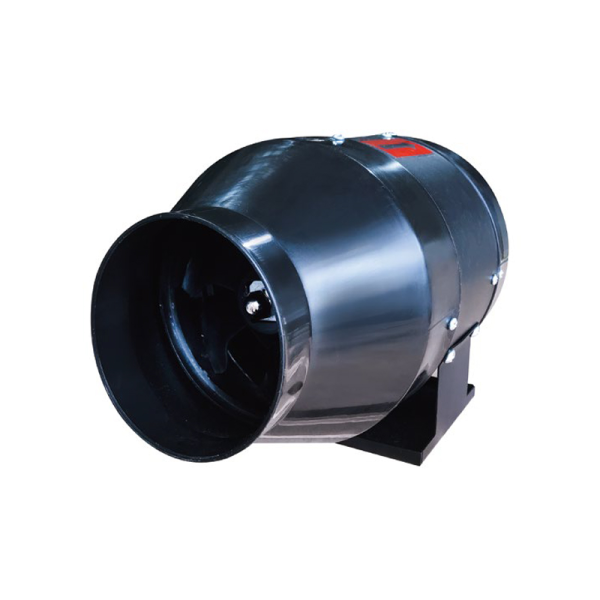

LWDA-125 (5″)U-PWN-01 AC Mixed Flow Fan Ø125 mm

Ø125 mm | AC | Max airflow 410 m³/h | 52 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWDA-125 (5")U-PWN-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWDA-125 (5")U-PWN-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

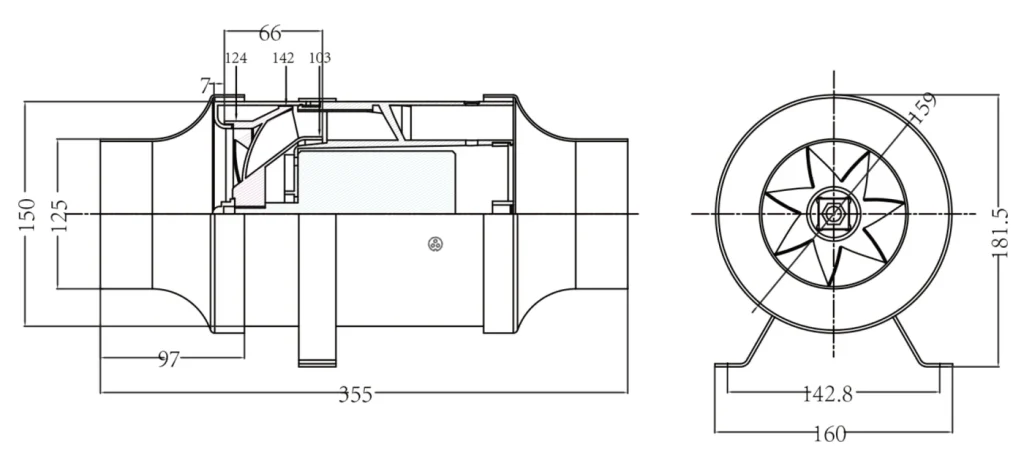

LWDA-125 (5")U-PWN-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-125 (5")U-PWN-01 is a LONGWELL AC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø125 mm, rated 110-120 V AC, maximum airflow 410 m³/h, noise 52 dB(A), input power 41 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-125 (5")U-PWN-01
Series	LWDA125
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	60 Hz
Input power	41 W
Speed	3,350 rpm
Max. airflow	410 m³/h
Noise	52 dB(A)
Impeller diameter	Ø125 mm
Inlet diameter	125mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø125 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDA-125 (5")U-PWN-01 this model	410 m³/h	see curve	3,350 rpm	41 W	52 dB(A)	110-120 V
LWDA-125(5")U-PWN-09	293 m³/h	137 Pa	1,950 rpm	29 W	30 dB(A)	115 V	View
LWDA-125(5")S-PWN-07	293 m³/h	137 Pa	1,950 rpm	28 W	30 dB(A)	230 V	View
LWDA-125S-MBN-10	294 m³/h	326 Pa	2,350 rpm	52 W	60 dB(A)	230 V	View
LWDA-125S-PWN-11	319 m³/h	185 Pa	2,550 rpm	40 W	25 dB(A)	230 V	View
LWDA-125(5")U-PWN-08	330 m³/h	168 Pa	2,360 rpm	37 W	31 dB(A)	115 V	View
LWDA-125(5")S-PWN-06	330 m³/h	168 Pa	2,360 rpm	39 W	31 dB(A)	230 V	View
LWDA-125 (5")U-MWN-03	410 m³/h	see curve	3,350 rpm	41 W	51 dB(A)	110-120 V	View
LWDA-125 (5")S-PWN-02	605 m³/h	168 Pa	2,900 rpm	41 W	51 dB(A)	220-240 V	View
LWDA-125 (5")S-MWN-04	605 m³/h	see curve	2,900 rpm	41 W	49 dB(A)	220-240 V	View
