ImpellerØ125 mm4.9 in
Max airflow605 m³/h356 CFM
Voltage220-240 V
Speed2,900 rpm
Input power41 W
Noise49 dB(A)

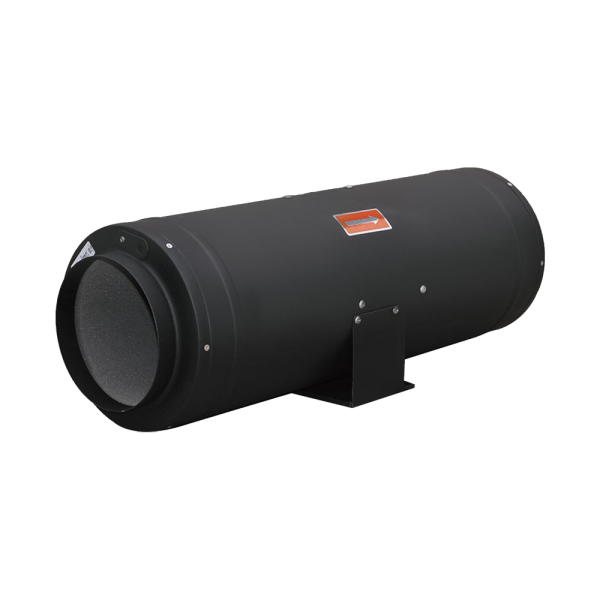

LWDA-125 (5″)S-MWN-04 AC Ultra Silent Metal Duct Fan Ø125 mm

Ø125 mm | AC | Max airflow 605 m³/h | 49 dB(A)

SKU: LWDA-125 (5")S-MWN-04 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Ultra Silent Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWDA-125 (5")S-MWN-041 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Central ventilation units Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDA-125 (5")S-MWN-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDA-125 (5")S-MWN-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Video LWDA-125 (5")S-MWN-04

LONGWELL 5” AC Inline Duct Fan Performance Test | LWDA-125 series · open in video library

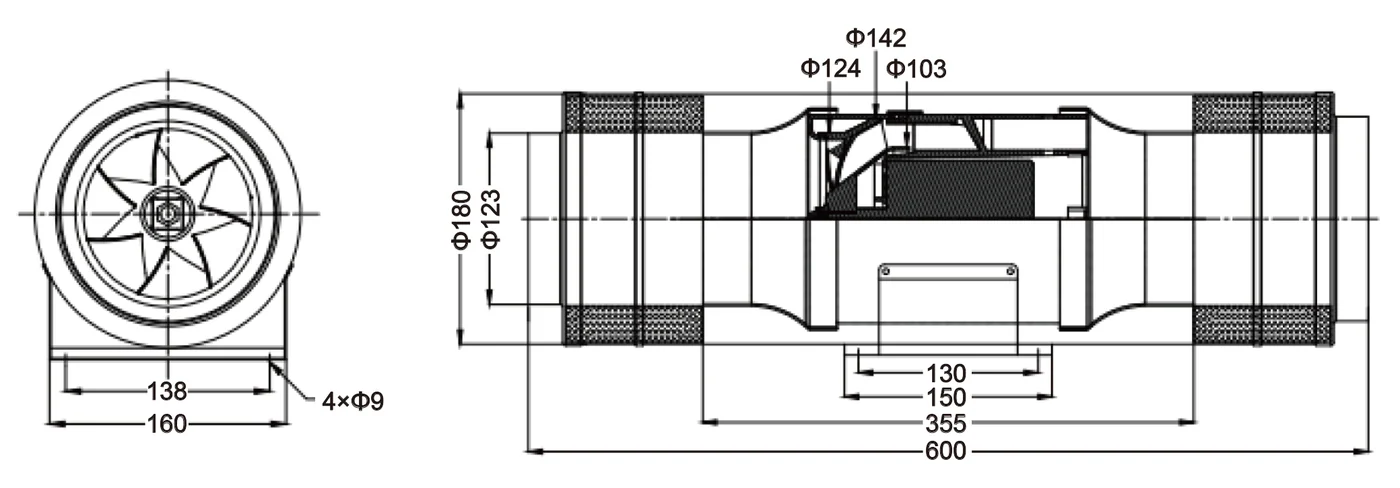

Dimensional drawing LWDA-125 (5")S-MWN-04

LWDA-125 (5")S-MWN-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWDA-125 (5")S-MWN-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-125 (5")S-MWN-04

LWDA-125 (5")S-MWN-04 is a LONGWELL AC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø125 mm, rated 220-240 V AC, maximum airflow 605 m³/h, noise 49 dB(A), input power 41 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-125 (5")S-MWN-04
Series	LWDA125
Motor type	AC
Phase	1-phase
Rated voltage	220-240 V
Frequency	50 Hz
Input power	41 W
Speed	2,900 rpm
Max. airflow	605 m³/h
Noise	49 dB(A)
Impeller diameter	Ø125 mm
Inlet diameter	125mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWDA-125 (5")S-MWN-04

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø125 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDA-125 (5")S-MWN-04 this model	605 m³/h	see curve	2,900 rpm	41 W	49 dB(A)	220-240 V
LWDA-125(5")U-PWN-09	293 m³/h	137 Pa	1,950 rpm	29 W	30 dB(A)	115 V	View
LWDA-125(5")S-PWN-07	293 m³/h	137 Pa	1,950 rpm	28 W	30 dB(A)	230 V	View
LWDA-125S-MBN-10	294 m³/h	326 Pa	2,350 rpm	52 W	60 dB(A)	230 V	View
LWDA-125S-PWN-11	319 m³/h	185 Pa	2,550 rpm	40 W	25 dB(A)	230 V	View
LWDA-125(5")U-PWN-08	330 m³/h	168 Pa	2,360 rpm	37 W	31 dB(A)	115 V	View

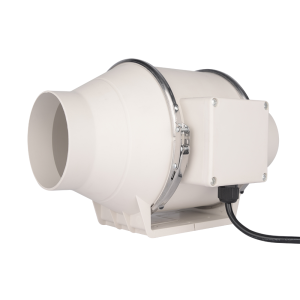

LWDA-125(5")S-PWN-06	330 m³/h	168 Pa	2,360 rpm	39 W	31 dB(A)	230 V	View
LWDA-125 (5")U-PWN-01	410 m³/h	see curve	3,350 rpm	41 W	52 dB(A)	110-120 V	View
LWDA-125 (5")U-MWN-03	410 m³/h	see curve	3,350 rpm	41 W	51 dB(A)	110-120 V	View
LWDA-125 (5")S-PWN-02	605 m³/h	168 Pa	2,900 rpm	41 W	51 dB(A)	220-240 V	View
