- ImpellerØ125 mm4.9 in
- Max airflow410 m³/h241 CFM
- Voltage110-120 V
- Speed3,350 rpm
- Input power35 W
- Noise52 dB(A)
LWDE-125 (5″)U-PWN-01 EC Mixed Flow Fan Ø125 mm
Ø125 mm | EC | Max airflow 410 m³/h | 52 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWDE-125 (5")U-PWN-01 is a LONGWELL EC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø125 mm, rated 110-120 V EC, maximum airflow 410 m³/h, noise 52 dB(A), input power 35 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-125 (5")U-PWN-01 |
|---|---|
| Series | LWDE125 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 110-120 V |
| Frequency | 60 Hz |
| Input power | 35 W |
| Speed | 3,350 rpm |
| Max. airflow | 410 m³/h |
| Noise | 52 dB(A) |
| Impeller diameter | Ø125 mm |
| Inlet diameter | 125mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø125 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDE-125 (5")U-PWN-01 this model | 410 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 110-120 V | |
| LWDE-125S-MBN-06 | 386 m³/h | 839 Pa | 3,400 rpm | 85 W | 69 dB(A) | 230 V | View |
| LWDE-125 (5")U-MWN-03 | 410 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 110-120 V | View |
| LWDE-125 (5")S-PWN-02 | 697 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 220-240 V | View |
| LWDE-125 (5")S-MWN-04 | 697 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 220-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWDE125 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWDE3G150-IS-03Ø147 mm · 705 m³/h · 465 Pa · ECadjacent size
LWDE3G150-IS-01Ø147 mm · 705 m³/h · 465 Pa · ECadjacent size
LWDA-100S-PWN-15Ø100 mm · 319 m³/h · 185 Pa · ACadjacent size

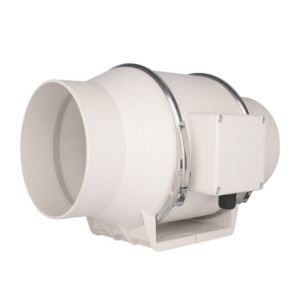

LWDA-150(6")U-PWN-13Ø150 mm · 674 m³/h · 355 Pa · ACadjacent sizeLWDA-150(6")U-PWN-14Ø150 mm · 535 m³/h · 302 Pa · ACadjacent size
