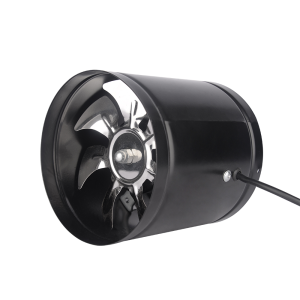

LWDA series product photo (series image)

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ180 mm7.1 in
Max airflow1,000 m³/h589 CFM
Max static pressure90 Pa0.36 in. wg
Voltage220 V
Speed2,800 rpm
Input power60 W
Noise58 dB(A)

LWDA-180(7″)S-MWN-01 Duct Booster Fan Ø180 mm

Ø180 mm | AC | Max airflow 1,000 m³/h | Max static pressure 90 Pa | 58 dB(A)

SKU: LWDA-180(7")S-MWN-01 Category: Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueStraight Through duct fans · SKU on PDF p. 1

All files for LWDA-180(7")S-MWN-014 files · direct download

PDFFull product catalogue · model on PDF p. 1 WEBPDimensional drawing PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDA-180(7")S-MWN-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDA-180(7")S-MWN-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

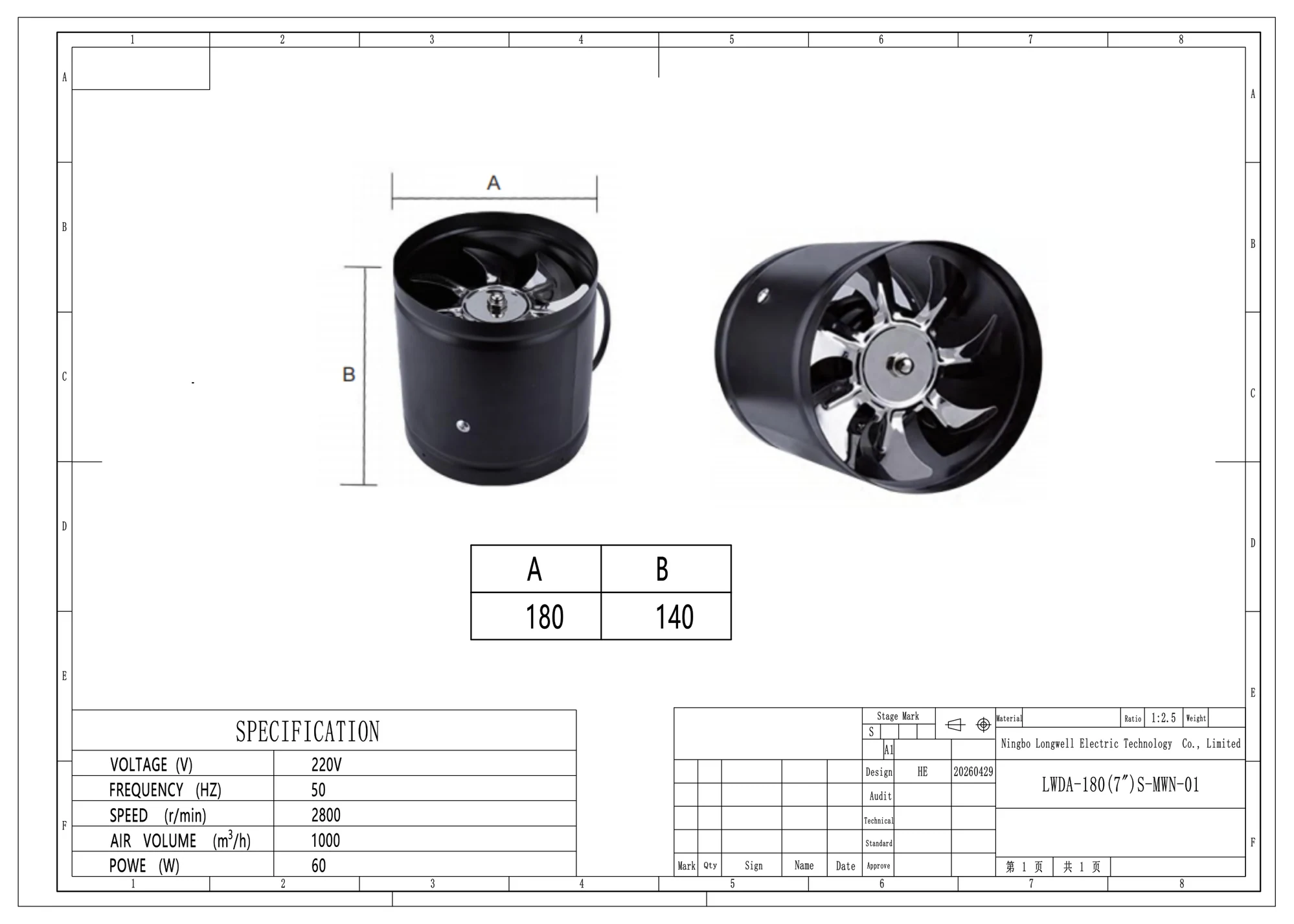

Dimensional drawing LWDA-180(7")S-MWN-01

LWDA-180(7")S-MWN-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWDA-180(7")S-MWN-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-180(7")S-MWN-01

LWDA-180(7")S-MWN-01 is a LONGWELL Duct Booster Fan from the Inline Duct Fans range, impeller Ø180 mm, rated 220 V AC, maximum airflow 1,000 m³/h, maximum static pressure 90 Pa, noise 58 dB(A), input power 60 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-180(7")S-MWN-01
Series	LWDA180
Motor type	AC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Input power	60 W
Speed	2,800 rpm
Max. airflow	1,000 m³/h
Max. static pressure	90 Pa
Noise	58 dB(A)
Impeller diameter	Ø180 mm
Inlet diameter	180mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
