- ImpellerØ500 mm19.7 in
- Max airflow11,000 m³/h6,474 CFM
- Max static pressure910 Pa3.65 in. wg
- Noise82 dB(A)
LWFA-E-500-02 LWFA Series Direct Drive Centrifugal Blower Ø500 mm
Ø500 mm | AC | Max airflow 11,000 m³/h | Max static pressure 910 Pa | 82 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Performance curve (P-Q) LWFA-E-500-02
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

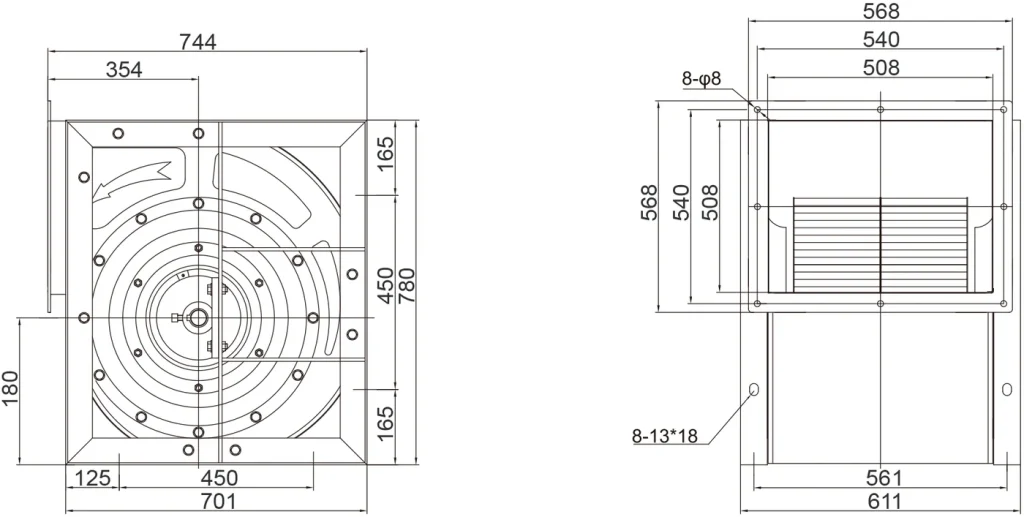

Dimensional drawing LWFA-E-500-02
Files for LWFA-E-500-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA-E-500-02
LWFA-E-500-02 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø500 mm, maximum airflow 11,000 m³/h, maximum static pressure 910 Pa, noise 82 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA-E-500-02 |
|---|---|
| Motor type | AC |
| Max. airflow | 11,000 m³/h |
| Max. static pressure | 910 Pa |
| Noise | 82 dB(A) |
| Impeller diameter | Ø500 mm |
| Blade diameter | 500mm |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
