- ImpellerØ450 mm17.7 in
- Max airflow6,230 m³/h3,667 CFM
- Max static pressure710 Pa2.85 in. wg
- Noise72 dB(A)
LWFA-E-450-01 LWFA Series Direct Drive Centrifugal Blower Ø450 mm
Ø450 mm | AC | Max airflow 6,230 m³/h | Max static pressure 710 Pa | 72 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

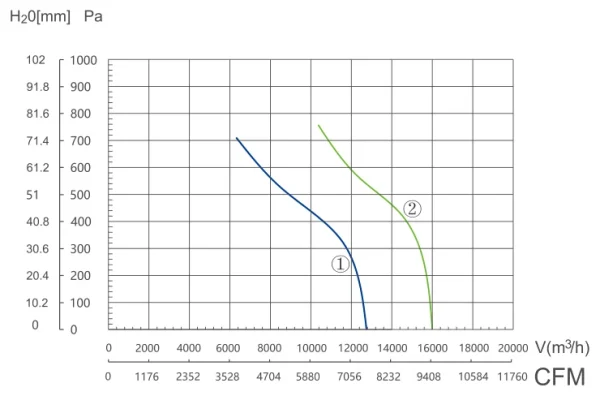

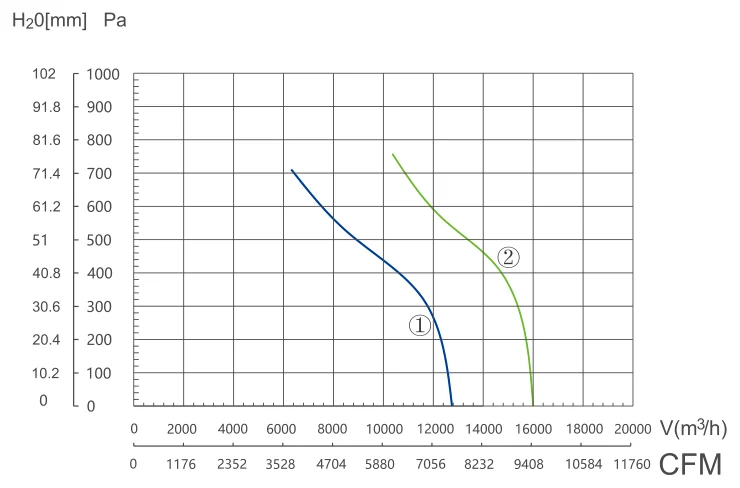

Performance curve (P-Q) LWFA-E-450-01
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

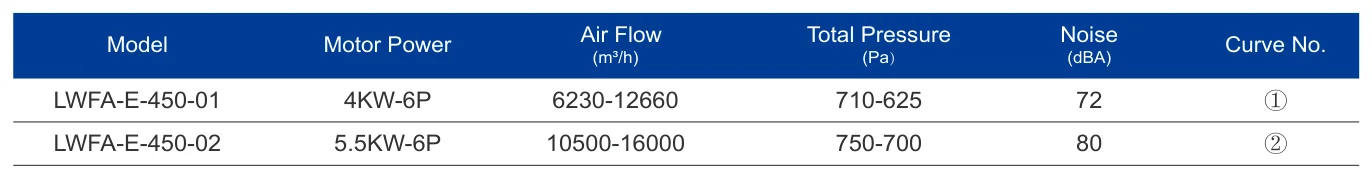

Catalogue table & Curve LWFA-E-450-01
Files for LWFA-E-450-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA-E-450-01
LWFA-E-450-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø450 mm, maximum airflow 6,230 m³/h, maximum static pressure 710 Pa, noise 72 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA-E-450-01 |
|---|---|
| Motor type | AC |
| Max. airflow | 6,230 m³/h |
| Max. static pressure | 710 Pa |
| Noise | 72 dB(A) |
| Impeller diameter | Ø450 mm |
| Blade diameter | 450mm |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWFA-E-450-01
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø450 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA-E-450-01 this model | 6,230 m³/h | 710 Pa | — | — | 72 dB(A) | — | |
| LWFA-E-450-02 | 10,500 m³/h | 750 Pa | — | — | 80 dB(A) | — | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWFA-E-500-02Ø500 mm · 11,000 m³/h · 910 Pa · ACadjacent size
LWFA-E-400-01Ø400 mm · 4,500 m³/h · 612 Pa · ACadjacent size
LWFA-E-400-02Ø400 mm · 5,100 m³/h · 610 Pa · ACadjacent size
LWFA-E-500-01Ø500 mm · 8,380 m³/h · 850 Pa · ACadjacent size
LWFA-E-350-01Ø350 mm · 2,950 m³/h · 370 Pa · ACadjacent size
LWDD12-12-ECØ305 mm · 5,298 m³/h · 437 Pa · ECadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWBE3G355-138PT-12Ø355 mm · 6,249 m³/h · 1,353 Pa · ECsimilar duty
LWBE3G355-138NT-27Ø355 mm · 6,249 m³/h · 1,353 Pa · ECsimilar duty
LWDE-350 (14")S-MWN-02Ø350 mm · 6,200 m³/h · ECsimilar duty
LWDE-355 (14")S-MWN-04Ø355 mm · 6,200 m³/h · ECsimilar duty
LWBE3G355-102NT-25Ø355 mm · 6,180 m³/h · 1,751 Pa · ECsimilar duty
LWFE3G355-102PT-10Ø355 mm · 6,180 m³/h · 1,751 Pa · ECsimilar dutySee all Commercial Centrifugal Blowers · select by duty point
