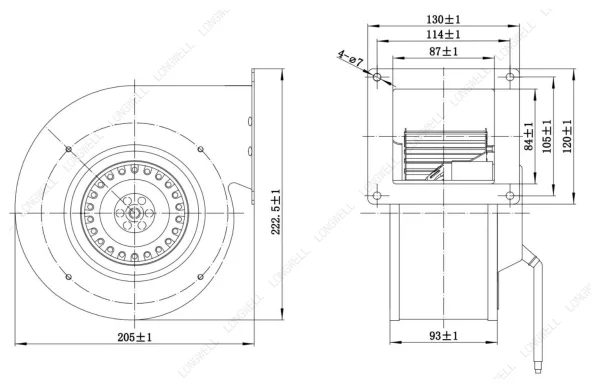

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ133 mm5.2 in
- Max airflow319 m³/h188 CFM
- Max static pressure433 Pa1.74 in. wg
- Voltage230 V
- Speed1,600 rpm
- Input power85 W
- Noise56 dB(A)
LWFA2E133-092SS-03 AC Single Inlet Forward Centrifugal Blower Ø133 mm
Ø133 mm | AC | Max airflow 319 m³/h | Max static pressure 433 Pa | 56 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWFA2E133-092SS-03
LWFA2E133-092SS-03 — construction, airflow path and running condition.
LWFA2E133 Series AC Forward Curved Centrifugal Fan: Efficient & Quiet | LWFA2E133-092SS-03 · open in video library

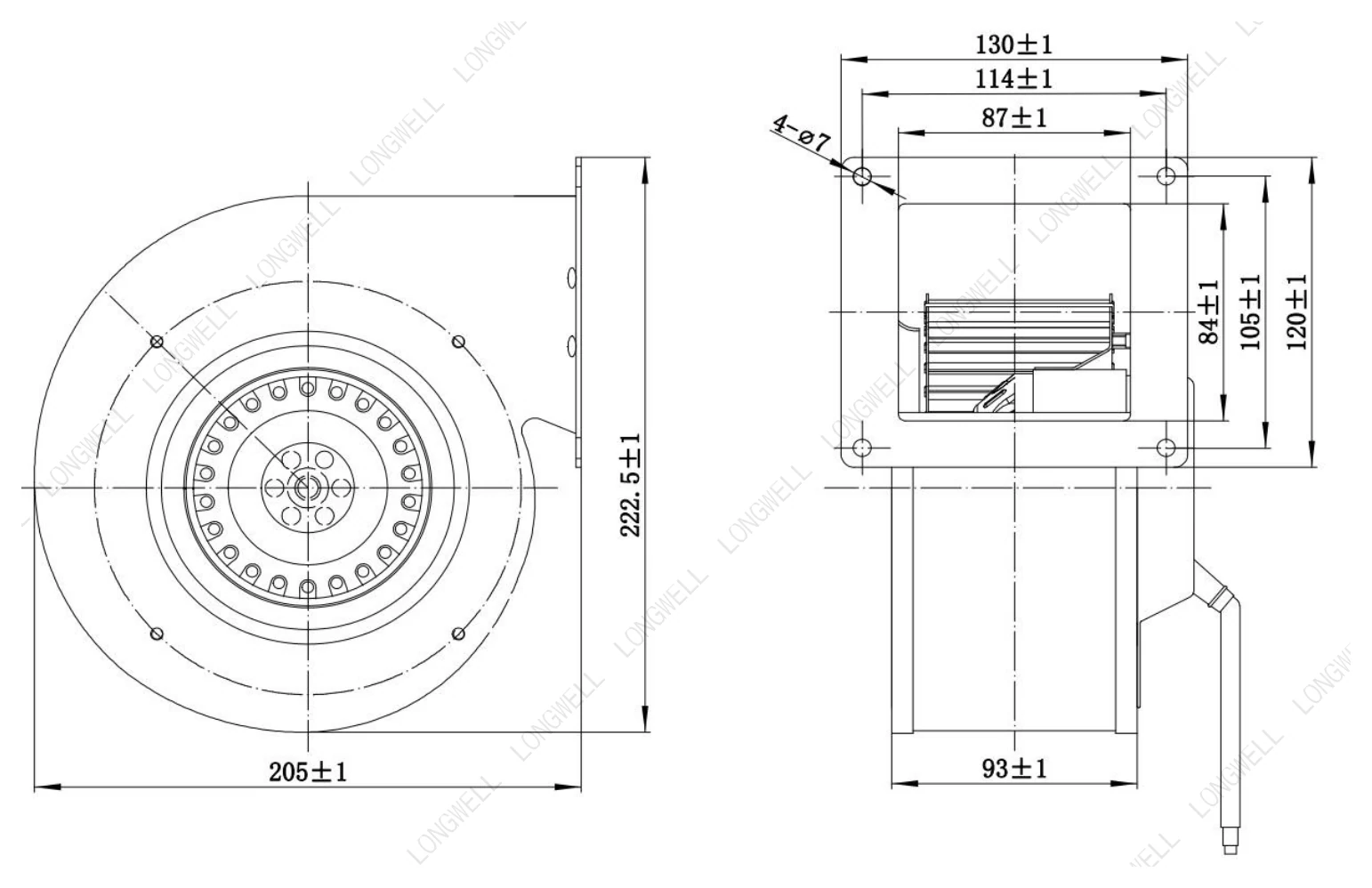

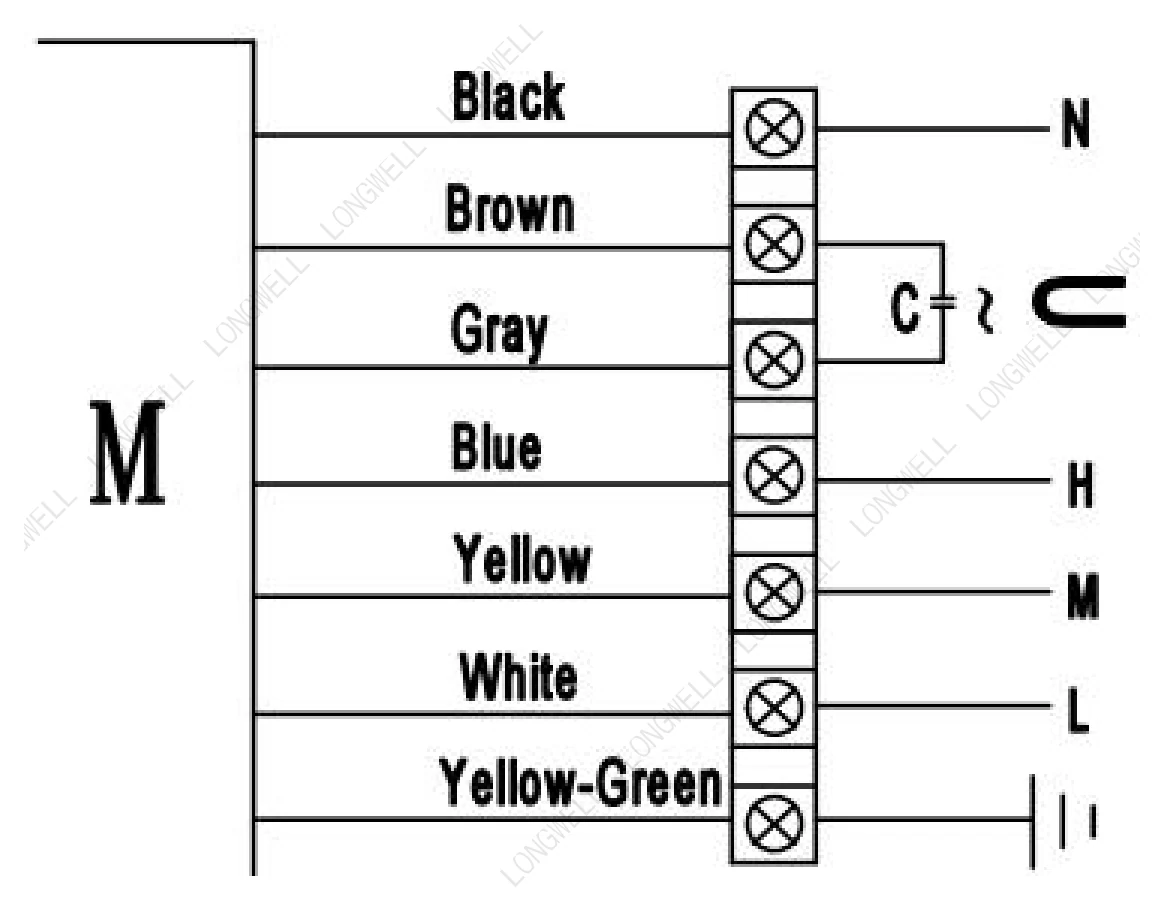

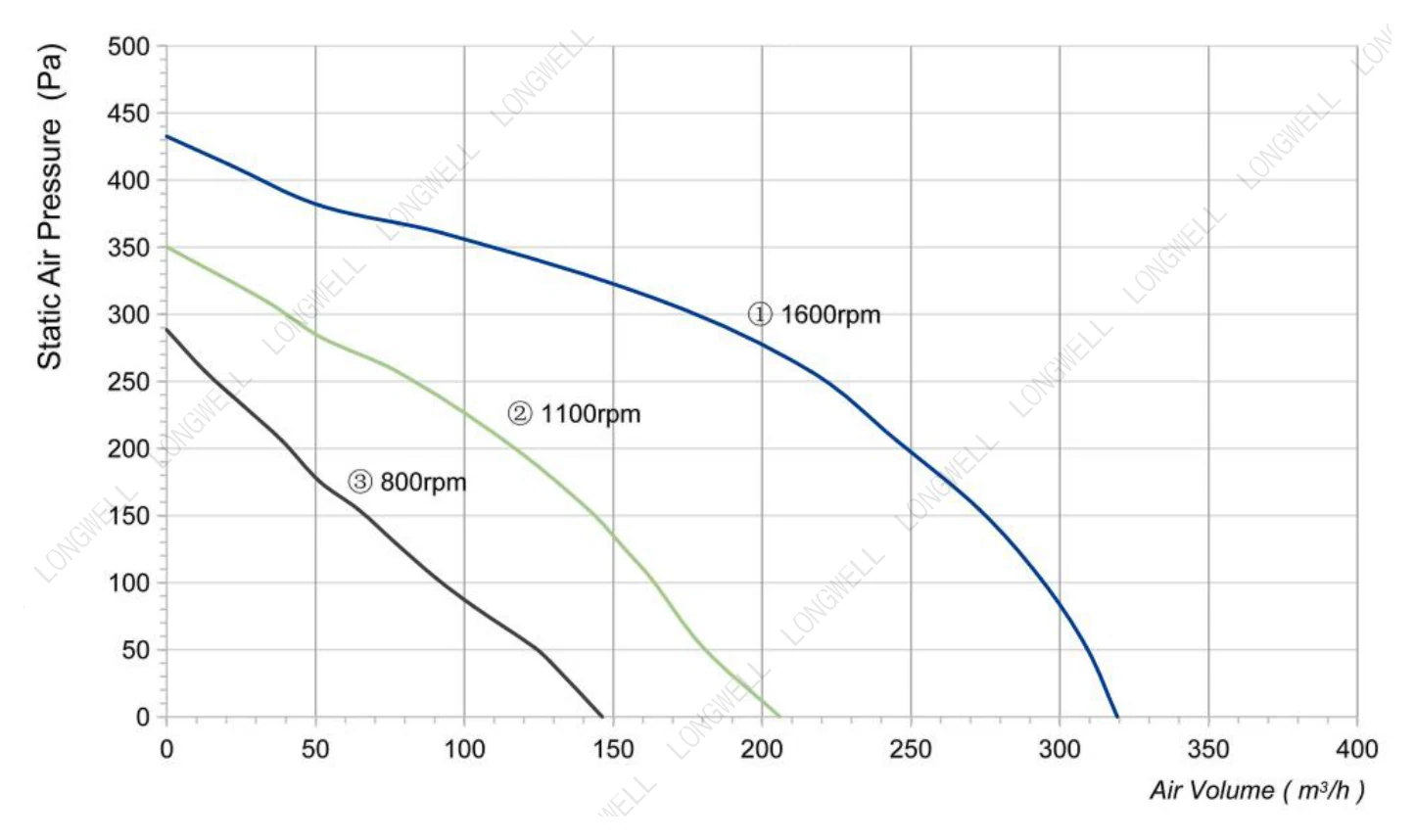

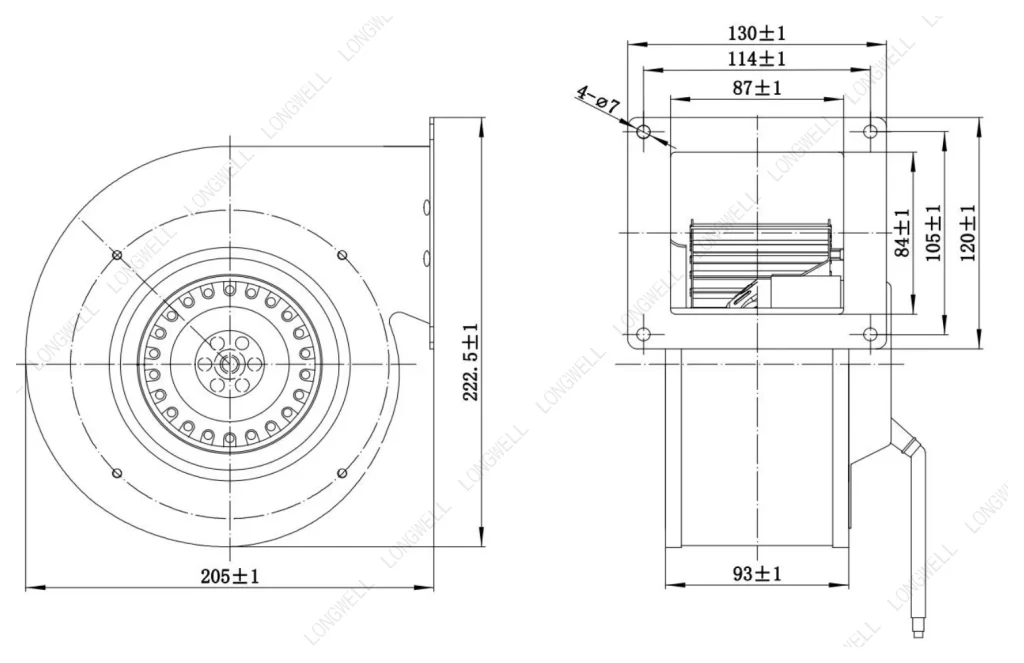

Drawing, Curve & Wiring LWFA2E133-092SS-03
Files for LWFA2E133-092SS-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA2E133-092SS-03
LWFA2E133-092SS-03 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V AC, maximum airflow 319 m³/h, maximum static pressure 433 Pa, noise 56 dB(A), input power 85 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA2E133-092SS-03 |
|---|---|
| Series | LWFA2E133 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.38 A |
| Input power | 85 W |
| Speed | 1,600 rpm |
| Max. airflow | 319 m³/h |
| Max. static pressure | 433 Pa |
| Noise | 56 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 92 mm |
| Impeller material | Plastic PA66 ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 20 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA2E133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
