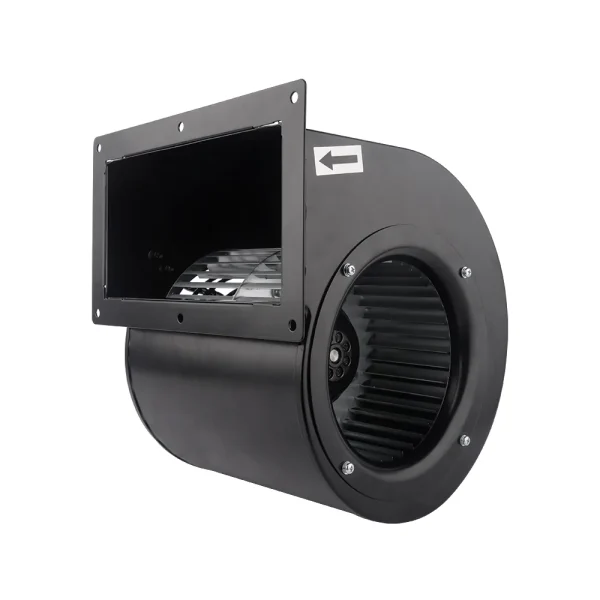

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ133 mm5.2 in
- Max airflow726.15 m³/h427 CFM
- Max static pressure381.1 Pa1.53 in. wg
- Voltage230 V
- Speed1,500 rpm
- Input power190 W
- Noise60 dB(A)
LWFA2E133-092DS-08 AC Dual Inlet Forward Centrifugal Blower Ø133 mm
Ø133 mm | AC | Max airflow 726.15 m³/h | Max static pressure 381.1 Pa | 60 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

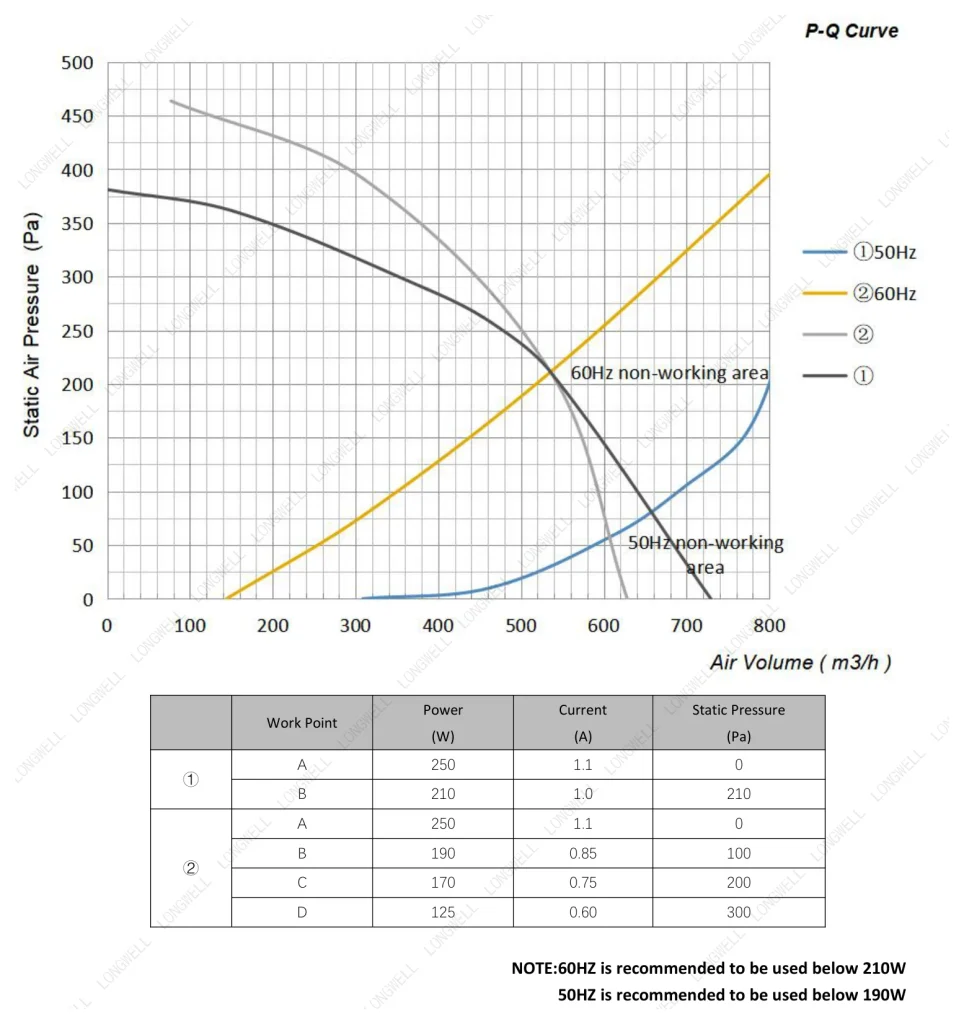

Performance curve (P-Q) LWFA2E133-092DS-08
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

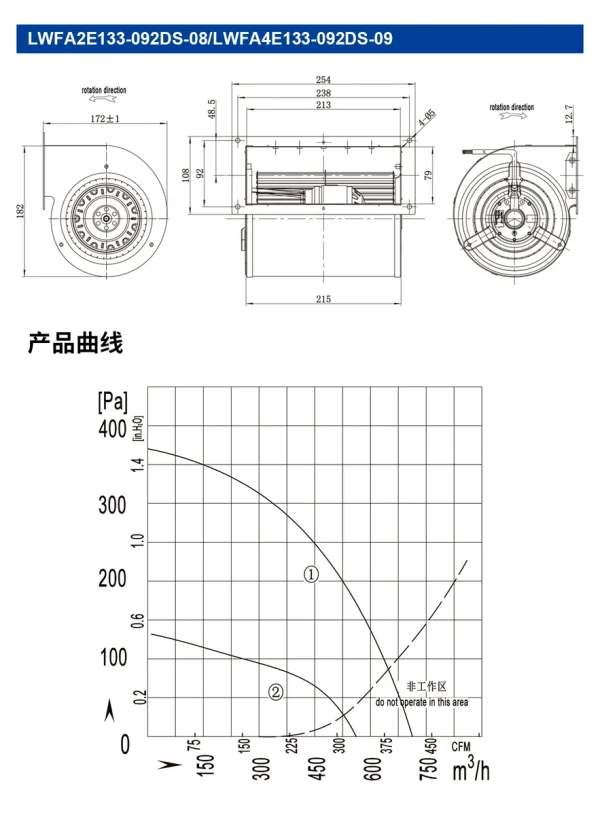

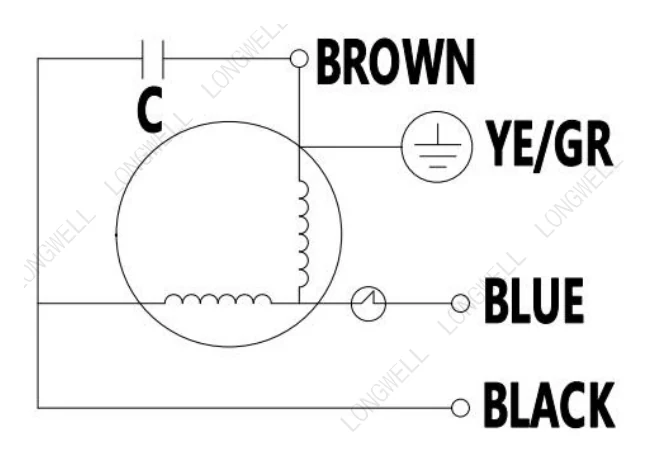

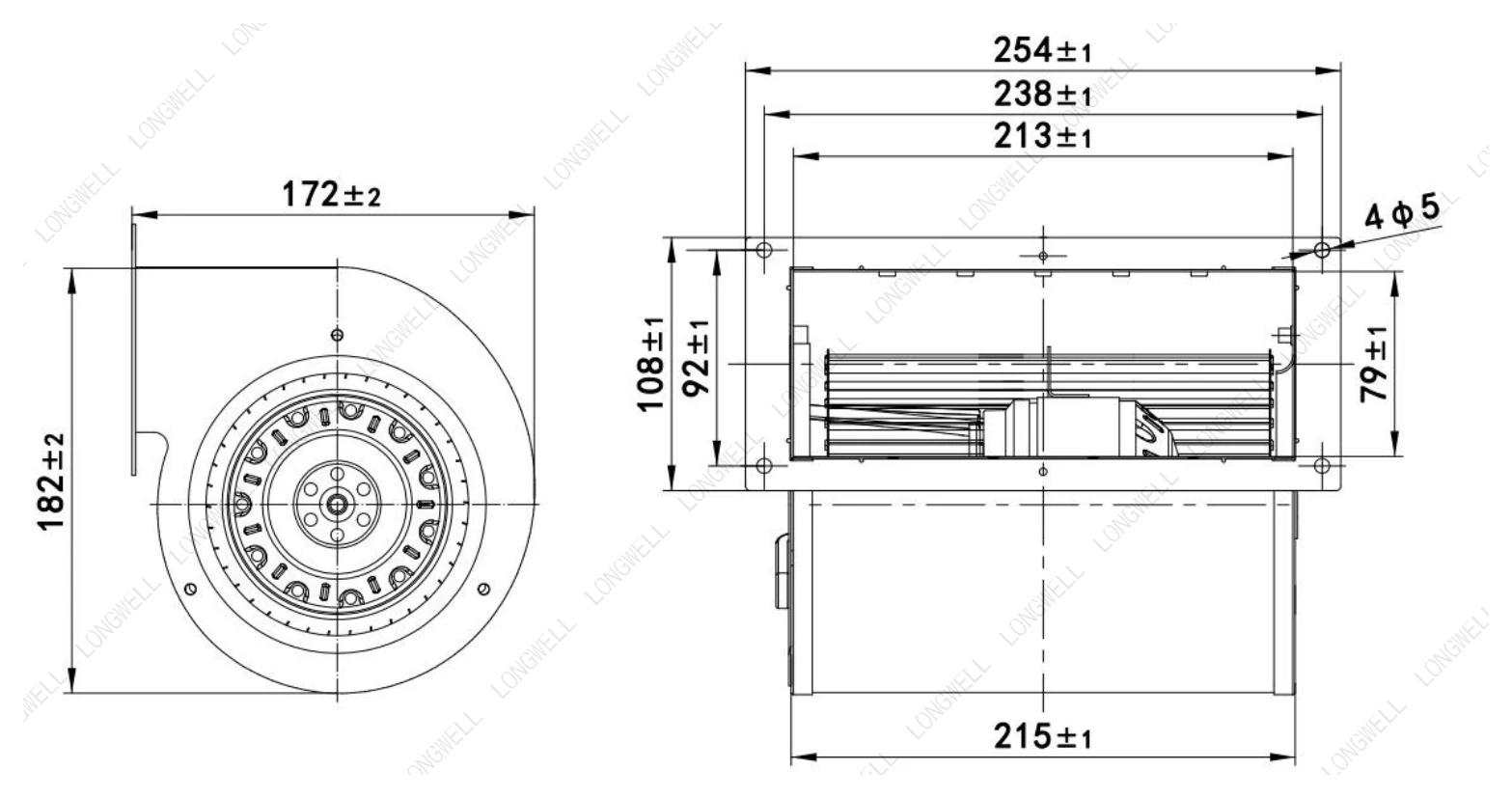

Drawing, Curve & Wiring LWFA2E133-092DS-08
Files for LWFA2E133-092DS-08: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA2E133-092DS-08
LWFA2E133-092DS-08 is a LONGWELL AC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V AC, maximum airflow 726.15 m³/h, maximum static pressure 381.1 Pa, noise 60 dB(A), input power 190 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA2E133-092DS-08 |
|---|---|
| Series | LWFA2E133 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.85 A |
| Input power | 190 W |
| Speed | 1,500 rpm |
| Max. airflow | 726.15 m³/h |
| Max. static pressure | 381.1 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -30 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 20 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA2E133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWFA2E133-092DS-08
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø133 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA2E133-092DS-08 this model | 726.15 m³/h | 381.1 Pa | 1,500 rpm | 190 W | 60 dB(A) | 230 V | |
| LWBA2E133-072NS-02 | 225 m³/h | 184 Pa | 2,720 rpm | 27.8 W | 57.9 dB(A) | 230 V | View |
| LWBA2E133-072NS-01 | 245 m³/h | 242 Pa | 3,070 rpm | 32.2 W | 58.7 dB(A) | 230 V | View |
| LWFA2E133-092NS-02 | 278 m³/h | 464 Pa | 2,350 rpm | 95 W | 63 dB(A) | 230 V | View |
| LWFA2E133-092SS-02 | 278 m³/h | 464 Pa | 1,750 rpm | 95 W | 63 dB(A) | 230 V | View |
| LWFA2E133-092NS-01 | 299 m³/h | 361 Pa | 2,300 rpm | 83 W | 61 dB(A) | 230 V | View |
| LWFA2E133-092SS-01 | 299 m³/h | 361 Pa | 1,850 rpm | 83 W | 61 dB(A) | 230 V | View |
| LWFA2E133-092SS-03 | 319 m³/h | 433 Pa | 1,600 rpm | 85 W | 56 dB(A) | 230 V | View |
| LWFA2E133-092DS-07 | 330 m³/h | 309 Pa | 1,450 rpm | 70 W | 40 dB(A) | 230 V | View |
| LWFA4E133-092DS-09 | 556.2 m³/h | 144.2 Pa | 1,150 rpm | 75 W | 51 dB(A) | 230 V | View |
| LWFA4E133-092DS-04 | 567 m³/h | 433 Pa | 1,250 rpm | 190 W | 69 dB(A) | 230 V | View |
| LWFA4E133-092DS-03 | 649 m³/h | 371 Pa | 1,400 rpm | 180 W | 69 dB(A) | 230 V | View |
| LWFA2E133-092DS-10 | 773 m³/h | 433 Pa | 1,200 rpm | 250 W | 58 dB(A) | 230 V | View |
| LWFA2E133-092DS-06 | 886 m³/h | 639 Pa | 1,300 rpm | 265 W | 69 dB(A) | 230 V | View |
| LWFA2E133-092DS-05 | 927 m³/h | 494 Pa | 1,350 rpm | 250 W | 69 dB(A) | 230 V | View |
