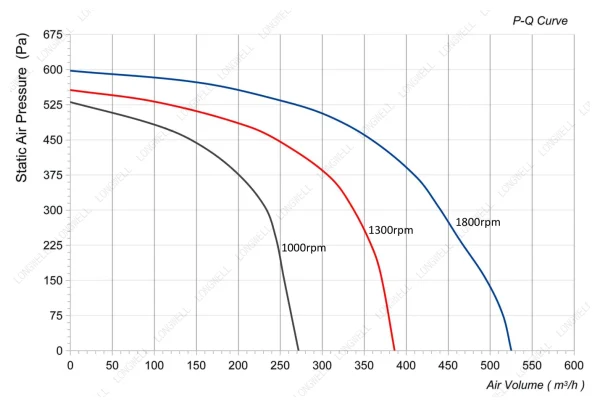

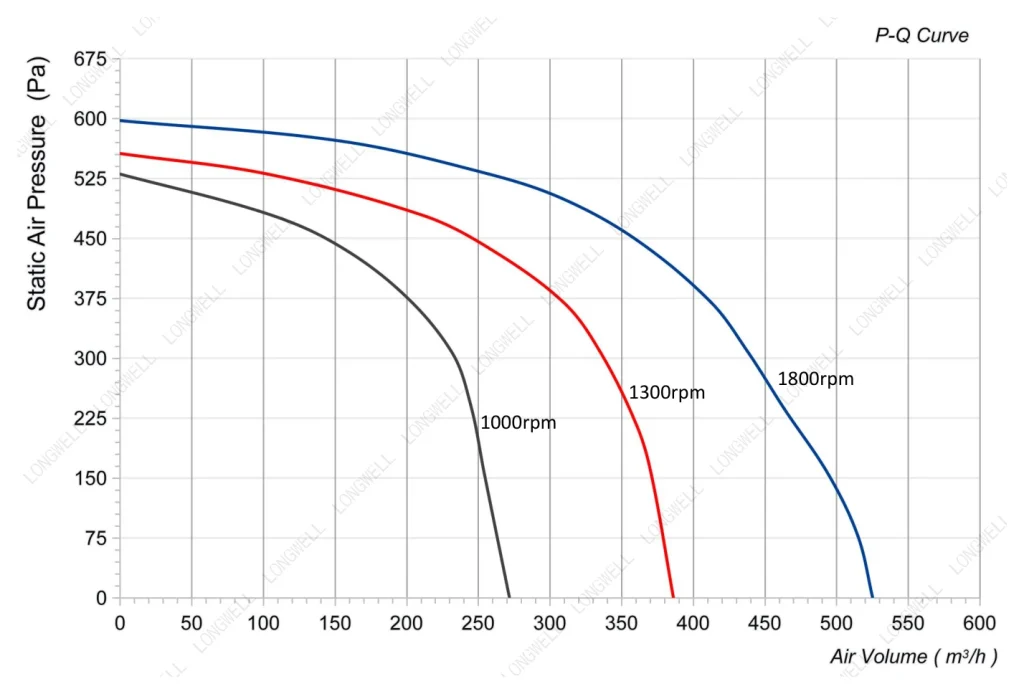

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ160 mm6.3 in
- Max airflow525 m³/h309 CFM
- Max static pressure618 Pa2.48 in. wg
- Voltage230 V
- Speed1,800 rpm
- Input power220 W
- Noise61 dB(A)
LWFA2E160-092SS-04 AC Single Inlet Forward Centrifugal Blower Ø160 mm
Ø160 mm | AC | Max airflow 525 m³/h | Max static pressure 618 Pa | 61 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

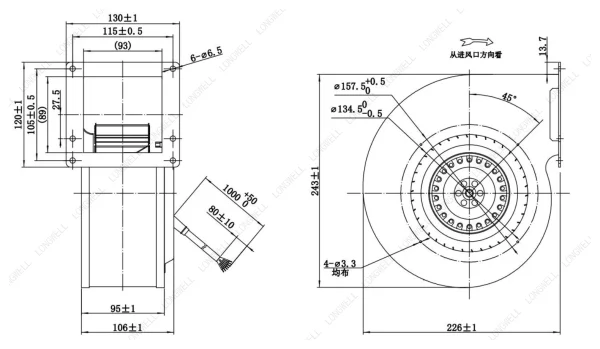

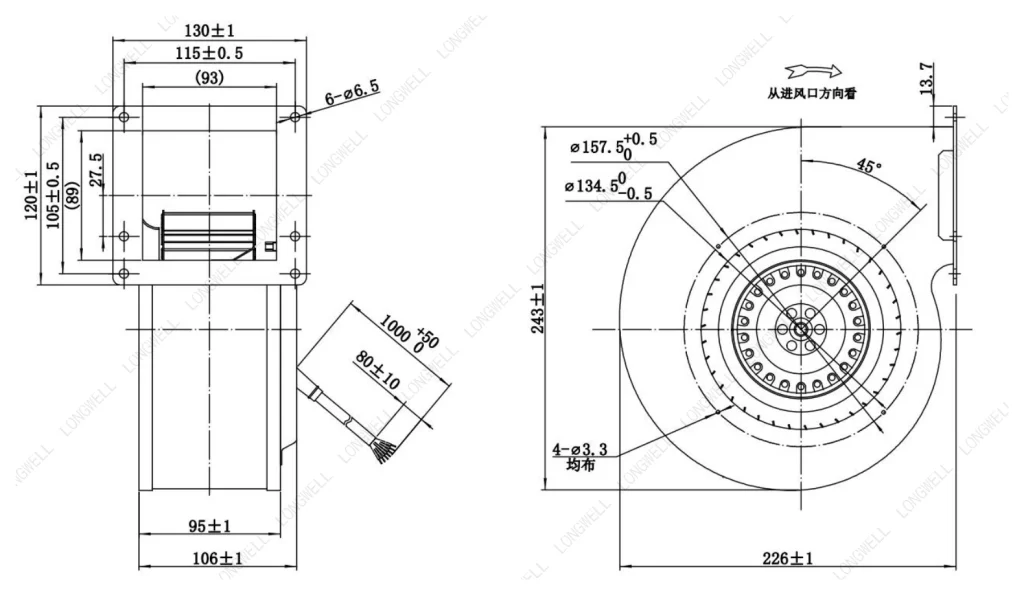

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWFA2E160-092SS-04
PDFDatasheet · 699 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFA2E160-092SS-04 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø160 mm, rated 230 V AC, maximum airflow 525 m³/h, maximum static pressure 618 Pa, noise 61 dB(A), input power 220 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA2E160-092SS-04 |
|---|---|
| Series | LWFA2E160 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1 A |
| Input power | 220 W |
| Speed | 1,800 rpm |
| Max. airflow | 525 m³/h |
| Max. static pressure | 618 Pa |
| Noise | 61 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø160 mm |
| Rotor diameter | 92 |
| Impeller material | PA66 ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA2E160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø160 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA2E160-092SS-04 this model | 525 m³/h | 618 Pa | 1,800 rpm | 220 W | 61 dB(A) | 230 V | |
| LWFA4E160-092NS-02 | 412 m³/h | 154.5 Pa | 1,400 rpm | 68 W | 58 dB(A) | 230 V | View |
| LWFA2E160-092SS-03 | 453 m³/h | 608 Pa | 1,450 rpm | 150 W | 57 dB(A) | 230 V | View |
| LWDA-160S-MBN-04 | 494 m³/h | 336 Pa | 2,200 rpm | 72 W | 63 dB(A) | 230 V | View |
| LWFA2E160-092NS-01 | 525 m³/h | 556.2 Pa | 1,800 rpm | 230 W | 69 dB(A) | 230 V | View |
| LWFA2E160-092SS-01 | 619.5 m³/h | 577.5 Pa | 2,020 rpm | 222 W | 65 dB(A) | 230 V | View |
| LWFA2D160-092ST-02 | 645.75 m³/h | 504 Pa | 2,080 rpm | 237 W | 66 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
