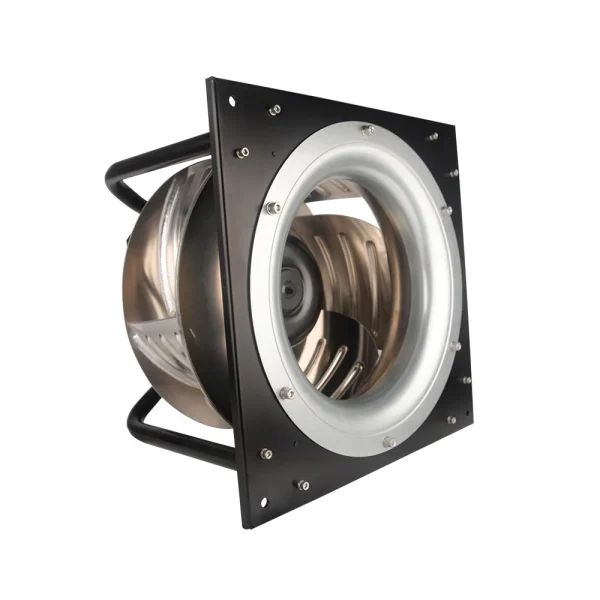

LWFE3G355-102PS-09 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø355 mm, rated 230 V EC, maximum airflow 4,171.5 m³/h, maximum static pressure 906.4 Pa, noise 75 dB(A), input power 520 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G355-102PS-09 |
|---|---|
| Series | LWFE3G355 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 3.1 A |
| Input power | 520 W |
| Speed | 2,550 rpm |
| Max. airflow | 4,171.5 m³/h |
| Max. static pressure | 906.4 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø355 mm |
| Rotor diameter | 102 |
| Impeller material | Aluminum Alloy |
| Protection class | IP55 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
