Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ355 mm14.0 in
- Max airflow6,249 m³/h3,676 CFM
- Max static pressure1,353 Pa5.43 in. wg
- Voltage400 V
- Speed2,710 rpm
- Input power1,100 W1.47 hp
- Noise77 dB(A)
LWBE3G355-138PT-12 EC Plug Fan Ø355 mm
Ø355 mm | EC | Max airflow 6,249 m³/h | Max static pressure 1,353 Pa | 77 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

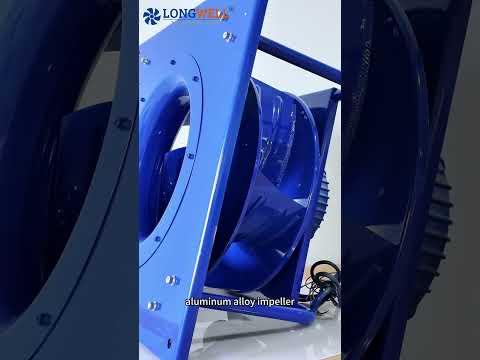

LWBE3G355-138PT-12 — construction, airflow path and running condition.
LWBE3G355-138PT-12 EC Plug Fan | Product Overview · open in video library
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G355-138PT-12 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø355 mm, rated 400 V EC, maximum airflow 6,249 m³/h, maximum static pressure 1,353 Pa, noise 77 dB(A), input power 1,100 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G355-138PT-12 |
|---|---|
| Series | LWBE3G355 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 400 V |
| Frequency | 50 Hz |
| Current | 3.6 A |
| Input power | 1,100 W |
| Speed | 2,710 rpm |
| Max. airflow | 6,249 m³/h |
| Max. airflow (CFM) | 3,676 CFM |
| Max. static pressure | 1,353 Pa |
| Noise | 77 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø355 mm |
| Rotor diameter | 138 |
| Impeller material | Aluminum Alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Speed control | Control input 0~10VDC(RS485 external control box can be connected) |
| Control signal | Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode) |
| Speed feedback | Tach output: 15 Pulse/R; FG internal open circuit output, external pull-up resistor 10K, pull-up voltage V+ |
| Auxiliary output | Output 10±0.3VDC, Max Current: 10mA |
| Communication | LWRS485-04 |
| Protection functions | Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, Input power supply lacks phase protection |
| Soft start | Delay time <35 seconds to full speed |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø355 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G355-138PT-12 this model | 6,249 m³/h | 1,353 Pa | 2,710 rpm | 1,100 W | 77 dB(A) | 400 V | |
| LWBE3G355-092PS-15 | 2,472 m³/h | 350 Pa | 1,400 rpm | 120 W | 68 dB(A) | 230 V | View |
| LWBE3G355-102PS-17 | 3,142 m³/h | 670 Pa | 1,900 rpm | 330 W | 77 dB(A) | 230 V | View |
| LWBE3G355-102PS-16 | 3,554 m³/h | 618 Pa | 1,800 rpm | 285 W | 76 dB(A) | 230 V | View |
| LWBE3G355-102PS-18 | 3,915 m³/h | 770 Pa | 2,050 rpm | 423 W | 74 dB(A) | 230 V | View |
| LWFE3G355-102PS-09 | 4,171.5 m³/h | 906.4 Pa | 2,550 rpm | 520 W | 75 dB(A) | 230 V | View |
| LWFE3G355-102PS-03 | 5,047 m³/h | 1,009.4 Pa | 2,200 rpm | 700 W | 85 dB(A) | 230 V | View |
| LWBE3G355-138PT-20 | 5,356 m³/h | 639 Pa | 2,100 rpm | 990 W | 79 dB(A) | 400 V | View |
| LWBE3G355-138NT-17 | 5,356 m³/h | 639 Pa | 2,100 rpm | 990 W | 79 dB(A) | 400 V | View |
| LWFE3G355-102PT-10 | 6,180 m³/h | 1,751 Pa | 2,550 rpm | 1,100 W | 86 dB(A) | 400 V | View |
| LWBE3G355-188PT-26 | 6,756 m³/h | 2,524 Pa | 3,800 rpm | 3,100 W | 96 dB(A) | 380 V | View |
| LWBE3G355-188NT-29 | 6,756 m³/h | 2,523.5 Pa | 3,800 rpm | 3,100 W | 96 dB(A) | 380 V | View |
| LWBE3G355-138PT-05 | 7,045 m³/h | 830 Pa | 2,700 rpm | 1,700 W | 81 dB(A) | 400 V | View |
| LWBE3G355-188PT-11 | 8,034 m³/h | 1,545 Pa | 3,200 rpm | 3,090 W | 96 dB(A) | 400 V | View |
| LWBE3G355-188NT-26 | 8,034 m³/h | 1,545 Pa | 3,200 rpm | 3,090 W | 96 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
