ImpellerØ250 mm9.8 in
Max airflow4,161.2 m³/h2,448 CFM
Max static pressure412 Pa1.65 in. wg
Voltage380 V
Speed1,250 rpm
Input power1,200 W1.61 hp
Noise77 dB(A)

LWFA4D250-102DS-04 AC Dual Inlet Forward Centrifugal Blower Ø250 mm

Ø250 mm | AC | Max airflow 4,161.2 m³/h | Max static pressure 412 Pa | 77 dB(A)

SKU: LWFA4D250-102DS-04 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø180–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWFA4D250-102DS-045 files · direct download

WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)1.8 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWFA4D250-102DS-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA4D250-102DS-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFA4D250-102DS-04

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFA4D250-102DS-04

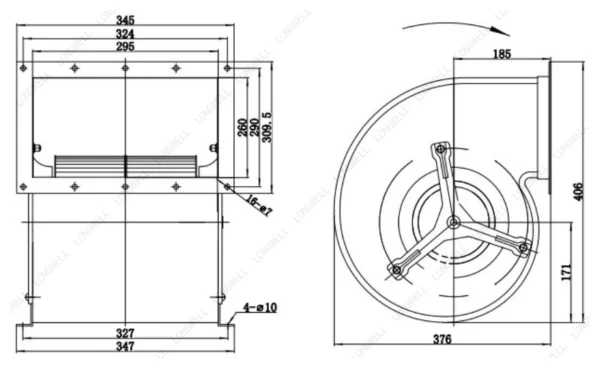

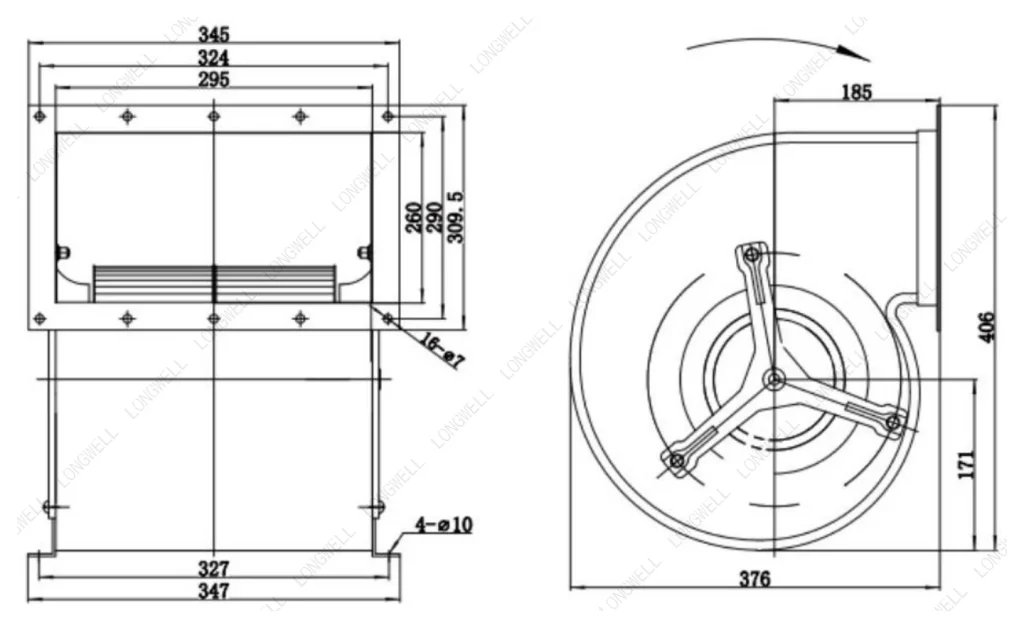

LWFA4D250-102DS-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

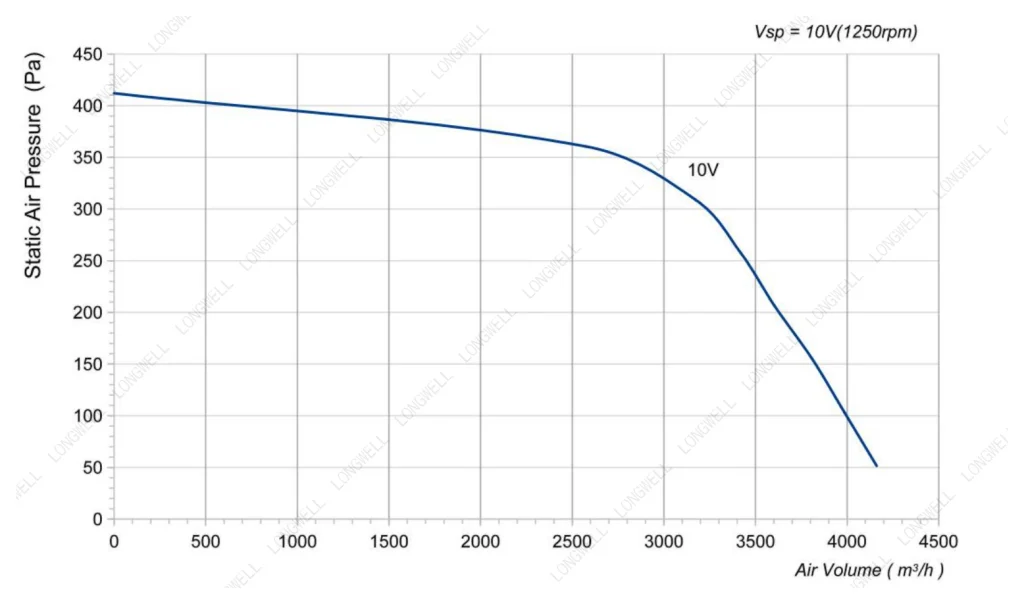

LWFA4D250-102DS-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWFA4D250-102DS-04 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFA4D250-102DS-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA4D250-102DS-04

LWFA4D250-102DS-04 is a LONGWELL AC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø250 mm, rated 380 V AC, maximum airflow 4,161.2 m³/h, maximum static pressure 412 Pa, noise 77 dB(A), input power 1,200 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4D250-102DS-04
Series	LWFA4D250
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	2.1 A
Input power	1,200 W
Speed	1,250 rpm
Max. airflow	4,161.2 m³/h
Max. airflow (CFM)	2,448 CFM
Max. static pressure	412 Pa
Noise	77 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Rotor diameter	102 mm
Impeller material	Galvanised sheet steel ( Impeller )
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4D250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
