Technical description LWFE3G355-102PT-10

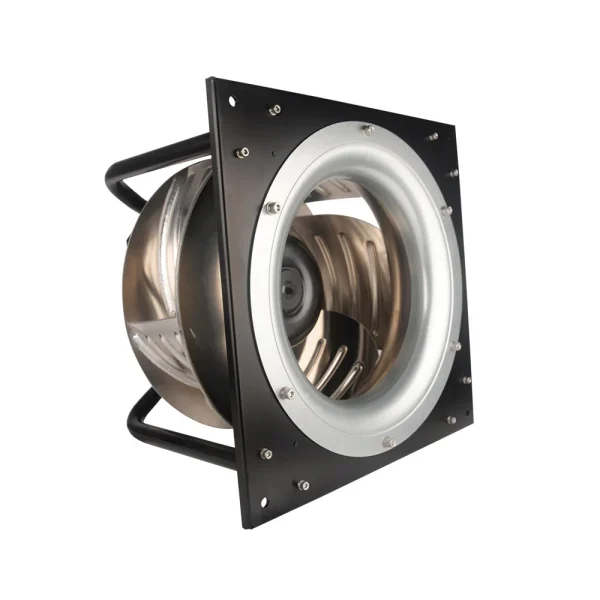

LWFE3G355-102PT-10 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø355 mm, rated 400 V EC, maximum airflow 6,180 m³/h, maximum static pressure 1,751 Pa, noise 86 dB(A), input power 1,100 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G355-102PT-10
Series	LWFE3G355
Motor type	EC
Phase	3-phase
Rated voltage	400 V
Frequency	50 Hz
Current	2.1 A
Input power	1,100 W
Speed	2,550 rpm
Max. airflow	6,180 m³/h
Max. static pressure	1,751 Pa
Noise	86 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø355 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy
Protection class	IP55
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWFE3G355-102PT-10

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø355 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFE3G355-102PT-10 this model	6,180 m³/h	1,751 Pa	2,550 rpm	1,100 W	86 dB(A)	400 V
LWBE3G355-092PS-15	2,472 m³/h	350 Pa	1,400 rpm	120 W	68 dB(A)	230 V	View
LWBE3G355-102PS-17	3,142 m³/h	670 Pa	1,900 rpm	330 W	77 dB(A)	230 V	View
LWBE3G355-102PS-16	3,554 m³/h	618 Pa	1,800 rpm	285 W	76 dB(A)	230 V	View
LWBE3G355-102PS-18	3,915 m³/h	770 Pa	2,050 rpm	423 W	74 dB(A)	230 V	View
LWBE3G355-138PT-20	5,356 m³/h	639 Pa	2,100 rpm	990 W	79 dB(A)	400 V	View
LWBE3G355-138NT-17	5,356 m³/h	639 Pa	2,100 rpm	990 W	79 dB(A)	400 V	View
LWBE3G355-138PT-12	6,249 m³/h	1,353 Pa	2,710 rpm	1,100 W	77 dB(A)	400 V	View
LWBE3G355-138NT-27	6,249 m³/h	1,353 Pa	2,710 rpm	1,500 W	77 dB(A)	400 V	View
LWBE3G355-188PT-26	6,756 m³/h	2,524 Pa	3,800 rpm	3,100 W	96 dB(A)	380 V	View
LWBE3G355-188NT-29	6,756 m³/h	2,523.5 Pa	3,800 rpm	3,100 W	96 dB(A)	380 V	View
LWBE3G355-138PT-05	7,045 m³/h	830 Pa	2,700 rpm	1,700 W	81 dB(A)	400 V	View
LWBE3G355-138NT-12	7,045.2 m³/h	830.18 Pa	2,700 rpm	1,700 W	81 dB(A)	400 V	View
LWBE3G355-188PT-11	8,034 m³/h	1,545 Pa	3,200 rpm	3,090 W	96 dB(A)	400 V	View
LWBE3G355-188NT-26	8,034 m³/h	1,545 Pa	3,200 rpm	3,090 W	96 dB(A)	400 V	View
