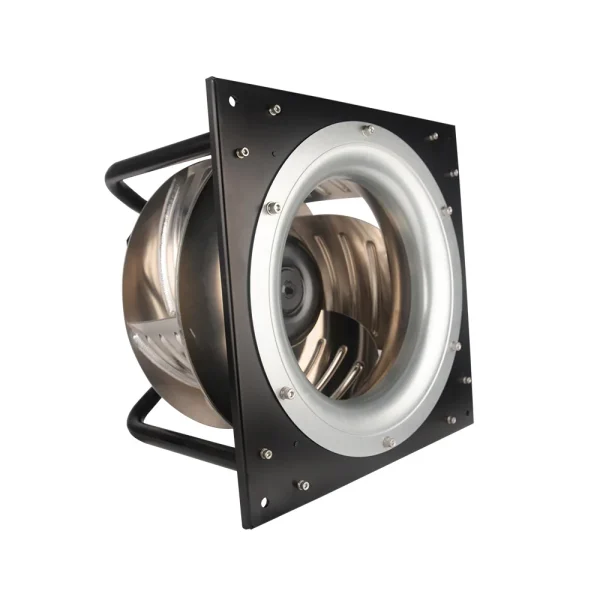

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ355 mm14.0 in
Max airflow3,142 m³/h1,848 CFM
Max static pressure670 Pa2.69 in. wg
Voltage230 V
Speed1,900 rpm
Input power330 W
Noise77 dB(A)

LWBE3G355-102PS-17 EC Plug Fan Ø355 mm

Ø355 mm | EC | Max airflow 3,142 m³/h | Max static pressure 670 Pa | 77 dB(A)

SKU: LWBE3G355-102PS-17 Categories: Centrifugal Fans, Impeller Ø355–630 mm, Plug Fans (RLM Plenum Fans)

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 42

All files for LWBE3G355-102PS-176 files · direct download

PDFFull product catalogue · model on PDF p. 42 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as Rosenberg GKHR 355, ebm-papst K3G355, ebm-papst R3G355, ebm-papst RadiPac 355 and others — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Industrial AHUs Air conditioning Air handling units FanGrid arrays All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G355-102PS-17

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G355-102PS-17datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBE3G355-102PS-17

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWBE3G355-102PS-17

LONGWELL EC Fan Shipping | LWBE3G355-138NT-27A1 · open in video library

Master Airflow, Sustain Efficiency: Longwell EC Backward Inclined Centrifugal Fan | LWBE3G355-102NS-33 · open in video library

Drawing, Curve & Wiring LWBE3G355-102PS-17

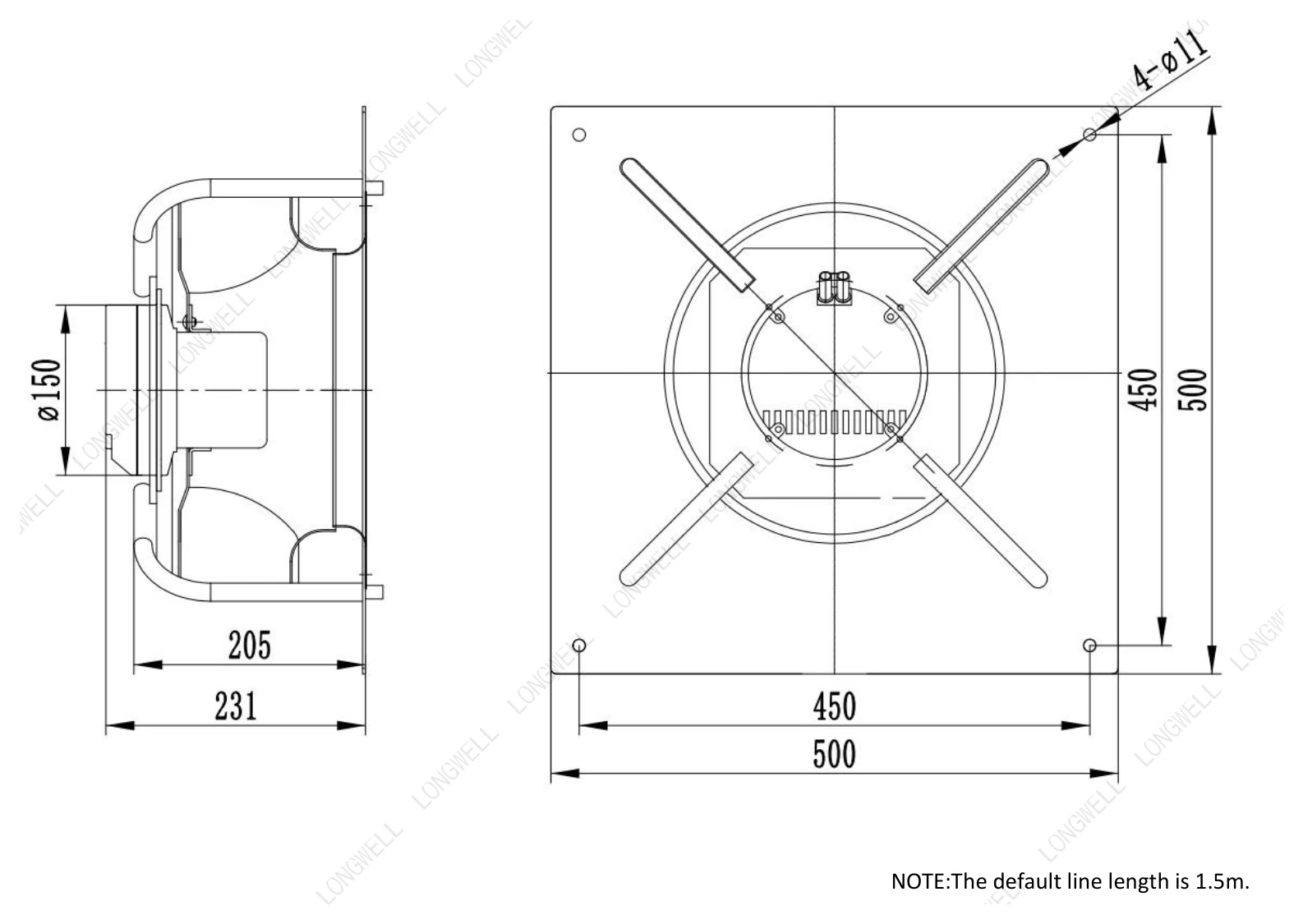

LWBE3G355-102PS-17 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

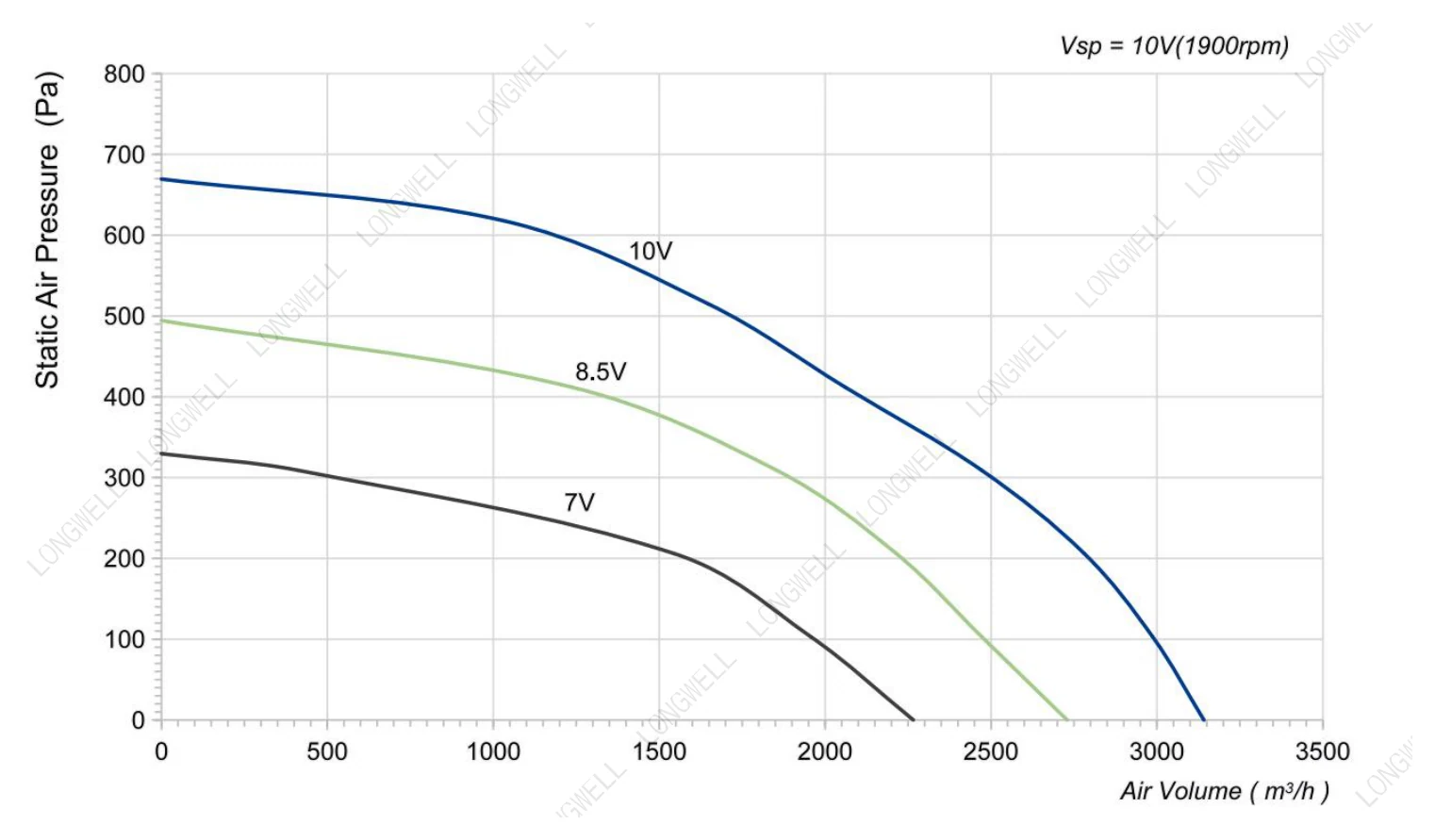

LWBE3G355-102PS-17 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

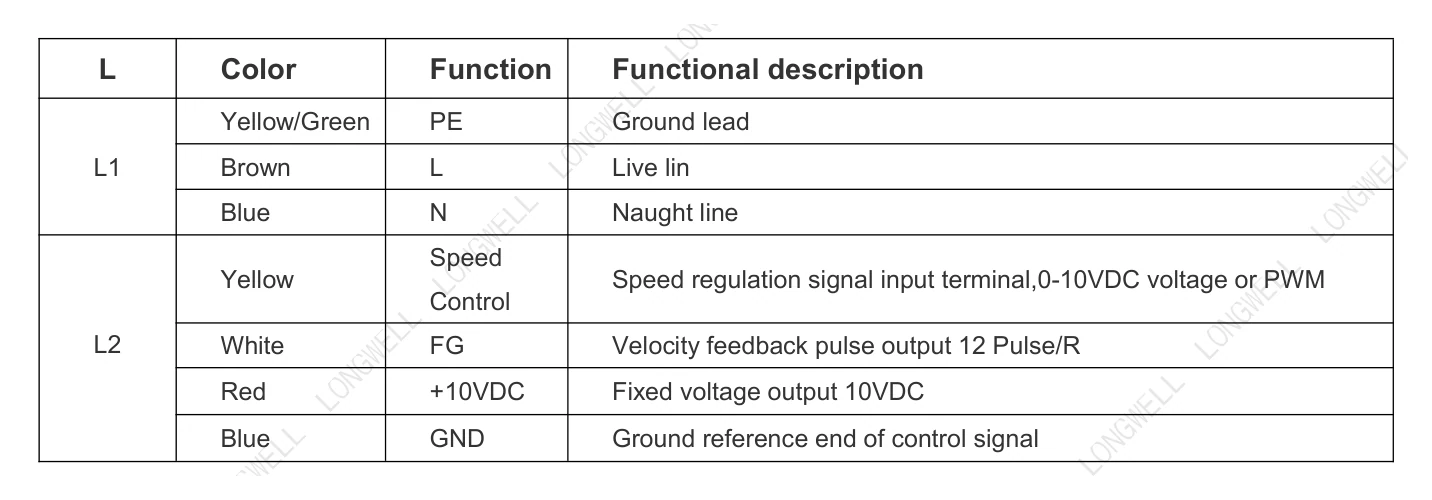

LWBE3G355-102PS-17 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWBE3G355-102PS-17: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBE3G355-102PS-17

LWBE3G355-102PS-17 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø355 mm, rated 230 V EC, maximum airflow 3,142 m³/h, maximum static pressure 670 Pa, noise 77 dB(A), input power 330 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G355-102PS-17
Series	LWBE3G355
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	1.5 A
Input power	330 W
Speed	1,900 rpm
Max. airflow	3,142 m³/h
Max. airflow (CFM)	1,848 CFM
Max. static pressure	670 Pa
Noise	77 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø355 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Speed control	Control input 0~10VDC / PWM
Control signal	Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.2VDC, the motor switches from operating mode to standby mode)
PWM input	PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% .
Speed feedback	Tach output: 12 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Over-temperature protection, Over-current protection, Locked-rotor protection’
Soft start	Delay time <20 seconds to full speed

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
