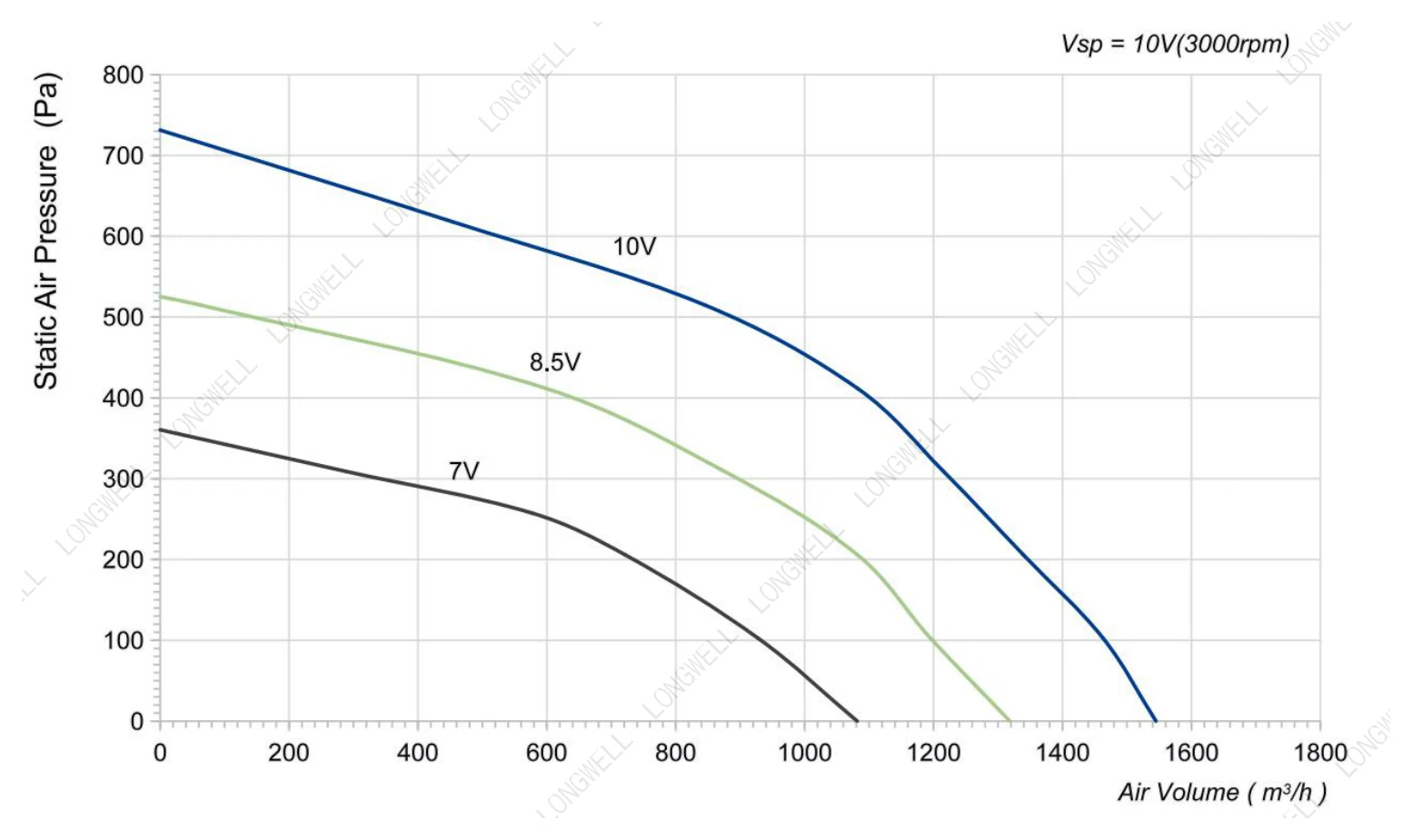

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

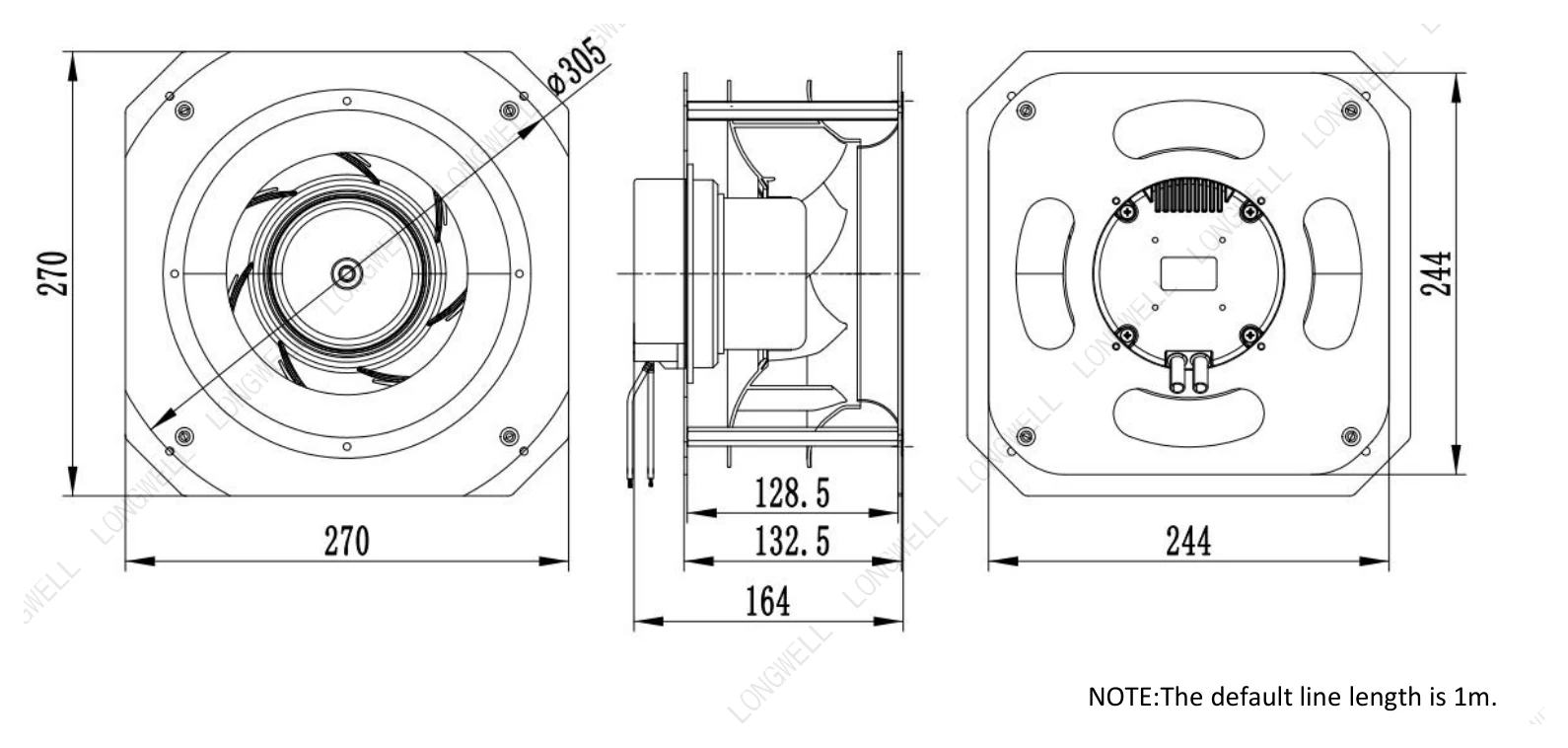

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ225 mm8.9 in
- Max airflow1,545 m³/h909 CFM
- Max static pressure731 Pa2.93 in. wg
- Voltage230 V
- Speed3,000 rpm
- Input power160 W
- Noise71 dB(A)
LWBE3G225-092PS-13 EC Plug Fan Ø225 mm
Ø225 mm | EC | Max airflow 1,545 m³/h | Max static pressure 731 Pa | 71 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 15
All files for LWBE3G225-092PS-136 files · direct download

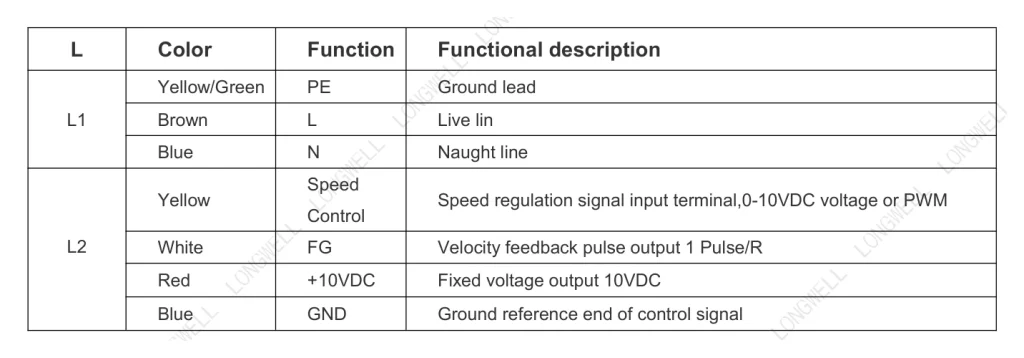

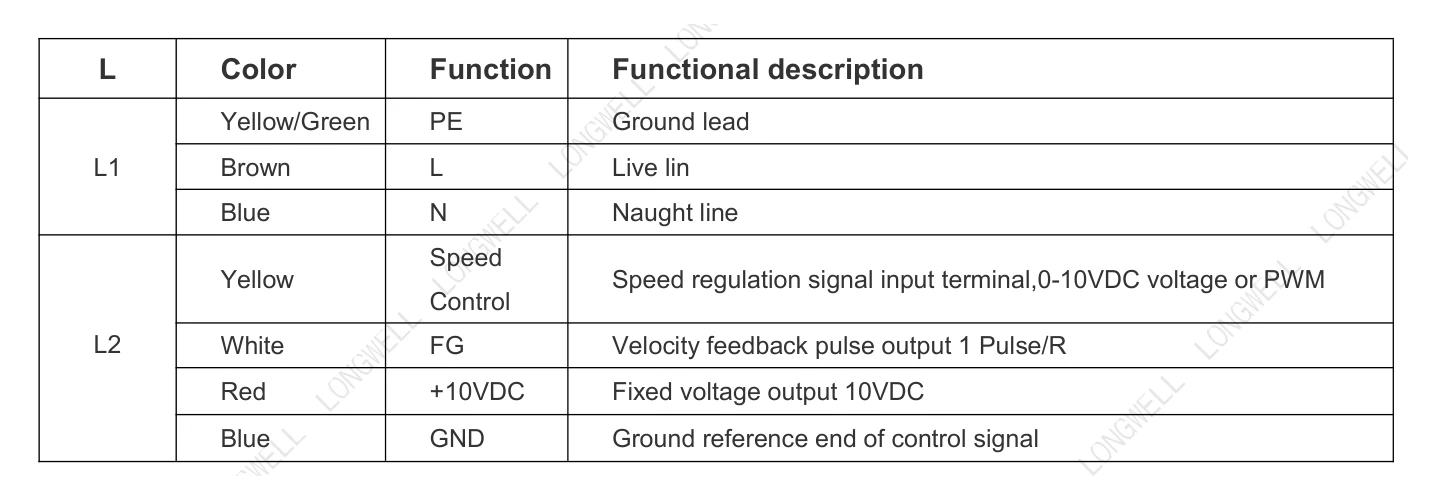

PDFFull product catalogue · model on PDF p. 15WEBPDimensional drawingWEBPPerformance curveWEBPWiring diagramDOCXDatasheet
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com
Cross-reference: same impeller size class as ebm-papst R3G225 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
Typical applications: Industrial AHUs · Air conditioning · Air handling units · FanGrid arrays — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LONGWELL 225mm EC Backward-Curved Centrifugal Fan LWBE3G225-072PS-03 | High-Efficiency & Low-Noise HVAC Solution · open in video library
Longwell EC Fan Test | LWBE3G225-072PS-02 · open in video library
Downloads for LWBE3G225-092PS-13
PDFDatasheetPDFFull product catalogue · EC ( ) EC plug fans #1 · model on PDF p. 15 · 48.6 MBDOCXDatasheet · 535 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G225-092PS-13 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø225 mm, rated 230 V EC, maximum airflow 1,545 m³/h, maximum static pressure 731 Pa, noise 71 dB(A), input power 160 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G225-092PS-13 |
|---|---|
| Series | LWBE3G225 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.1 A |
| Input power | 160 W |
| Speed | 3,000 rpm |
| Max. airflow | 1,545 m³/h |
| Max. airflow (CFM) | 909 CFM |
| Max. static pressure | 731 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø225 mm |
| Rotor diameter | 92 mm |
| Impeller material | PA6+GF ( Impeller ) |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Speed control | 0–10 VDC / PWM |
| Control signal | 1.0±0.1–9.5±0.2 VDC; below 1.0±0.1 VDC standby |
| PWM input | 1–10 kHz, 10–12 V, 30%–70% duty cycle |
| Speed feedback | 1 pulse/rev, open-collector output, external 10 kΩ pull-up |
| Auxiliary output | 10 VDC, max. 10 mA |
| Protection functions | over-temperature protection, over-current protection, locked-rotor protection |
| Soft start | full-speed start delay <20 s |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø225 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G225-092PS-13 this model | 1,545 m³/h | 731 Pa | 3,000 rpm | 160 W | 71 dB(A) | 230 V | |
| LWBE3G225-072NU-14 | 1,009.4 m³/h | 618 Pa | 2,300 rpm | 85 W | 65 dB(A) | 115 V | View |
| LWBE3G225-072PS-11 | 1,112 m³/h | 433 Pa | 2,500 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWBE3G225-072NS-10 | 1,112 m³/h | 433 Pa | 2,500 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWBE3G225-072NU-15 | 1,184.5 m³/h | 669.5 Pa | 2,600 rpm | 115 W | 67 dB(A) | 115 V | View |
| LWBE3G225-072NS-13 | 1,184.5 m³/h | 669.5 Pa | 2,600 rpm | 115 W | 67 dB(A) | 230 V | View |
| LWBE3G225-072NU-16 | 1,313.25 m³/h | 1,030 Pa | 3,100 rpm | 170 W | 70 dB(A) | 115 V | View |
| LWBE3G225-072NS-07 | 1,313.25 m³/h | 1,030 Pa | 3,100 rpm | 170 W | 70 dB(A) | 230 V | View |
| LWBE3G225-092NS-10 | 1,359.6 m³/h | 906.4 Pa | 3,600 rpm | 230 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NU-17 | 1,359.6 m³/h | 906.4 Pa | 3,600 rpm | 230 W | 71 dB(A) | 115 V | View |
| LWBE3G225-092PS-12 | 1,528 m³/h | 683 Pa | 3,060 rpm | 170 W | 71.1 dB(A) | 230 V | View |
| LWBE3G225-092NS-11 | 1,528 m³/h | 683 Pa | 3,060 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NS-12 | 1,545 m³/h | 731 Pa | 3,000 rpm | 160 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092PS-07 | 1,630 m³/h | 839 Pa | 3,500 rpm | 315 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NS-13 | 1,630 m³/h | 839 Pa | 3,500 rpm | 315 W | 71 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
