- ImpellerØ300 mm11.8 in
- Max airflow1,545 m³/h909 CFM
- Voltage220/230 V
- Speed1,400 rpm
- Input power75 W
- Noise48 dB(A)
LWAA4E300B-5MEB-09 AC Axial Fan Ø300 mm
Ø300 mm | AC | Max airflow 1,545 m³/h | 48 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

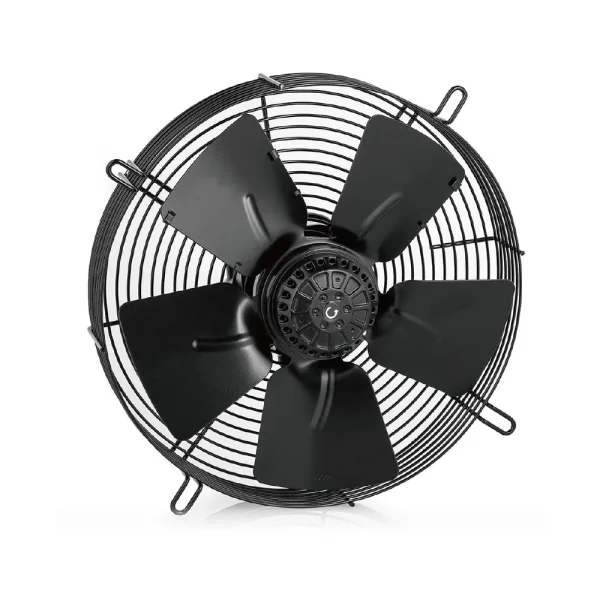

LWAA4E300B-5MEB-09 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø300 mm, rated 220/230 V AC, maximum airflow 1,545 m³/h, noise 48 dB(A), input power 75 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4E300B-5MEB-09 |
|---|---|
| Series | LWAA4E300 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 198 ~ 242 V |
| Frequency | 50 Hz |
| Current | 0.35 A |
| Input power | 75 W |
| Speed | 1,400 rpm |
| Max. airflow | 1,545 m³/h |
| Noise | 48 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø300 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4E300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

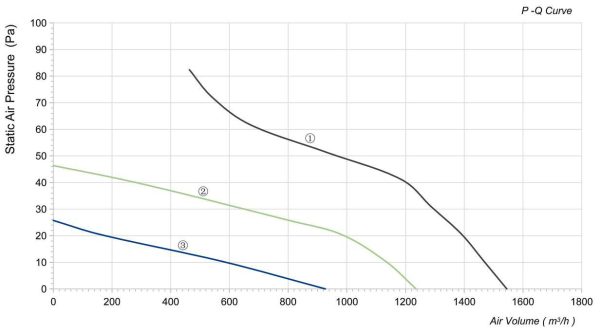

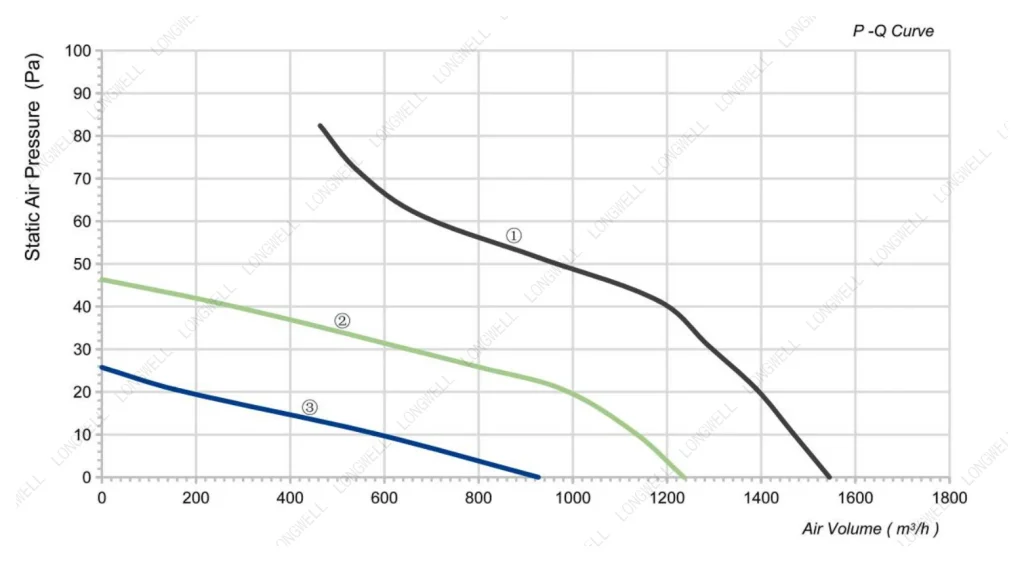

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø300 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4E300B-5MEB-09 this model | 1,545 m³/h | see curve | 1,400 rpm | 75 W | 48 dB(A) | 220/230 V | |
| LWA-300(12")U(S)M-01 | 35 m³/h | see curve | 1,350 rpm | 100 W | — | 110-120 V | View |
| LWA-300(12")U(S)M-02 | 46 m³/h | see curve | 1,350 rpm | 120 W | — | 110-120 V | View |
| LWA-300(12")U(S)M-03 | 65 m³/h | see curve | 2,800 rpm | 370 W | — | 110-120 V | View |
| LWDA-300 (12")U-MWN-01 | 1,900 m³/h | see curve | 3,450 rpm | 489 W | 78 dB(A) | 110-120 V | View |
| LWDA-300 (12")U-MWN-03 | 1,900 m³/h | see curve | 3,450 rpm | 489 W | 71 dB(A) | 110-120 V | View |
| LWEA300S(T)M-067E | 2,280 m³/h | see curve | 1,450 rpm | 180 W | — | 220 V | View |
| LWEAF300-01 | 2,280 m³/h | see curve | 1,450 rpm | 180 W | — | 220 V | View |
| LWFA-E-300-02 | 2,900 m³/h | 408 Pa | — | — | 65 dB(A) | — | View |
| LWA-300(12")U(S)M-04 | 3,000 m³/h | 230 Pa | 2,800 rpm | 370 W | — | 110-120 V | View |
| LWDA-300(12")S-MWN-05 | 3,000 m³/h | 230 Pa | 2,800 rpm | 120 W | 68 dB(A) | 220 V | View |
| LWFA-E-300-03 | 3,100 m³/h | 422 Pa | — | — | 66 dB(A) | — | View |
| LWDA-300 (12")S-MWN-02 | 3,150 m³/h | see curve | 2,900 rpm | 320 W | 72 dB(A) | 220-240 V | View |
| LWDA-300 (12")S-MWN-04 | 3,150 m³/h | see curve | 2,900 rpm | 320 W | 65 dB(A) | 220-240 V | View |
| LWFA-E-300-01 | 4,300 m³/h | 720 Pa | — | — | 72 dB(A) | — | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
