ImpellerØ400 mm15.7 in
Max airflow4,223 m³/h2,486 CFM
Voltage220/230 V
Speed1,580 rpm
Input power260 W
Noise62 dB(A)

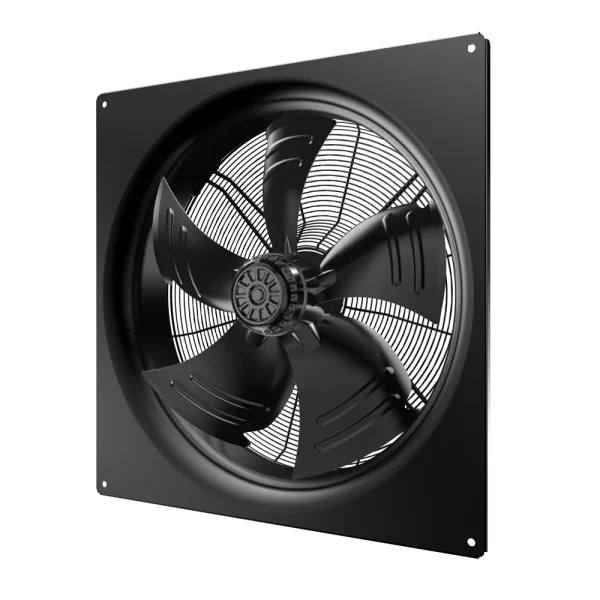

LWAA4E400B-5MKB-23 AC Axial Fan Ø400 mm

Ø400 mm | AC | Max airflow 4,223 m³/h | 62 dB(A)

SKU: LWAA4E400B-5MKB-23 Categories: AC Axial Fans, Axial Fans, Impeller Ø295–450 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAA4E400B-5MKB-23

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAA4E400B-5MKB-23drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

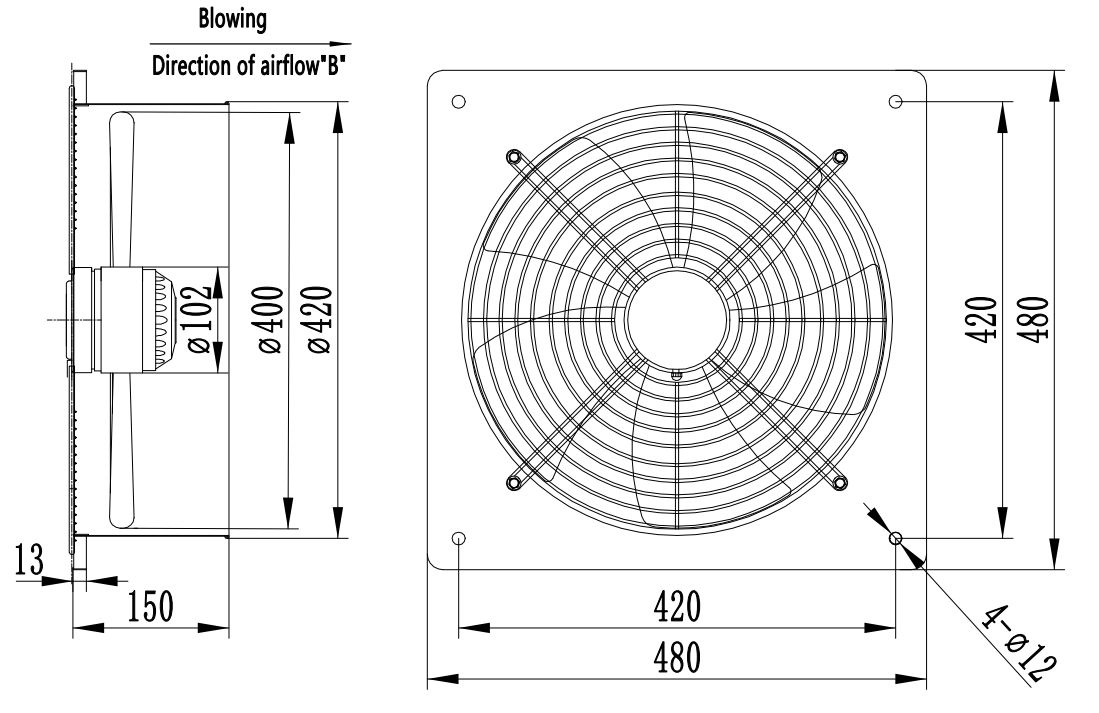

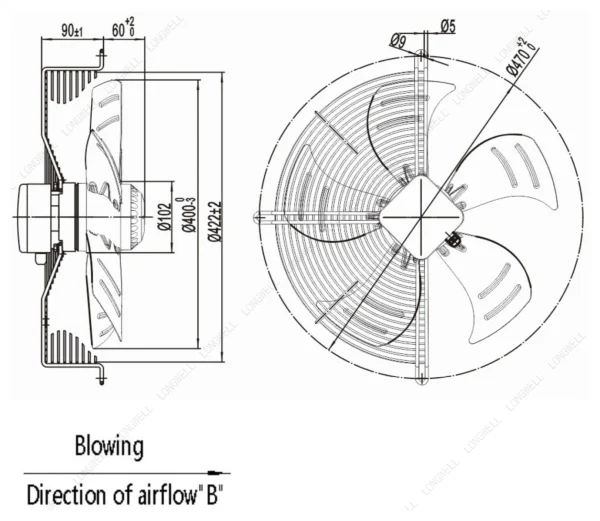

LWAA4E400B-5MKB-23 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

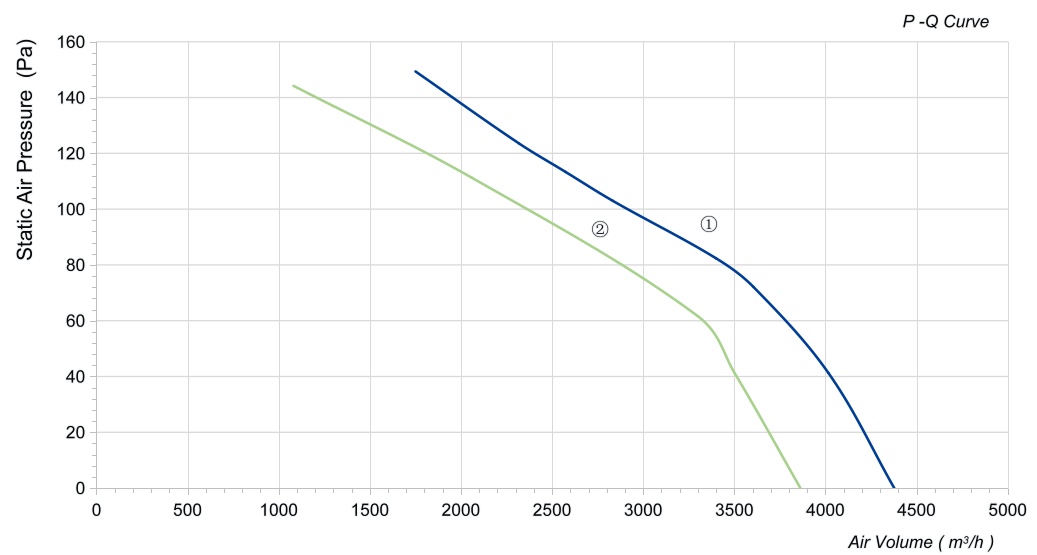

LWAA4E400B-5MKB-23 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA4E400B-5MKB-23 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAA4E400B-5MKB-23

PDFDatasheet DOCXDatasheet · 1.4 MB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAA4E400B-5MKB-23 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø400 mm, rated 220/230 V AC, maximum airflow 4,223 m³/h, noise 62 dB(A), input power 260 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA4E400B-5MKB-23
Series	LWAA4E400
Motor type	AC
Phase	1-phase
Rated voltage	220/230 V
Frequency	60 Hz
Current	1.22 A
Input power	260 W
Speed	1,580 rpm
Max. airflow	4,223 m³/h
Noise	62 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø400 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP55
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 20 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA4E400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø400 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA4E400B-5MKB-23 this model	4,223 m³/h	see curve	1,580 rpm	260 W	62 dB(A)	220/230 V
LWA-400(16")U(S)M-01	90 m³/h	see curve	1,350 rpm	170 W	—	110-120 V	View
LWA-400(16")U(S)M-02	110 m³/h	see curve	1,350 rpm	200 W	—	110-120 V	View
LWA-400(16")U(S)M-03	150 m³/h	see curve	2,800 rpm	750 W	—	110-120 V	View
LWEA400S(T)M-068E	2,280 m³/h	see curve	1,450 rpm	370 W	—	220 V	View
LWEAF400-01	2,280 m³/h	see curve	1,450 rpm	370 W	—	220 V	View
LWDA-400 (16")U-MWN-01	2,500 m³/h	see curve	1,780 rpm	440 W	75 dB(A)	110-120 V	View
LWFA-E-400-01	4,500 m³/h	612 Pa	—	—	68 dB(A)	—	View
LWEA400S(T)M-161E	4,687 m³/h	119 Pa	1,450 rpm	550 W	—	220 V	View
LWMFAF400-01	5,100 m³/h	1,390 Pa	—	—	90 dB(A)	380 V	View
LWFA-E-400-02	5,100 m³/h	610 Pa	—	—	70 dB(A)	—	View
LWMFAF400-02	5,400 m³/h	1,700 Pa	—	—	89 dB(A)	380 V	View
LWDA-400 (16")S-MWN-02	7,100 m³/h	see curve	2,940 rpm	1,300 W	83 dB(A)	220-240 V	View
LWEA400S(T)M-162E	9,336 m³/h	474 Pa	2,900 rpm	1,100 W	—	220 V	View
LWA-400(16")U(S)M-04	11,000 m³/h	400 Pa	2,800 rpm	1,100 W	—	110-120 V	View
