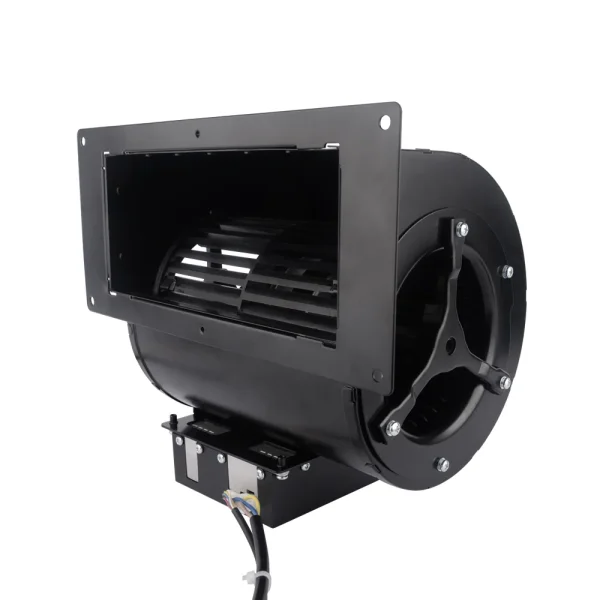

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ280 mm11.0 in
Max airflow4,223 m³/h2,484 CFM
Max static pressure917 Pa3.68 in. wg
Voltage380 V
Speed800 rpm
Input power600 W
Noise72 dB(A)

LWFE3G280-138DS-01 EC Dual Inlet Forward Centrifugal Blower Ø280 mm

Ø280 mm | EC | Max airflow 4,223 m³/h | Max static pressure 917 Pa | 72 dB(A)

SKU: LWFE3G280-138DS-01 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø180–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC EC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 14

All files for LWFE3G280-138DS-016 files · direct download

PDFFull product catalogue · model on PDF p. 14 WEBPDimensional drawing PNGPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)18.6 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWFE3G280-138DS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFE3G280-138DS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFE3G280-138DS-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFE3G280-138DS-01

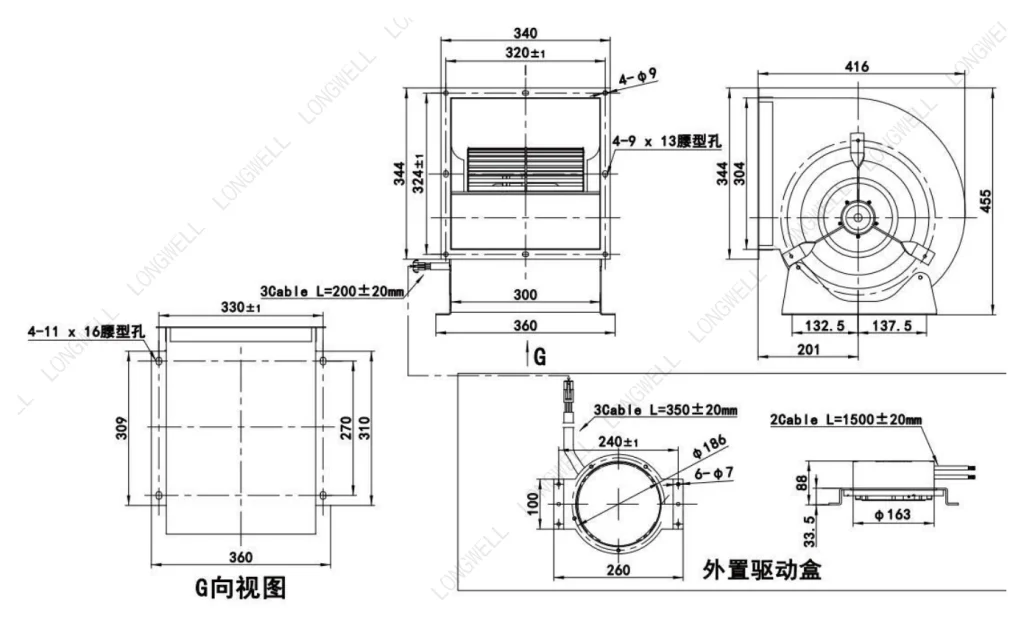

LWFE3G280-138DS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

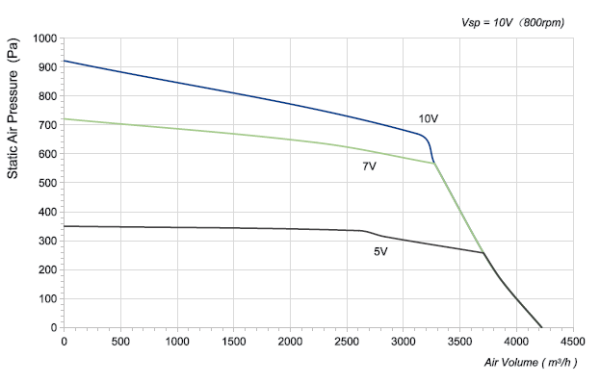

LWFE3G280-138DS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

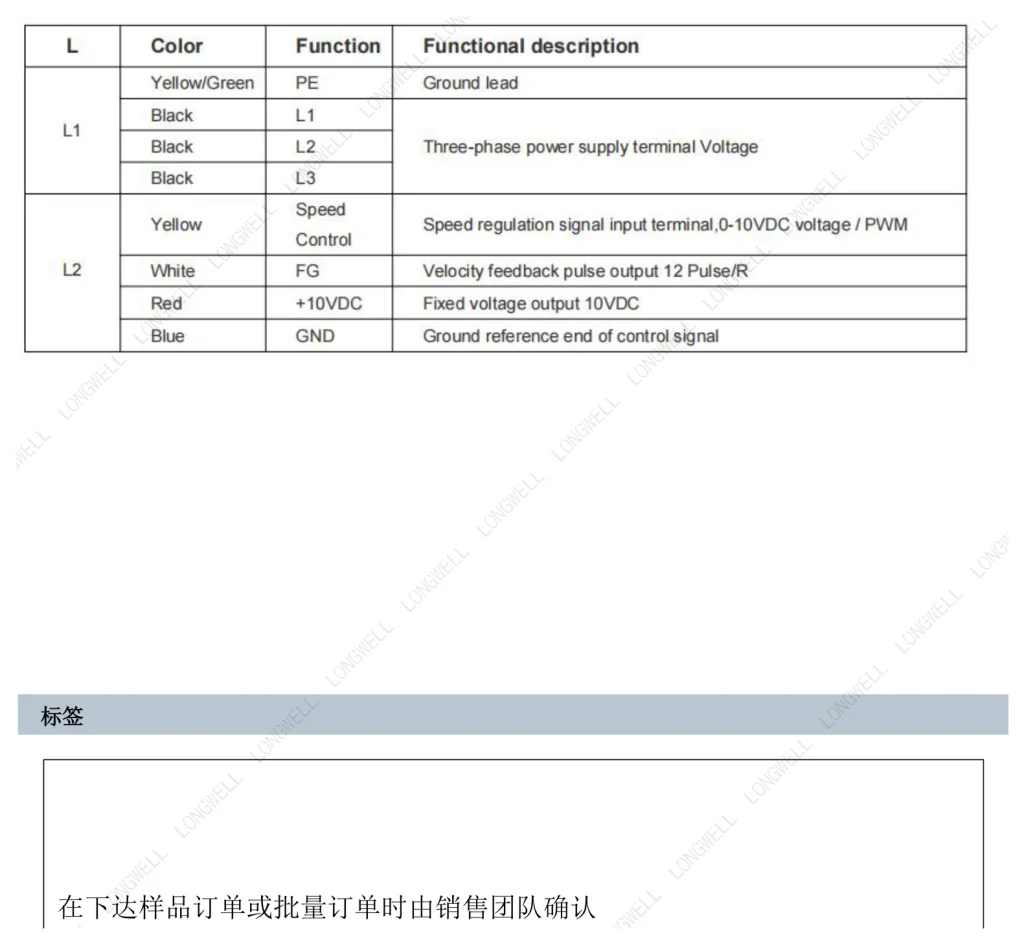

LWFE3G280-138DS-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFE3G280-138DS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFE3G280-138DS-01

LWFE3G280-138DS-01 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø280 mm, rated 380 V EC, maximum airflow 4,223 m³/h, maximum static pressure 917 Pa, noise 72 dB(A), input power 600 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G280-138DS-01
Series	LWFE3G280
Motor type	EC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	1.1 A
Input power	600 W
Speed	800 rpm
Max. airflow	4,223 m³/h
Max. airflow (CFM)	2,484 CFM
Max. static pressure	917 Pa
Noise	72 dB(A)
Ambient temperature	-25 ~ 60 °C
Altitude	< 1000m
Impeller diameter	Ø280 mm
Rotor diameter	138 mm
Impeller material	Galvanised sheet steel( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	According to JB/T 9101-1999 requirements G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °C room, humidity 15%~65%RH.
Speed control	Control input 0~10VDC / PWM/(RS485 external control box can be connected)
Control signal	Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.1VDC, the motor switches from operating mode to standby mode)
PWM input	PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% .
Speed feedback	Tach output: 12 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Over-temperature protection, Over-current protection, Locked-rotor protection’
Soft start	Delay time <30 seconds to full speed

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
