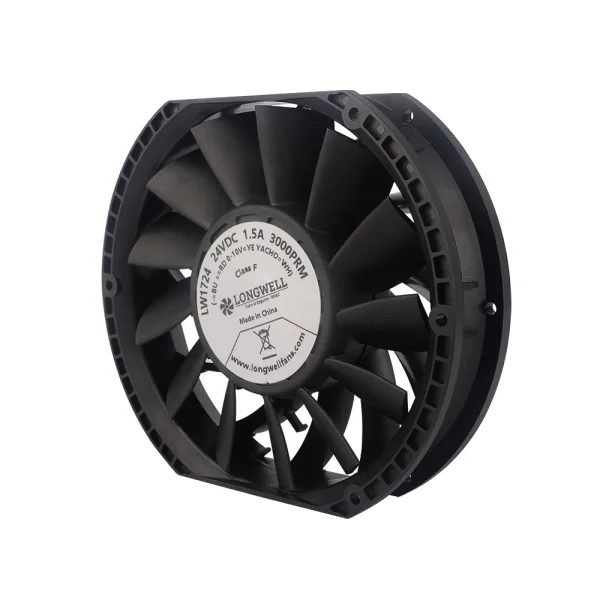

LWAD17238MX-01 DC Axial Cooling Fan 172 mm

172 mm | DC | Max airflow 508.8 m³/h | Max static pressure 186 Pa | 57.4 dB(A)

SKU: LWAD17238MX-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

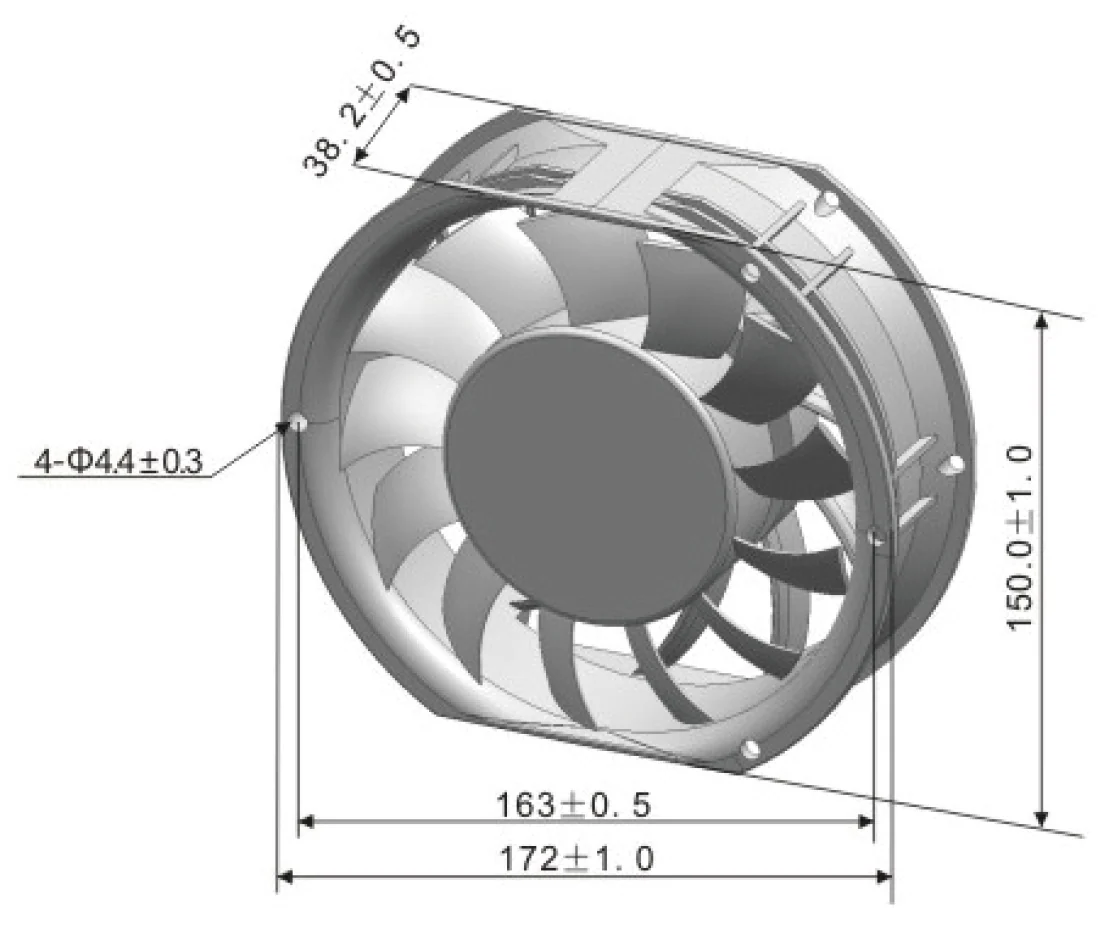

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAD17238MX-01 Dimensional drawing
Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAD17238MX-01 Performance curve (P-Q)

Downloads for LWAD17238MX-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD17238MX-01 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 172 mm, rated 24 V DC, maximum airflow 508.8 m³/h, maximum static pressure 186 Pa, noise 57.4 dB(A), input power 36 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWAD17238MX-01
Series LWAD17238
Motor type DC
Rated voltage 24 V
Current 1.5 A
Input power 36 W
Speed 3,000 rpm
Max. airflow 508.8 m³/h
Max. static pressure 186 Pa
Noise 57.4 dB(A)
Humidity 5 % RH ~ 65% RH
Frame size 172 mm
Dimensions 172x38mm
Impeller material Plastic(UL94-VO)
Bearing Type : Two Ball Bearings

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAD17238: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (172 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAD17238MX-01 this model 508.8 m³/h186 Pa 3,000 rpm36 W57.4 dB(A)24 V
LWAD17251HL-05 311.4 m³/h105 Pa 2,500 rpm28.8 W50.9 dB(A)48 V View
LWAD17251HM-04 373.8 m³/h151 Pa 3,000 rpm48 W54.9 dB(A)48 V View
LWAD17251HH-03 436.2 m³/h206 Pa 3,500 rpm57.6 W58.2 dB(A)48 V View
LWAD17251HX-02 498 m³/h269 Pa 4,000 rpm76.8 W61.1 dB(A)48 V View
LWAD17251HL-10 516.6 m³/h248 Pa 4,000 rpm28.8 W66.2 dB(A)48 V View
LWAD17251ML-10 516.6 m³/h248 Pa 4,000 rpm36 W66.2 dB(A)24 V View
LWAD17251HM-09 580.8 m³/h314 Pa 4,500 rpm48 W68.8 dB(A)48 V View
LWAD17251MM-09 580.8 m³/h314 Pa 4,500 rpm48 W68.8 dB(A)24 V View
LWAD17251HH-08 645.6 m³/h387 Pa 5,000 rpm57.6 W71 dB(A)48 V View
LWAD17251MH-08 645.6 m³/h387 Pa 5,000 rpm60 W71 dB(A)24 V View
LWAD17251HX-07 710.4 m³/h469 Pa 5,500 rpm76.8 W73.1 dB(A)48 V View
LWAD17251MX-07 710.4 m³/h469 Pa 5,500 rpm84 W73.1 dB(A)24 V View
LWAD17251HX-06 774.6 m³/h558 Pa 6,000 rpm96 W75 dB(A)48 V View
LWAD17251MX-06 774.6 m³/h558 Pa 6,000 rpm108 W75 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Other models in the LWAD17238 seriesSame impeller, different speed grade or wiring
