DC Axial Cooling Fan performance curve (shared by several models)

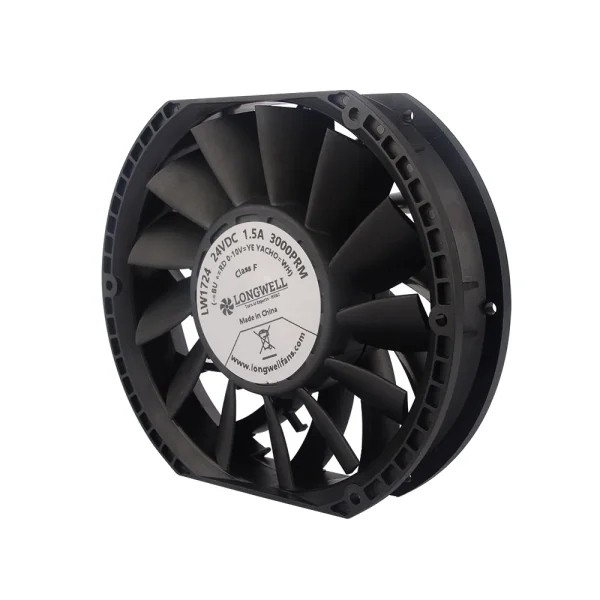

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size172 mm6.8 in
Max airflow339.6 m³/h200 CFM
Max static pressure83 Pa0.33 in. wg
Voltage24 V
Speed2,000 rpm
Input power12 W
Noise48.6 dB(A)

LWAD17238MX-03 DC Axial Cooling Fan 172 mm

172 mm | DC | Max airflow 339.6 m³/h | Max static pressure 83 Pa | 48.6 dB(A)

SKU: LWAD17238MX-03 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAD17238MX-032 files · direct download

WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Drive & control cabinets Access control Automation cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAD17238MX-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD17238MX-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing & Curve LWAD17238MX-03

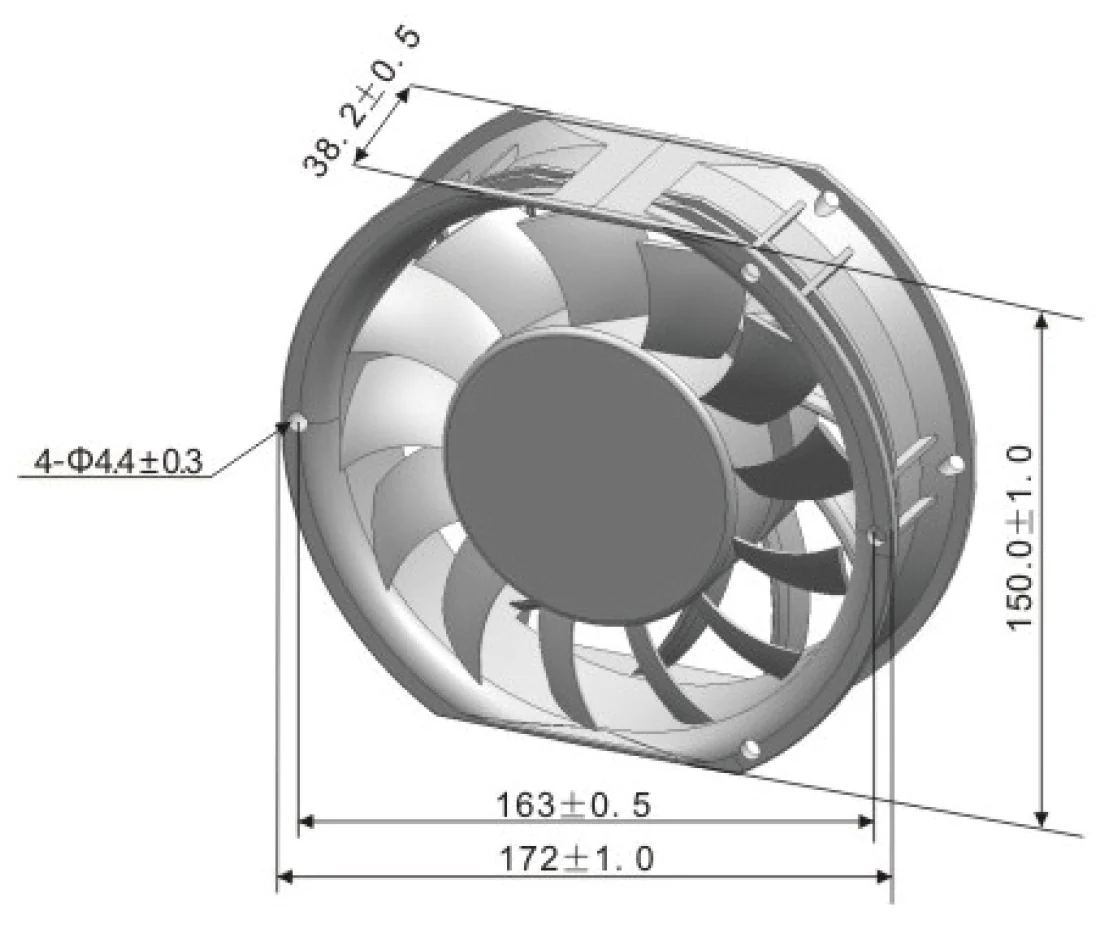

LWAD17238MX-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD17238MX-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAD17238MX-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD17238MX-03

LWAD17238MX-03 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 172 mm, rated 24 V DC, maximum airflow 339.6 m³/h, maximum static pressure 83 Pa, noise 48.6 dB(A), input power 12 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD17238MX-03
Series	LWAD17238
Motor type	DC
Rated voltage	24 V
Current	0.5 A
Input power	12 W
Speed	2,000 rpm
Max. airflow	339.6 m³/h
Max. static pressure	83 Pa
Noise	48.6 dB(A)
Frame size	172 mm
Dimensions	172x38mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD17238: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAD17238MX-03

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same frame size (172 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD17238MX-03 this model	339.6 m³/h	83 Pa	2,000 rpm	12 W	48.6 dB(A)	24 V
LWAD17251HL-05	311.4 m³/h	105 Pa	2,500 rpm	28.8 W	50.9 dB(A)	48 V	View
LWAD17251HM-04	373.8 m³/h	151 Pa	3,000 rpm	48 W	54.9 dB(A)	48 V	View
LWAD17251HH-03	436.2 m³/h	206 Pa	3,500 rpm	57.6 W	58.2 dB(A)	48 V	View
LWAD17251HX-02	498 m³/h	269 Pa	4,000 rpm	76.8 W	61.1 dB(A)	48 V	View
LWAD17251HL-10	516.6 m³/h	248 Pa	4,000 rpm	28.8 W	66.2 dB(A)	48 V	View
LWAD17251ML-10	516.6 m³/h	248 Pa	4,000 rpm	36 W	66.2 dB(A)	24 V	View
LWAD17251HM-09	580.8 m³/h	314 Pa	4,500 rpm	48 W	68.8 dB(A)	48 V	View
LWAD17251MM-09	580.8 m³/h	314 Pa	4,500 rpm	48 W	68.8 dB(A)	24 V	View
LWAD17251HH-08	645.6 m³/h	387 Pa	5,000 rpm	57.6 W	71 dB(A)	48 V	View
LWAD17251MH-08	645.6 m³/h	387 Pa	5,000 rpm	60 W	71 dB(A)	24 V	View
LWAD17251HX-07	710.4 m³/h	469 Pa	5,500 rpm	76.8 W	73.1 dB(A)	48 V	View
LWAD17251MX-07	710.4 m³/h	469 Pa	5,500 rpm	84 W	73.1 dB(A)	24 V	View
LWAD17251HX-06	774.6 m³/h	558 Pa	6,000 rpm	96 W	75 dB(A)	48 V	View
LWAD17251MX-06	774.6 m³/h	558 Pa	6,000 rpm	108 W	75 dB(A)	24 V	View
