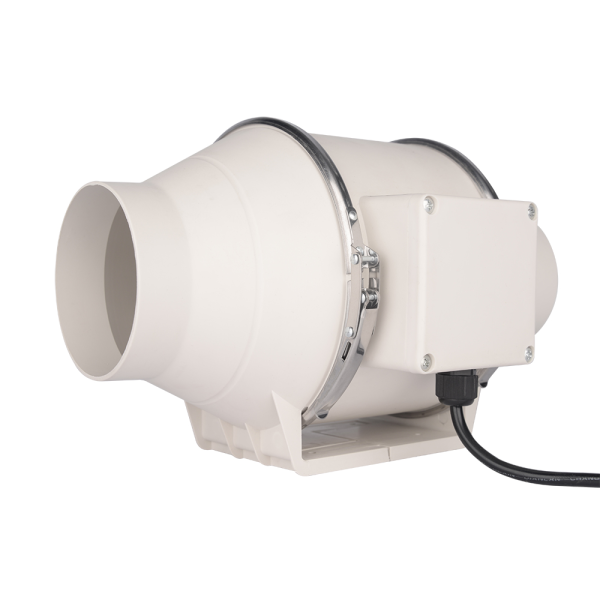

LWDA-100(4")S-PWN-15 product photo
LWDA-100(4")S-PWN-15 product photo
  • ImpellerØ100 mm
  • Max airflow205 m³/h
  • Max static pressure135 Pa
  • Voltage230 V
  • Speed1,900 rpm
  • Input power25 W
  • Noise24 dB(A)

LWDA-100(4″)S-PWN-15 AC Plastic Inline Duct Fan Ø100 mm

Ø100 mm | AC | Max airflow 205 m³/h | Max static pressure 135 Pa | 24 dB(A)

SKU: LWDA-100(4")S-PWN-15 Categories: ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

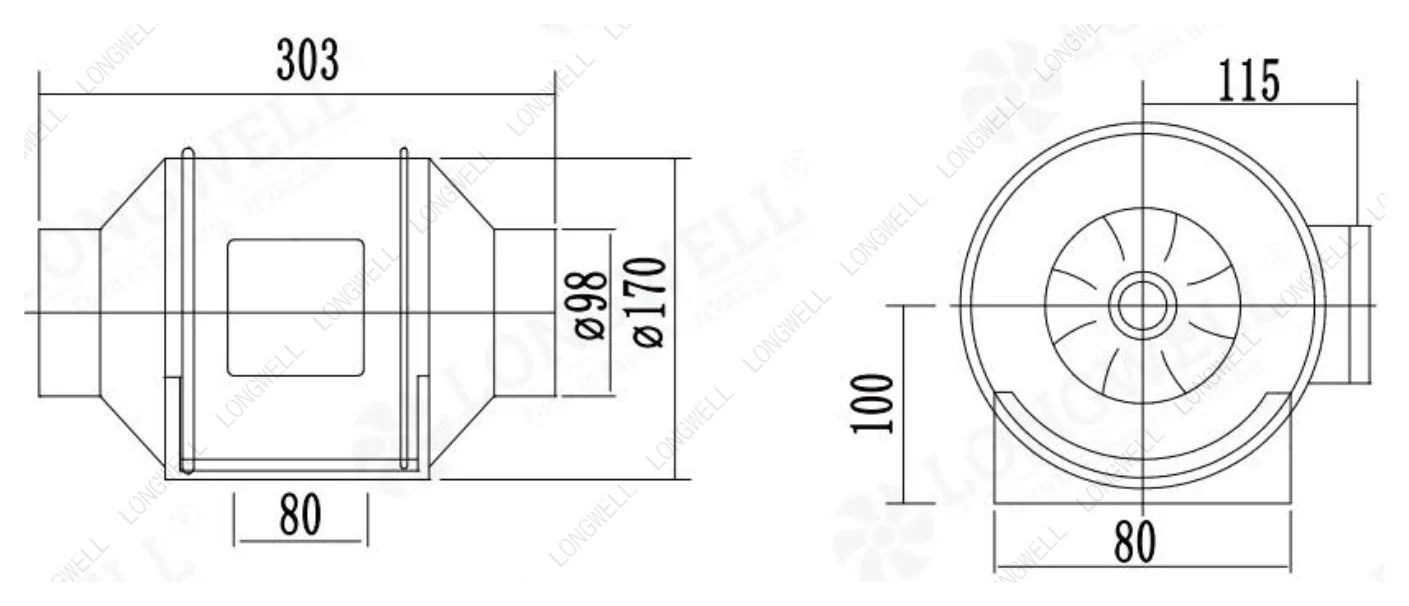

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWDA-100(4")S-PWN-15 Dimensional drawing

Downloads for LWDA-100(4")S-PWN-15

PDFDatasheet · 506 KBDOCXDatasheet · 432 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-100(4")S-PWN-15 is a LONGWELL AC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø100 mm, rated 230 V AC, maximum airflow 205 m³/h, maximum static pressure 135 Pa, noise 24 dB(A), input power 25 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWDA-100(4")S-PWN-15
Series LWDA100
Motor type AC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Current 0.11 A
Input power 25 W
Speed 1,900 rpm
Max. airflow 205 m³/h
Max. static pressure 135 Pa
Noise 24 dB(A)
Storage temperature -25 ~ 60℃
Humidity 15 ~ 85% RH
Altitude < 1000m
Impeller diameter Ø100 mm
Inlet diameter 100mm
Balance grade G6.3
Vibration standard JB/T 8689
Service life 50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

  • Residential and commercial fresh-air systems
  • Kitchen and bathroom exhaust
  • Local pressurisation and booster duty
  • Hotel and office ventilation

Series LWDA100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø100 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWDA-100(4")S-PWN-15 this model 205 m³/h135 Pa 1,900 rpm25 W24 dB(A)230 V
LWDA-100(4")S-MWN-08 140 m³/h58 Pa 2,800 rpm20 W48 dB(A)220 V View
LWDA-100(4")U-PWN-17 205 m³/h135 Pa 1,900 rpm34 W24 dB(A)115 V View
LWDA-100S-MBN-14 242 m³/h326 Pa 2,450 rpm60 W59 dB(A)230 V View
LWDA-100S-PWN-15 319 m³/h185 Pa 2,550 rpm40 W25 dB(A)230 V View
LWDA-100(4")U-PWN-16 325 m³/h163 Pa 2,360 rpm34 W30 dB(A)115 V View
LWDA-100(4")S-PWN-14 325 m³/h163 Pa 2,360 rpm36 W30 dB(A)230 V View
LWDA-100 (4")U-PWN-01 410 m³/hsee curve 3,350 rpm41 W52 dB(A)110-120 V View
LWDA-100 (4")U-MWN-03 410 m³/hsee curve 3,350 rpm41 W51 dB(A)110-120 V View
LWDA-100 (4")S-PWN-02 605 m³/h168 Pa 2,900 rpm41 W51 dB(A)220-240 V View

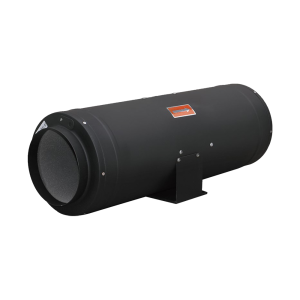

LWDA-100 (4")S-MWN-04 605 m³/hsee curve 2,900 rpm41 W49 dB(A)220-240 V View
LWCA-100520SN-06 950 m³/h128 Pa 1,400 rpm75 W58 dB(A)230 V View
LWCA-100620SN-06 1,100 m³/h151 Pa 1,400 rpm90 W59 dB(A)230 V View
LWCA-100720SN-06 1,300 m³/h175 Pa 1,400 rpm100 W60 dB(A)230 V View
LWCA-100820SN-06 1,500 m³/h203 Pa 1,400 rpm110 W61 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
