ImpellerØ450 mm17.7 in
Max airflow6,386 m³/h3,759 CFM
Max static pressure232 Pa0.93 in. wg
Voltage220/230 V
Speed1,600 rpm
Input power445 W
Noise68 dB(A)

LWAE3G450ST-5MEW-08 EC Axial Fan Ø450 mm

Ø450 mm | EC | Max airflow 6,386 m³/h | Max static pressure 232 Pa | 68 dB(A)

SKU: LWAE3G450ST-5MEW-08 Categories: Axial Fans, EC Axial Fans, Impeller Ø300–450 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAE3G450ST-5MEW-08

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAE3G450ST-5MEW-08drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

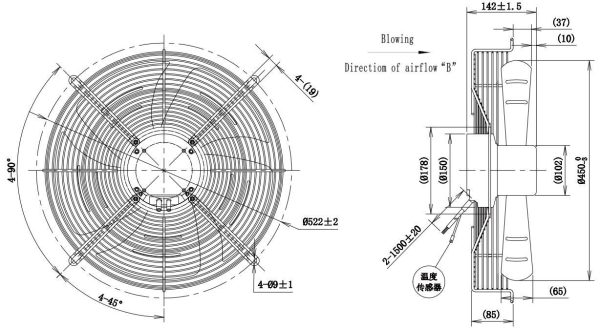

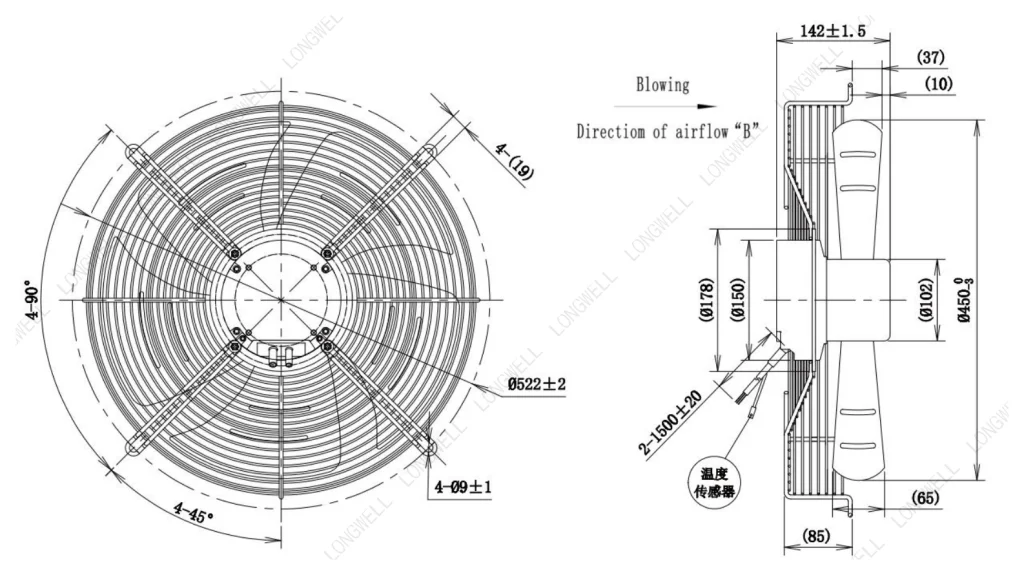

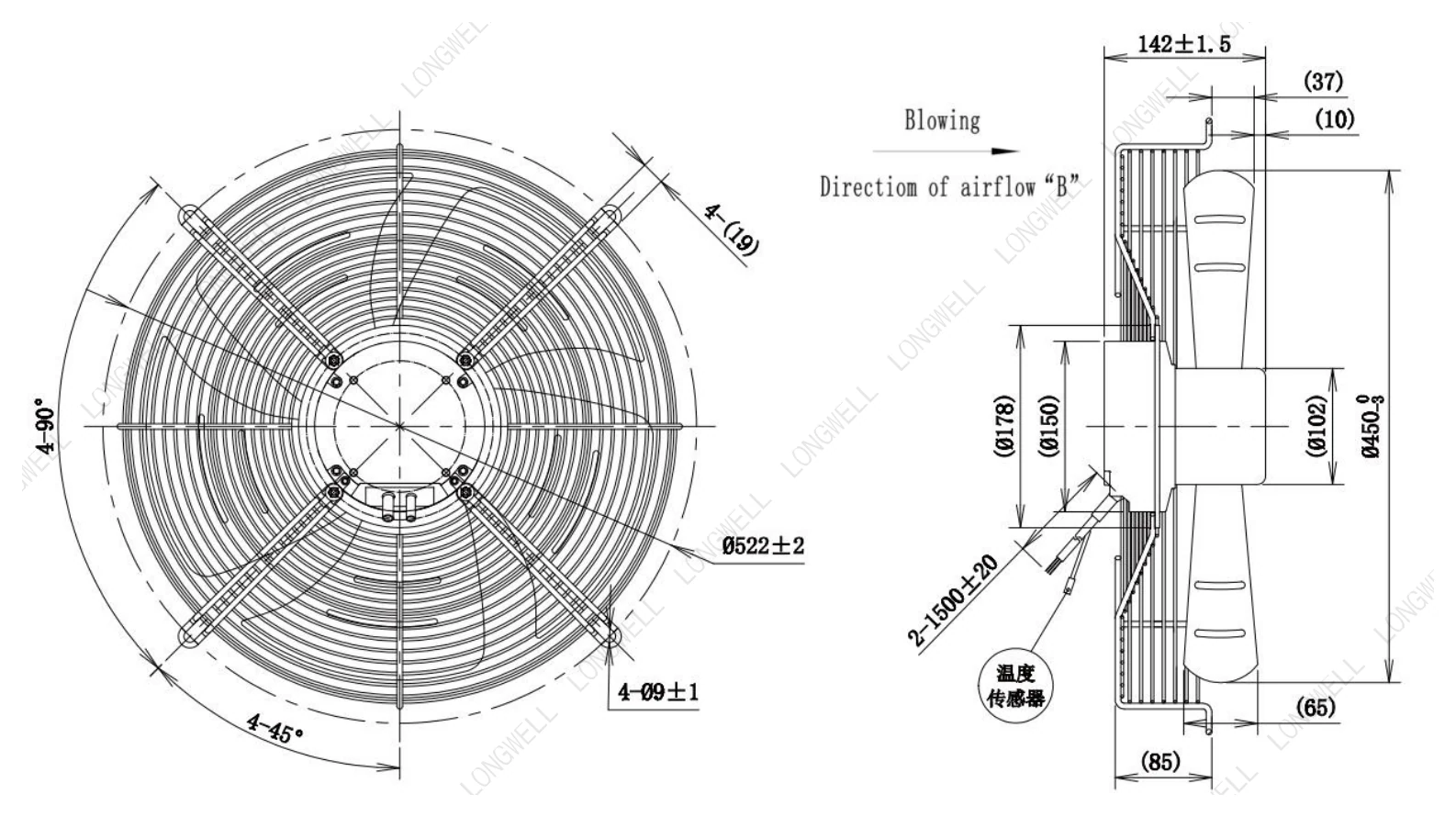

LWAE3G450ST-5MEW-08 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

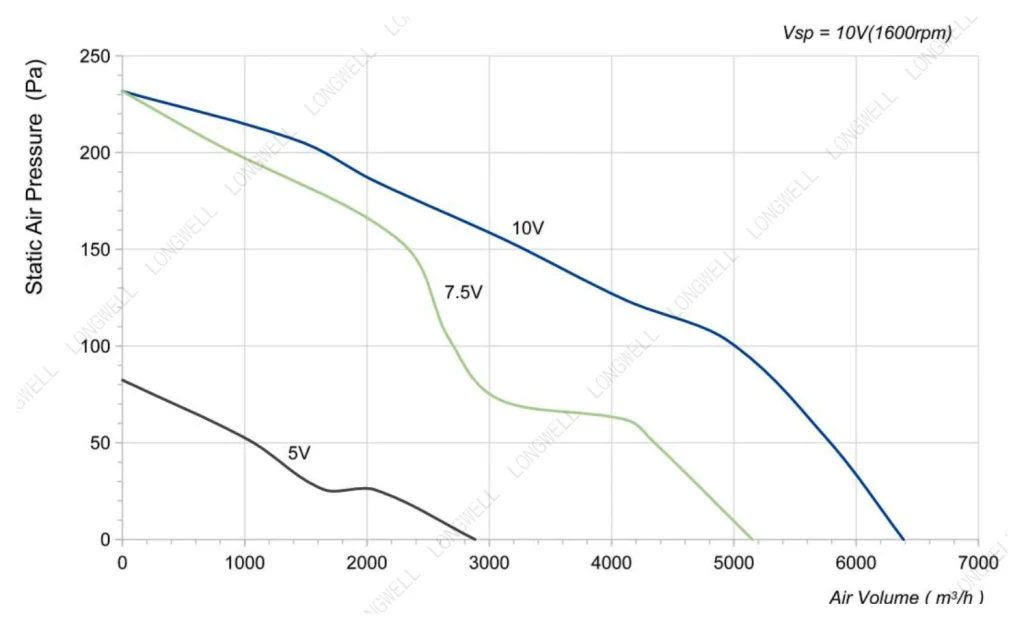

LWAE3G450ST-5MEW-08 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

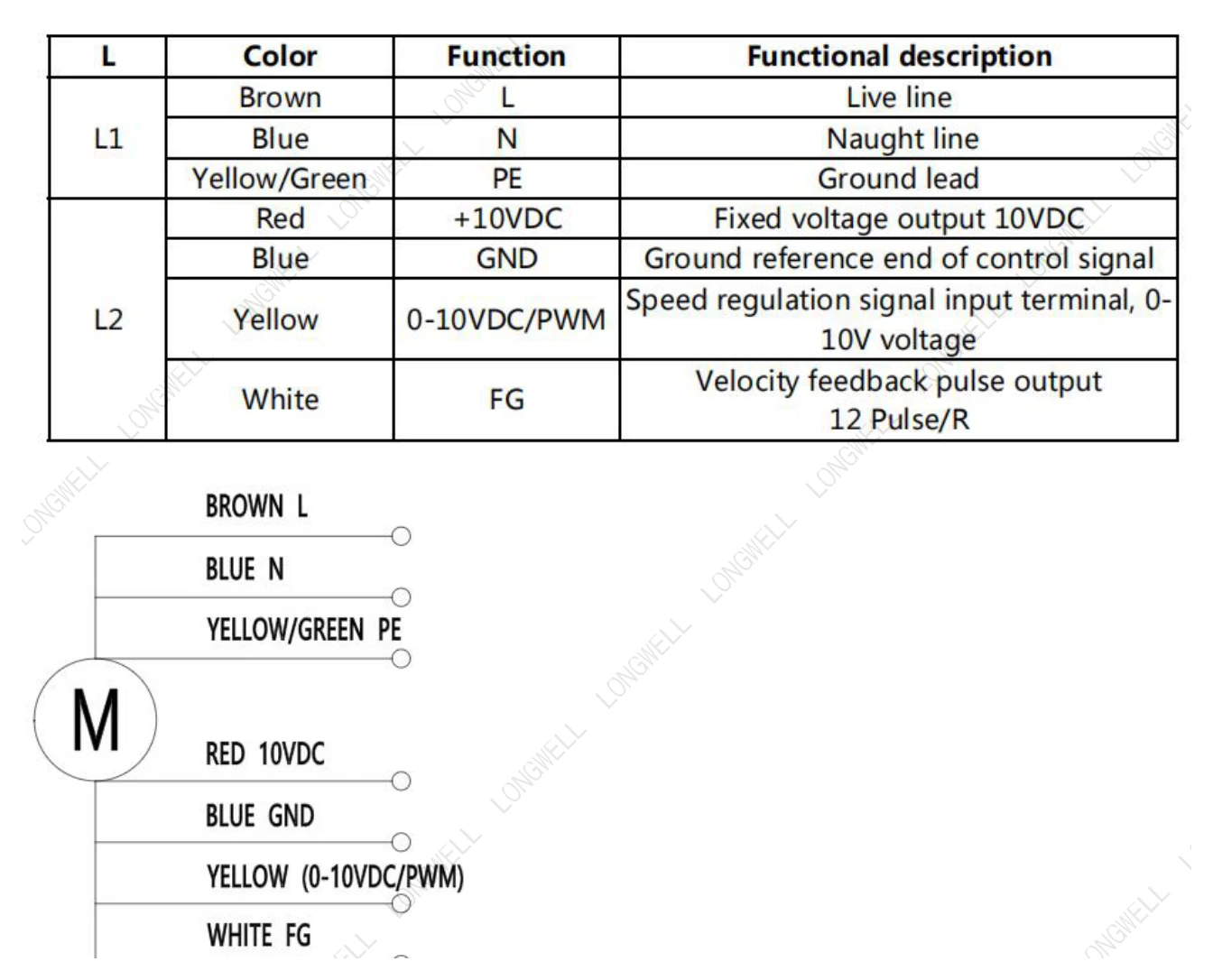

LWAE3G450ST-5MEW-08 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAE3G450ST-5MEW-08

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE3G450ST-5MEW-08 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø450 mm, rated 220/230 V EC, maximum airflow 6,386 m³/h, maximum static pressure 232 Pa, noise 68 dB(A), input power 445 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G450ST-5MEW-08
Series	LWAE3G450
Motor type	EC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	176 ~ 264 V
Frequency	50 Hz
Current	2.15 A
Input power	445 W
Speed	1,600 rpm
Max. airflow	6,386 m³/h
Max. static pressure	232 Pa
Noise	68 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø450 mm
Impeller material	Sheet steel ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G450: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø450 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAE3G450ST-5MEW-08 this model	6,386 m³/h	232 Pa	1,600 rpm	445 W	68 dB(A)	220/230 V
LWBE3G450-138PT-12	5,329 m³/h	452 Pa	1,200 rpm	386 W	—	400 V	View
LWBE3G450-138PT-13	7,182 m³/h	730 Pa	1,610 rpm	900 W	—	400 V	View
LWBE3G450-188PT-07	7,425 m³/h	1,568 Pa	2,400 rpm	1,590 W	—	400 V	View
LWBE3G450-188NT-15	7,425 m³/h	1,568 Pa	2,400 rpm	1,590 W	70 dB(A)	400 V	View
LWFE3G450-102PS-11	7,467.5 m³/h	1,030 Pa	1,450 rpm	700 W	70 dB(A)	230 V	View
LWBE3G450-138PT-04	7,828 m³/h	824 Pa	1,720 rpm	910 W	79 dB(A)	400 V	View
LWBE3G450-188PT-08	8,019 m³/h	1,802 Pa	2,600 rpm	2,060 W	—	400 V	View
LWBE3G450-188NT-16	8,019 m³/h	1,802 Pa	2,600 rpm	2,060 W	74 dB(A)	400 V	View
LWFE3G450-102PT-06	8,652 m³/h	1,390.5 Pa	1,500 rpm	1,100 W	85 dB(A)	400 V	View
LWBE3G450-188PT-09	8,661 m³/h	2,114 Pa	2,800 rpm	2,595 W	—	400 V	View
LWBE3G450-188NT-17	8,661 m³/h	2,114 Pa	2,800 rpm	2,595 W	85 dB(A)	400 V	View
LWBE3G450-188PT-16	8,985 m³/h	840 Pa	2,600 rpm	2,400 W	—	400 V	View
LWBE3G450-188NT-22	10,752 m³/h	1,669 Pa	2,400 rpm	2,400 W	92 dB(A)	380 V	View
LWBE3G450-188NT-21	12,647 m³/h	2,342 Pa	2,800 rpm	4,600 W	96 dB(A)	380 V	View
