ImpellerØ90 mm3.5 in
Max airflow1,567 m³/h922 CFM
Max static pressure183 Pa0.73 in. wg
Voltage24 V
Speed1,500 rpm
Input power96 W
Noise59 dB(A)

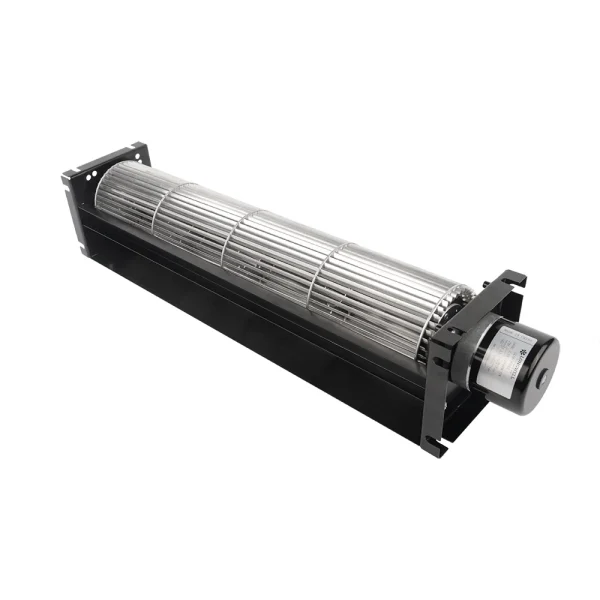

LWCD-90930MN-06 DC Cross Flow Fan Ø90 mm

Ø90 mm | DC | Max airflow 1,567 m³/h | Max static pressure 183 Pa | 59 dB(A)

SKU: LWCD-90930MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø60–150 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWCD-90930MN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWCD-90930MN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

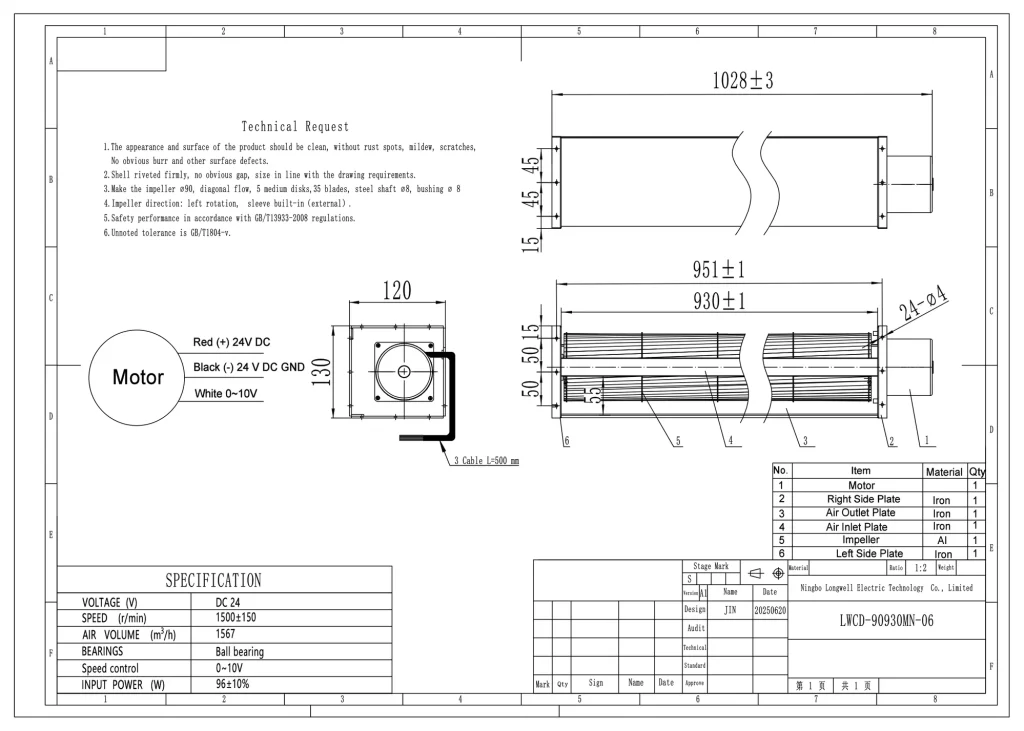

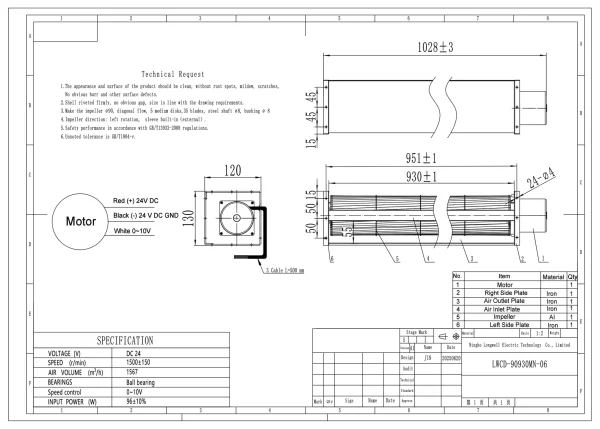

LWCD-90930MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWCD-90930MN-06

PDFDatasheet PDFDrawing · 326 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-90930MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø90 mm, rated 24 V DC, maximum airflow 1,567 m³/h, maximum static pressure 183 Pa, noise 59 dB(A), input power 96 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-90930MN-06
Series	LWCD90930
Motor type	DC
Inlet	Single inlet
Rated voltage	24 V
Input power	96 W
Speed	1,500 rpm
Max. airflow	1,567 m³/h
Max. static pressure	183 Pa
Noise	59 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø90 mm
Outlet length	930mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD90930: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø90 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-90930MN-06 this model	1,567 m³/h	183 Pa	1,500 rpm	96 W	59 dB(A)	24 V
LWCD-90360MN-06	607 m³/h	70 Pa	1,500 rpm	24.5 W	54 dB(A)	24 V	View
LWCD-90520MN-06	876 m³/h	102 Pa	1,500 rpm	40 W	56 dB(A)	24 V	View
LWCD-90680MN-06	1,146 m³/h	130 Pa	1,500 rpm	65 W	57 dB(A)	24 V	View
LWCD-90800MN-06	1,348 m³/h	157 Pa	1,500 rpm	80 W	58 dB(A)	24 V	View
