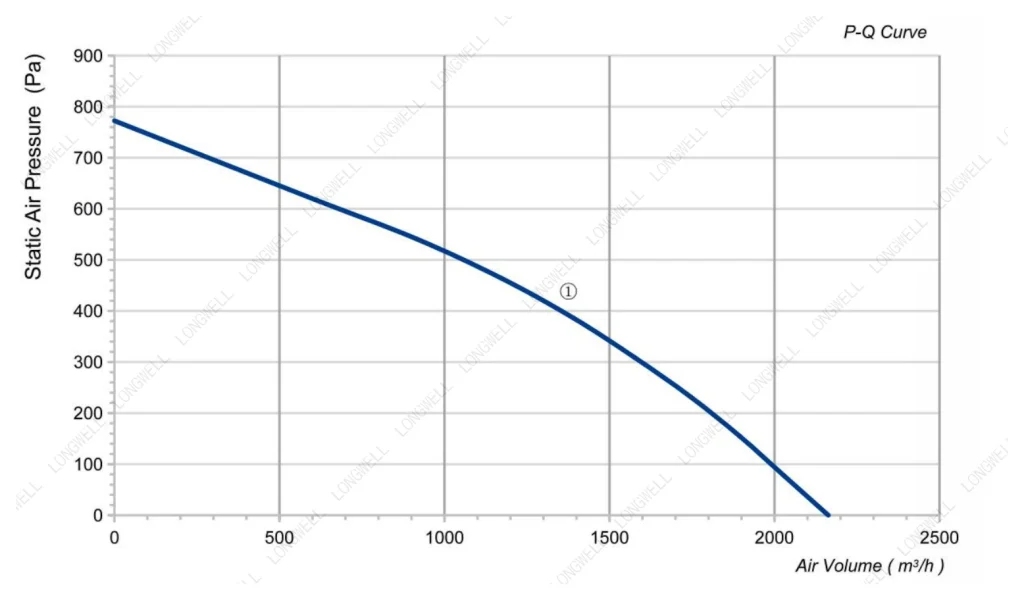

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ280 mm11.0 in
- Max airflow2,163 m³/h1,273 CFM
- Max static pressure773 Pa3.10 in. wg
- Voltage230 V
- Speed2,700 rpm
- Input power330 W
- Noise80 dB(A)
LWBA2E280-102NS-07 AC Backward Curved Centrifugal Fan Ø280 mm
Ø280 mm | AC | Max airflow 2,163 m³/h | Max static pressure 773 Pa | 80 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

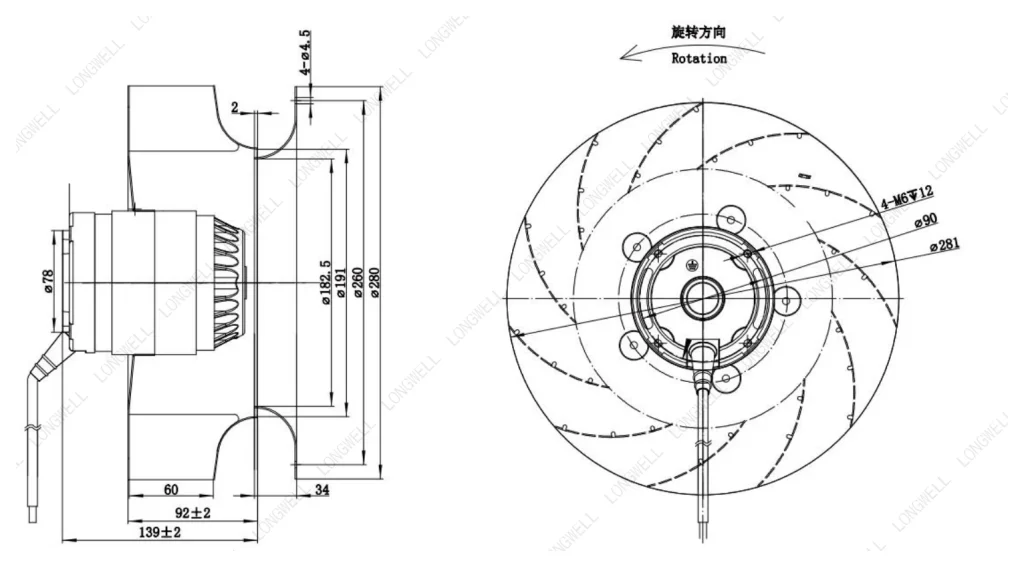

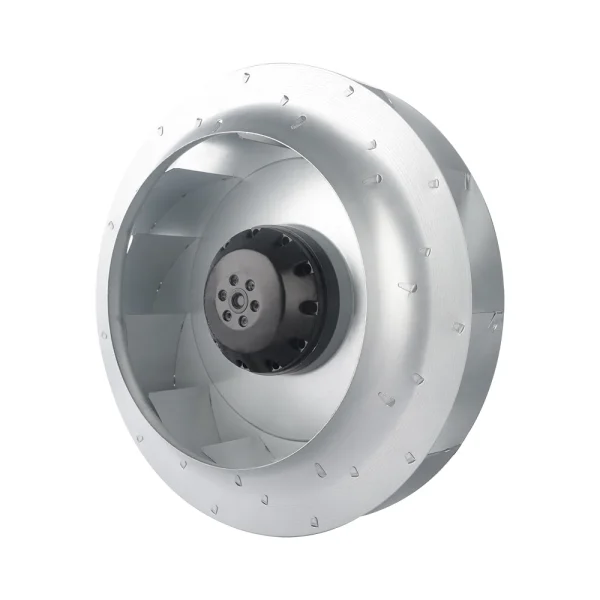

LWBA2E280-102NS-07 — construction, airflow path and running condition.
LWBA2E280-102NS-07 AC Backward Curved Centrifugal Fan | Shipping & Packing · open in video library
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBA2E280-102NS-07 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø280 mm, rated 230 V AC, maximum airflow 2,163 m³/h, maximum static pressure 773 Pa, noise 80 dB(A), input power 330 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA2E280-102NS-07 |
|---|---|
| Series | LWBA2E280 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.5 A |
| Input power | 330 W |
| Speed | 2,700 rpm |
| Max. airflow | 2,163 m³/h |
| Max. airflow (CFM) | 1,272 CFM |
| Max. static pressure | 773 Pa |
| Noise | 80 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø280 mm |
| Rotor diameter | 102 |
| Impeller material | Galvanized Metal( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2E280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø280 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA2E280-102NS-07 this model | 2,163 m³/h | 773 Pa | 2,700 rpm | 330 W | 80 dB(A) | 230 V | |
| LWBA4E280-092NS-04 | 1,442 m³/h | 288 Pa | 1,500 rpm | 100 W | 66 dB(A) | 230 V | View |
| LWEA280S(T)M-155E | 1,605 m³/h | 60 Pa | 1,450 rpm | 180 W | — | 220 V | View |
| LWBA2D280-102NT-06 | 1,833 m³/h | 773 Pa | 2,650 rpm | 250 W | 80 dB(A) | 380 V | View |
| LWBA2E280-102NS-05 | 1,833 m³/h | 773 Pa | 2,650 rpm | 250 W | 80 dB(A) | 230 V | View |
| LWFA-E-280-02 | 2,100 m³/h | 220 Pa | — | — | 64 dB(A) | — | View |
| LWBA2D280-102NT-08 | 2,163 m³/h | 773 Pa | 2,700 rpm | 330 W | 80 dB(A) | 380 V | View |
| LWFA4E280-188NS-02 | 2,284 m³/h | 391.4 Pa | 1,360 rpm | 1,600 W | 77 dB(A) | 220 V | View |
| LWFA6E280-138NS-04 | 2,318 m³/h | 247.2 Pa | 900 rpm | 450 W | 65 dB(A) | 220 V | View |
| LWFA6D280-138NT-03 | 2,318 m³/h | 247.2 Pa | 900 rpm | 450 W | 65 dB(A) | 380 V | View |
| LWFA-E-280-01 | 2,600 m³/h | 490 Pa | — | — | 69 dB(A) | — | View |
| LWBA2D280-138NT-09 | 2,678 m³/h | 917 Pa | 2,750 rpm | 500 W | 78 dB(A) | 380 V | View |
| LWBA2D280-138NT-10 | 2,833 m³/h | 927 Pa | 2,900 rpm | 680 W | 80 dB(A) | 380 V | View |
| LWEA280S(T)M-156E | 3,202 m³/h | 232 Pa | 2,900 rpm | 250 W | — | 220 V | View |
| LWFA4D280-188NT-01 | 3,502 m³/h | 463.5 Pa | 1,360 rpm | 1,700 W | 77 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
