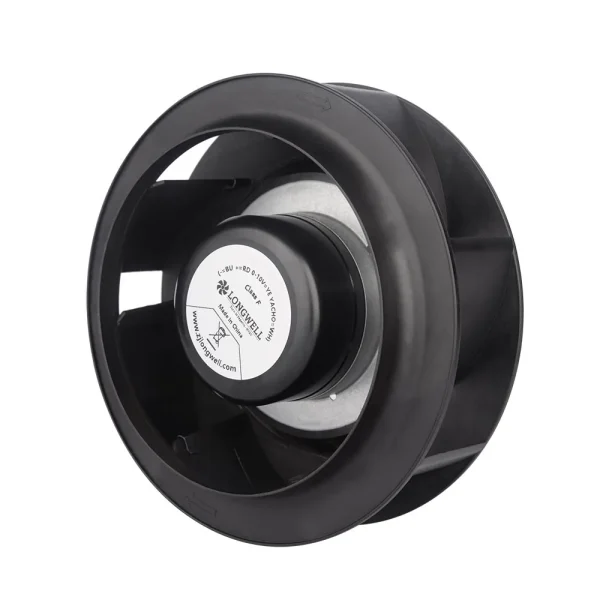

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ190 mm7.5 in
- Max airflow731 m³/h430 CFM
- Max static pressure453 Pa1.82 in. wg
- Voltage48 V
- Speed3,100 rpm
- Input power75 W
- Noise70 dB(A)
LWBD3G190-072NH-05 DC Backward Curved Centrifugal Fan Ø190 mm
Ø190 mm | DC | Max airflow 731 m³/h | Max static pressure 453 Pa | 70 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

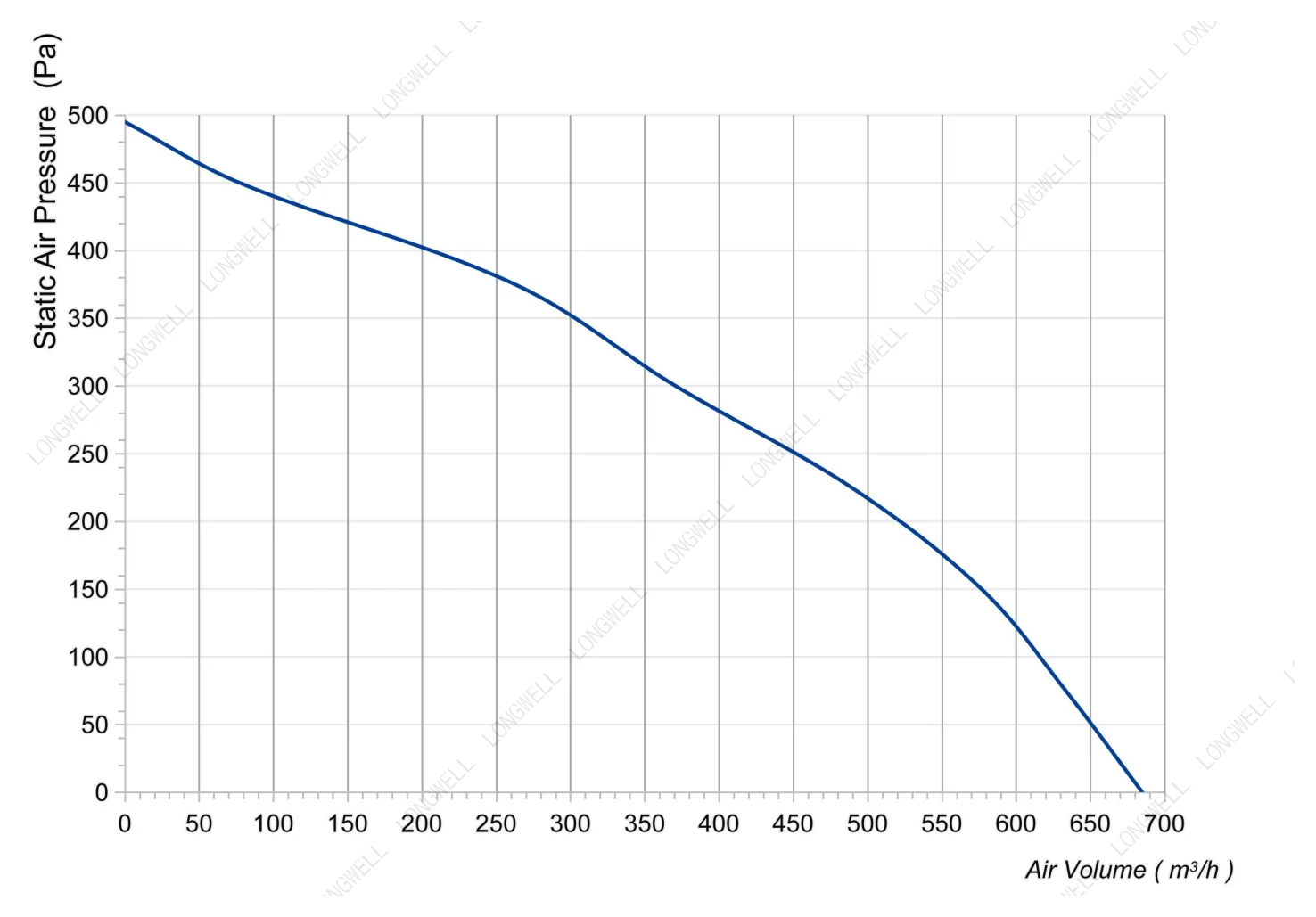

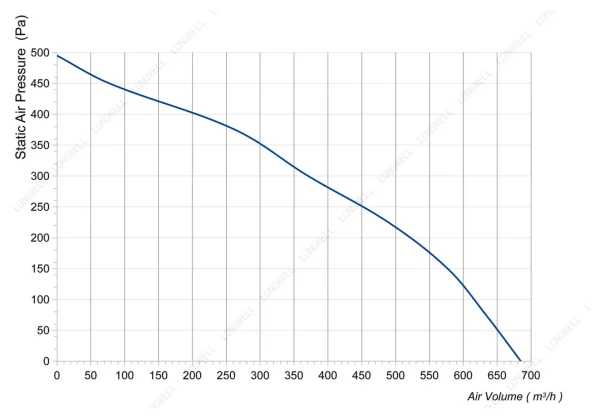

Performance curve (P-Q) LWBD3G190-072NH-05
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 48 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

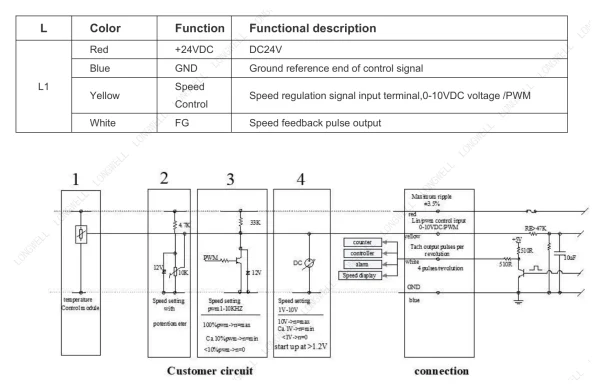

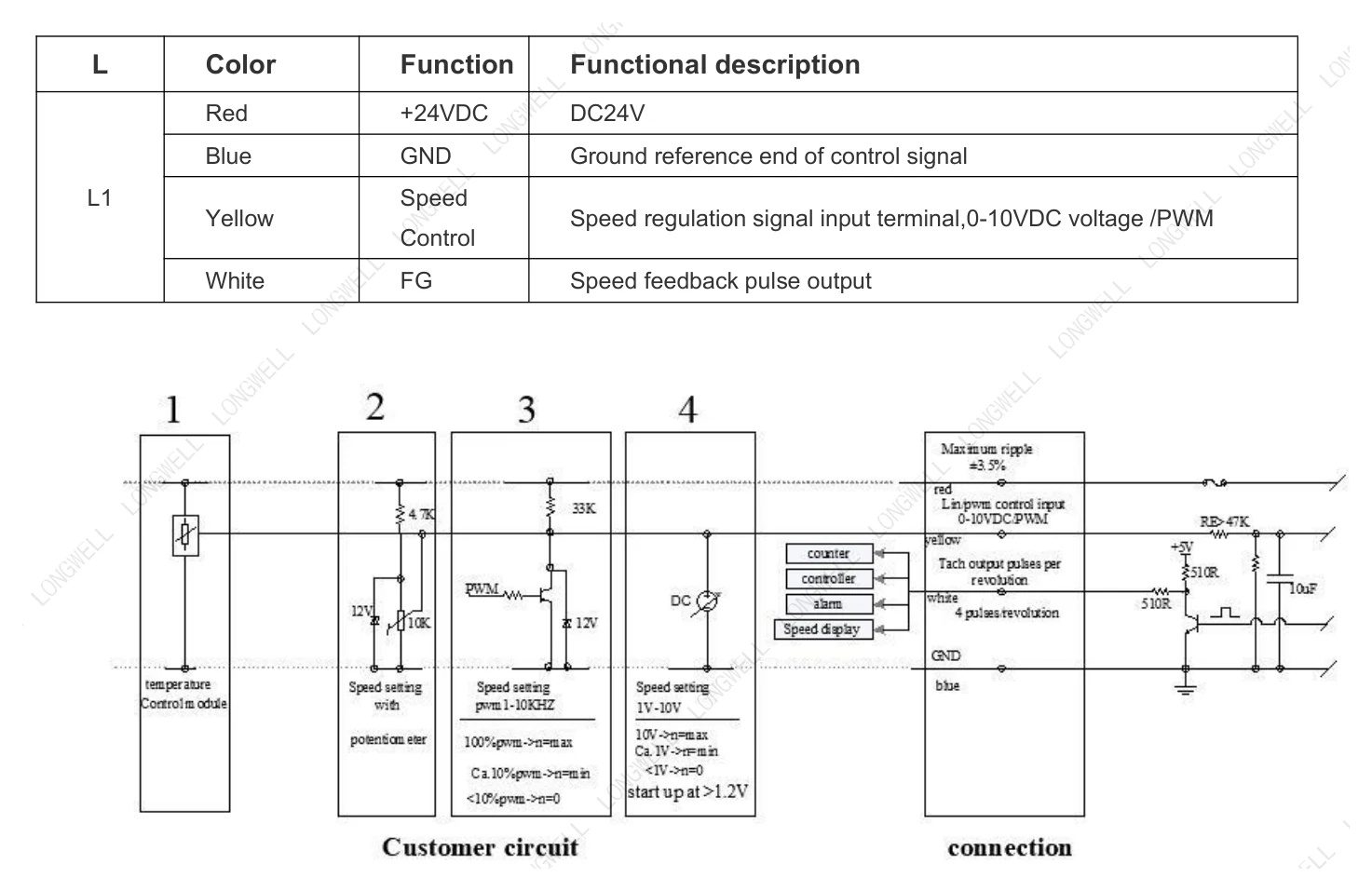

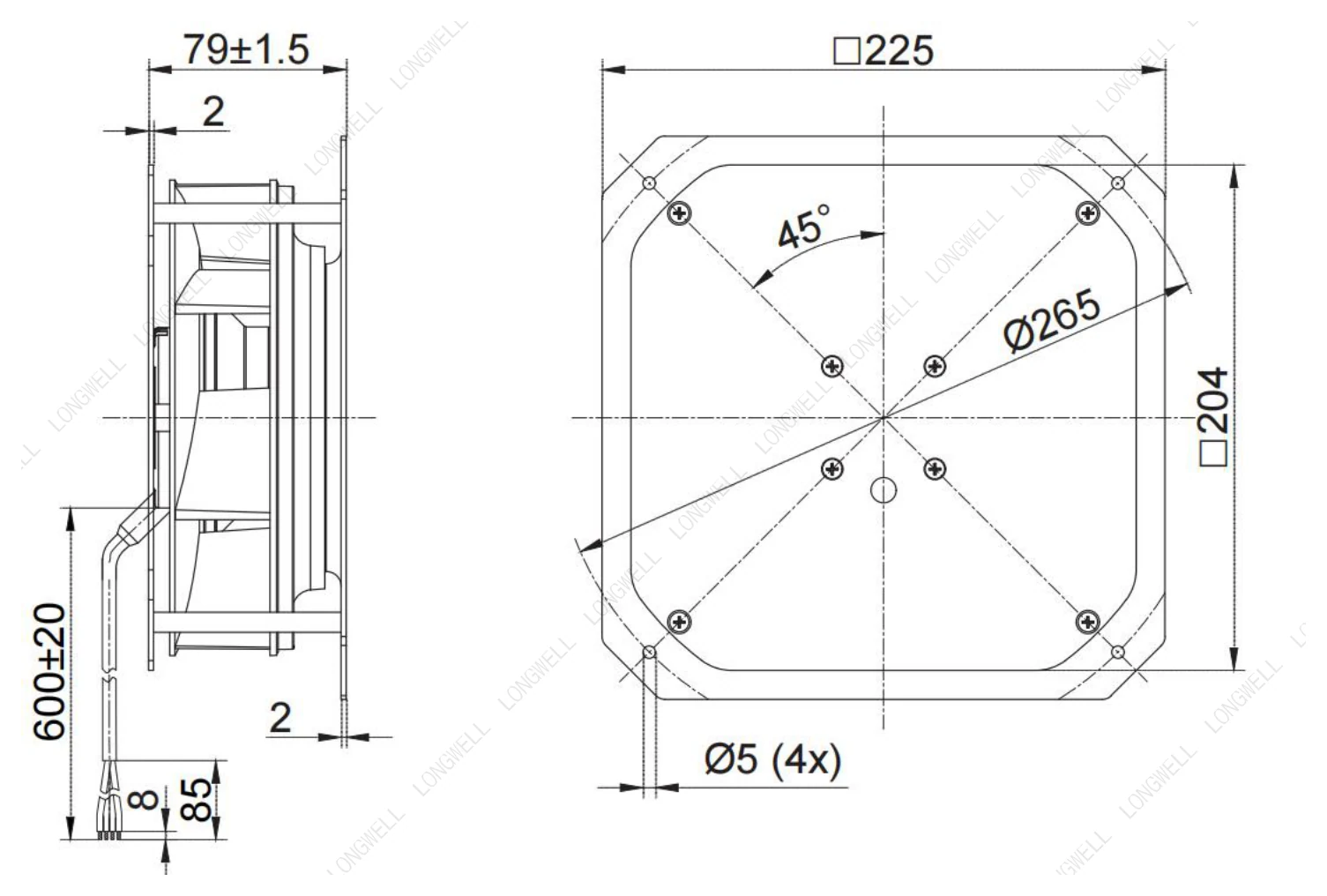

Drawing, Curve & Wiring LWBD3G190-072NH-05
Files for LWBD3G190-072NH-05: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBD3G190-072NH-05
LWBD3G190-072NH-05 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø190 mm, rated 48 V DC, maximum airflow 731 m³/h, maximum static pressure 453 Pa, noise 70 dB(A), input power 75 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWBD3G190-072NH-05 |
|---|---|
| Series | LWBD3G190 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 1.6 A |
| Input power | 75 W |
| Speed | 3,100 rpm |
| Max. airflow | 731 m³/h |
| Max. static pressure | 453 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 72℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø190 mm |
| Rotor diameter | 72 mm |
| Impeller material | PA6+GF ( Impeller ) Bearing Maintenance-free deep groove ball bearings Weight / (Kg) LONGWELL ELL LON Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 9863 ww |
| Protection class | IP42 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate |
| Rotation | Clockwise,seen on rotor |
