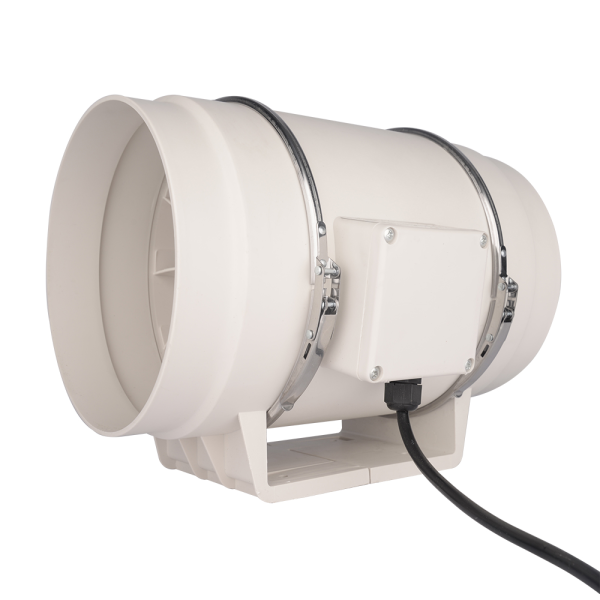

LWDA-200(8")S-PWN-10 product photo
LWDA-200(8")U-PWN-12 product photo
  • ImpellerØ200 mm7.9 in
  • Max airflow735 m³/h433 CFM
  • Max static pressure303 Pa1.22 in. wg
  • Voltage230 V
  • Speed1,650 rpm
  • Input power113 W
  • Noise38 dB(A)

LWDA-200(8″)S-PWN-10 AC Plastic Inline Duct Fan Ø200 mm

Ø200 mm | AC | Max airflow 735 m³/h | Max static pressure 303 Pa | 38 dB(A)

SKU: LWDA-200(8")S-PWN-10 Categories: ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWDA-200(8")S-PWN-10 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-200(8")S-PWN-10 is a LONGWELL AC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø200 mm, rated 230 V AC, maximum airflow 735 m³/h, maximum static pressure 303 Pa, noise 38 dB(A), input power 113 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWDA-200(8")S-PWN-10
Series LWDA200
Motor type AC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Current 0.55 A
Input power 113 W
Speed 1,650 rpm
Max. airflow 735 m³/h
Max. static pressure 303 Pa
Noise 38 dB(A)
Impeller diameter Ø200 mm
Inlet diameter 200mm

Typical applications

  • Residential and commercial fresh-air systems
  • Kitchen and bathroom exhaust
  • Local pressurisation and booster duty
  • Hotel and office ventilation

Series LWDA200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø200 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWDA-200(8")S-PWN-10 this model 735 m³/h303 Pa 1,650 rpm113 W38 dB(A)230 V
LWA-200(8")U(S)M-01 23 m³/hsee curve 2,800 rpm135 W—110-120 V View
LWDA-200 (8")U-MWN-01 720 m³/hsee curve 3,400 rpm179 W65 dB(A)110-120 V View
LWDA-200 (8")U-MWN-03 720 m³/hsee curve 3,400 rpm179 W61 dB(A)110-120 V View
LWDA-200(8")U-PWN-12 750 m³/h302 Pa 1,950 rpm128 W38 dB(A)115 V View
LWDA-200(8")S-PWN-09 910 m³/h384 Pa 2,300 rpm130 W40 dB(A)230 V View
LWDA-200S-MBN-13 987 m³/h515 Pa 2,540 rpm176 W70 dB(A)230 V View
LWFA-E-200-01 1,000 m³/h305 Pa ——58 dB(A)— View
LWDA-200 (8")S-MWN-02 1,150 m³/hsee curve 2,900 rpm143 W59 dB(A)220-240 V View
LWDA-200 (8")S-MWN-04 1,150 m³/hsee curve 2,900 rpm143 W57 dB(A)220-240 V View
LWDA-200S-PWN-14 1,236 m³/h391 Pa 2,500 rpm130 W29 dB(A)230 V View
LWFA4E200-102NS-02 1,236 m³/h226.6 Pa 1,280 rpm330 W59 dB(A)230 V View
LWDA-200(8")U-PWN-11 1,250 m³/h435 Pa 2,480 rpm182 W41 dB(A)115 V View
LWA-200(8")U(S)M-02 1,300 m³/h140 Pa 2,800 rpm120 W—110-120 V View
LWDA-200(8")S-MWN-08 1,300 m³/h140 Pa 2,800 rpm80 W62 dB(A)220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
