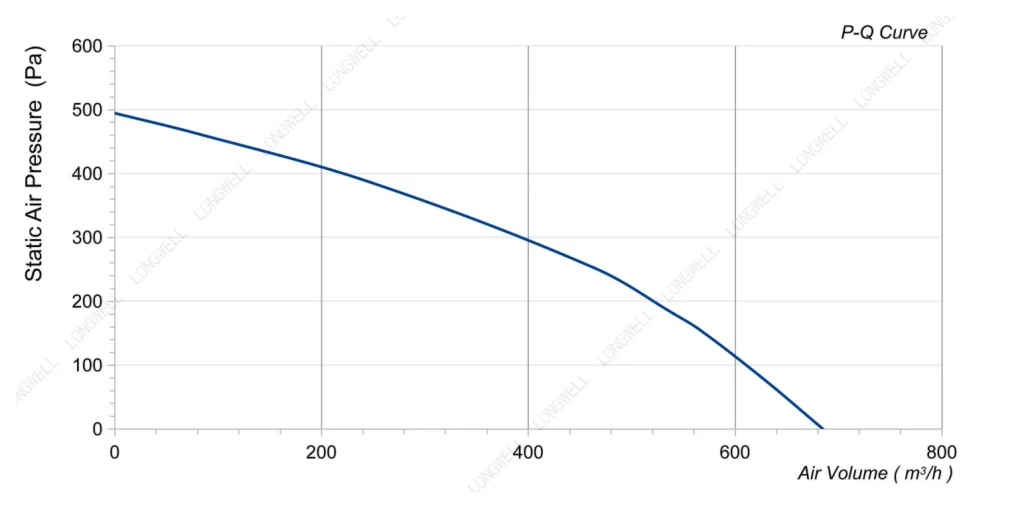

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ190 mm7.5 in
- Max airflow731 m³/h430 CFM
- Max static pressure453 Pa1.82 in. wg
- Voltage24 V
- Speed3,100 rpm
- Input power75 W
- Noise70 dB(A)

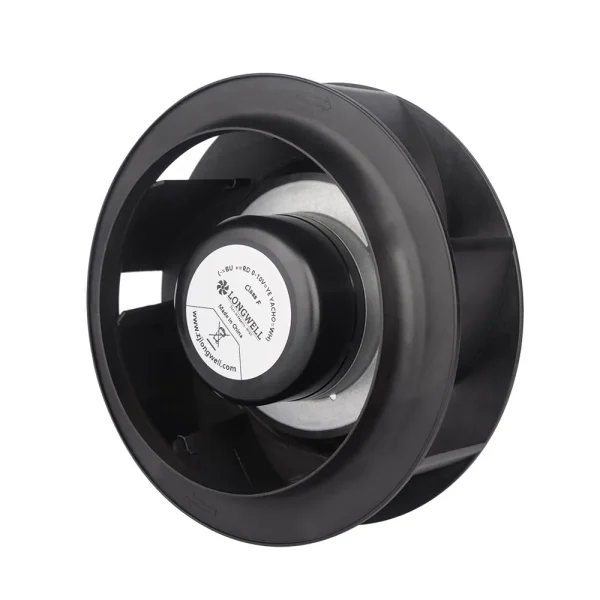

LWBD3G190-072NM-04 DC Backward Curved Centrifugal Fan Ø190 mm
Ø190 mm | DC | Max airflow 731 m³/h | Max static pressure 453 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

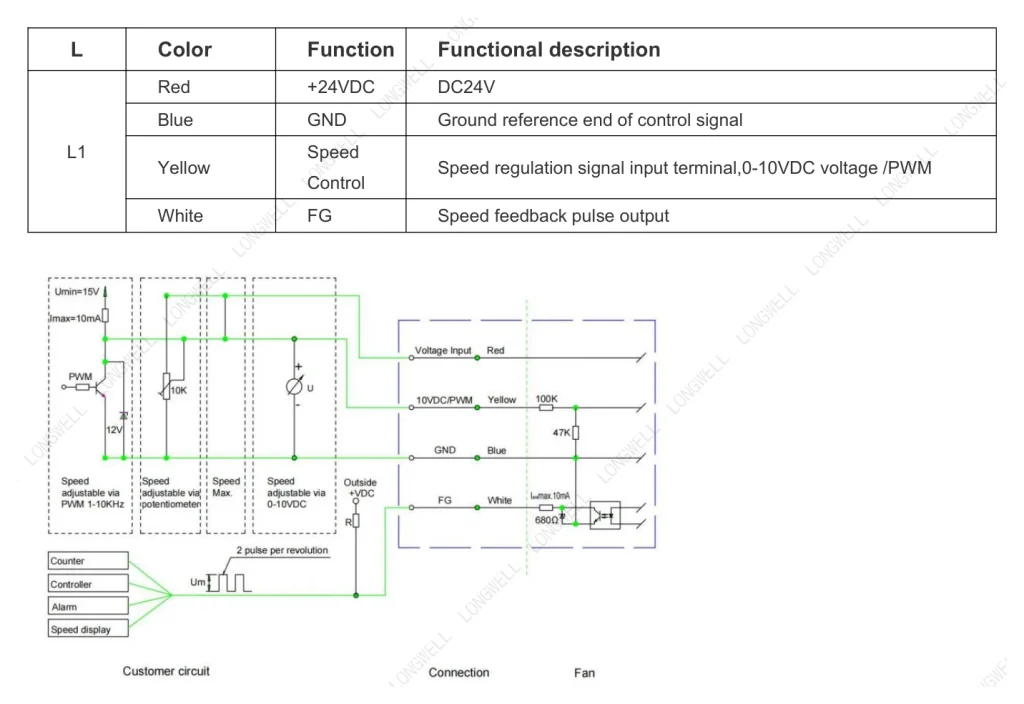

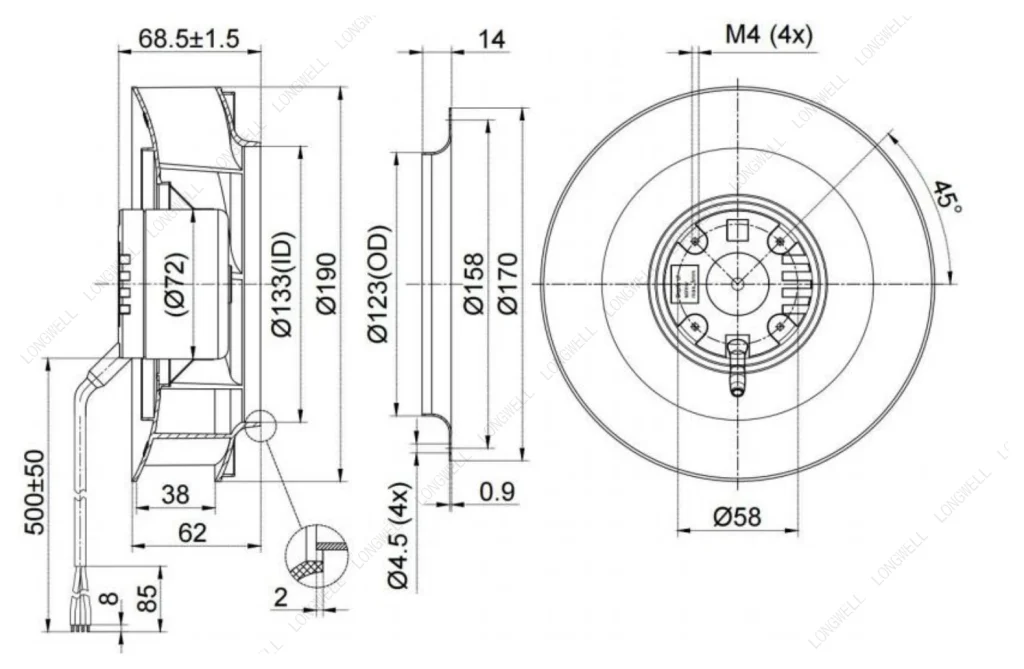

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBD3G190-072NM-04
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBD3G190-072NM-04 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø190 mm, rated 24 V DC, maximum airflow 731 m³/h, maximum static pressure 453 Pa, noise 70 dB(A), input power 75 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWBD3G190-072NM-04 |
|---|---|
| Series | LWBD3G190 |
| Motor type | DC |
| Rated voltage | 24 V |
| Current | 3.1 A |
| Input power | 75 W |
| Speed | 3,100 rpm |
| Max. airflow | 731 m³/h |
| Max. static pressure | 453 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 75℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø190 mm |
| Rotor diameter | 72 |
| Impeller material | PA6+GF ( Impeller ) Bearing ball bearings Weight APPROX 1.05 (Kg) LONGWELL ELL LON Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 9863 www.longwellfans.com |
| Protection class | IP42 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mater |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø190 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBD3G190-072NM-04 this model | 731 m³/h | 453 Pa | 3,100 rpm | 75 W | 70 dB(A) | 24 V | |
| LWBD3G190-092NH-07 | 505 m³/h | 412 Pa | 3,300 rpm | 85 W | 73 dB(A) | 48 V | View |
| LWBD3G190-092NM-06 | 505 m³/h | 412 Pa | 3,300 rpm | 85 W | 73 dB(A) | 24 V | View |
| LWBD3G190-072NH-05 | 731 m³/h | 453 Pa | 3,100 rpm | 75 W | 70 dB(A) | 48 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
