Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ250 mm
- Max airflow855 m³/h
- Max static pressure165 Pa
- Voltage230 V
- Speed1,400 rpm
- Input power50 W
- Noise68 dB(A)

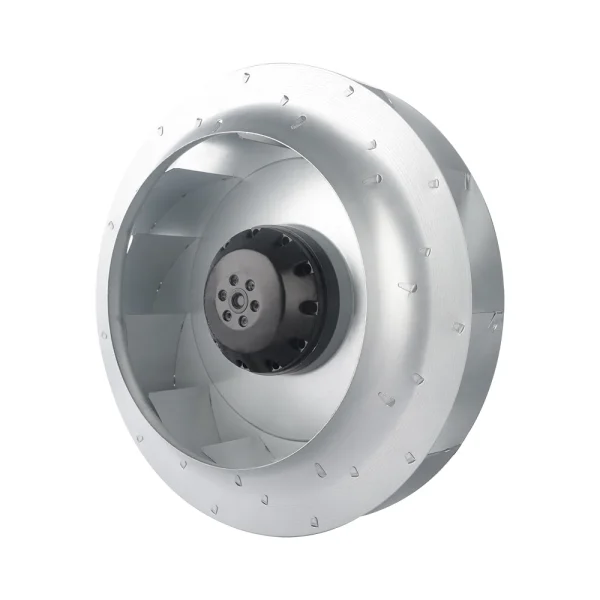

LWBA4E250-092NS-17 AC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | AC | Max airflow 855 m³/h | Max static pressure 165 Pa | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBA4E250-092NS-17
PDFDatasheet · 1.7 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4E250-092NS-17 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 230 V AC, maximum airflow 855 m³/h, maximum static pressure 165 Pa, noise 68 dB(A), input power 50 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

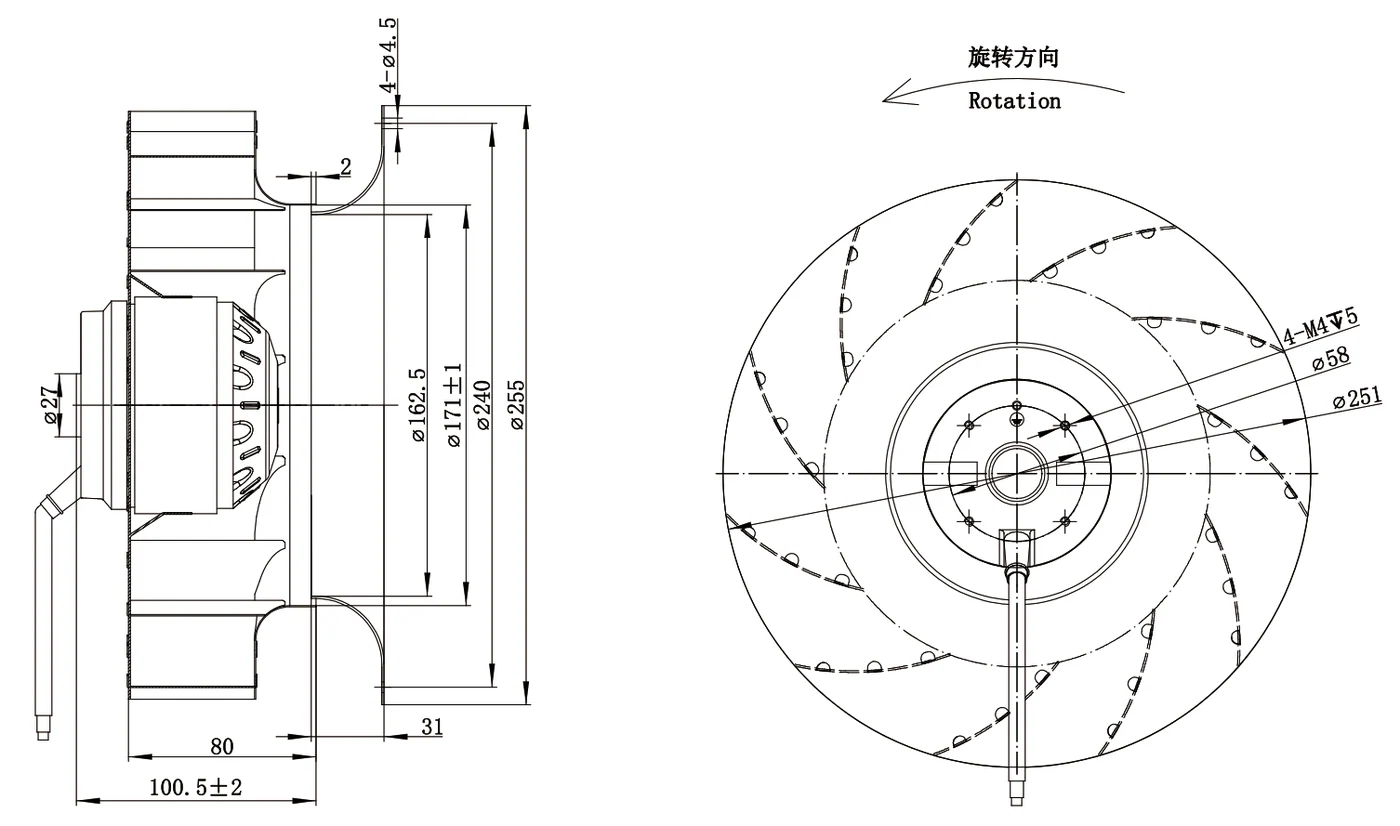

Technical data
| Model | LWBA4E250-092NS-17 |
|---|---|
| Series | LWBA4E250 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.24 A |
| Input power | 50 W |
| Speed | 1,400 rpm |
| Max. airflow | 855 m³/h |
| Max. static pressure | 165 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø250 mm |
| Rotor diameter | 92 |
| Impeller material | Galvanised sheet steel |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4E250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
